User manual for the Ikelite DS161 Substrobe and Video Light with Sync Cord, 4061.34
The user manual for the Ikelite DS161 Substrobe and Video Light with Sync Cord, 4061.34 provides
necessary instructions for the proper use of the product Photography - Underwater Photography - Strobe Lights.

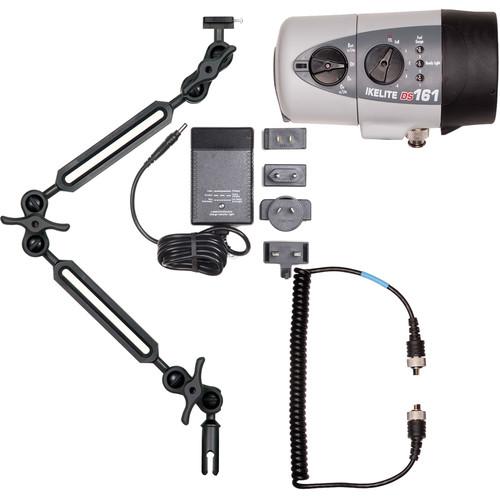

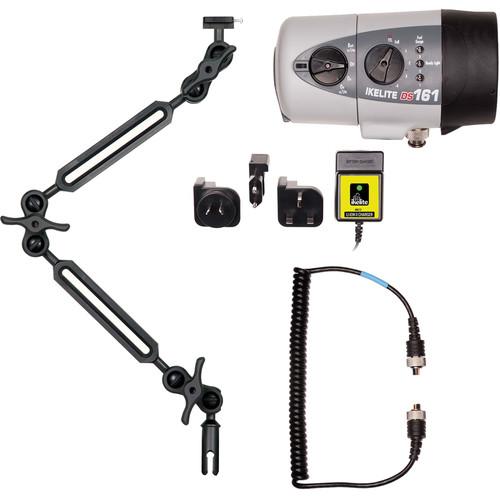

Brighten up your underwater photos of sharks, parrot fish, and coral, and bring out their naturally vibrant colors with this DS161 Strobe and Video Light with Sync Cord, 2-Section Ball Arm, Li-Ion Battery, and Charger from Ikelite. This bundle provides everything you need to connect the flash to your camera's underwater housing and position it for optimal illumination.
The TTL / manual DS161 strobe offers a depth rating of 300'. It features a built-in, 500-lumen video light, which shuts off when the flash fires to prevent hot spots. The strobe has a power rating of 160 watt-sec and guide number of 38' underwater and 76' above the surface at ISO 100. The beam has a color temperature of 4800K and a coverage angle of 90°, which is increased to 100° with the included diffuser. A round flash tube and custom-designed reflector deliver soft, even coverage. Benefit from TTL and manual exposure control, with 10 output settings and an SOS mode. A coiled TTL sync cord with two ICS-5 bulkhead connectors is included, and an optional dual sync cord enables you to add a second DS161 strobe or a different flash to your system.
The lithium-ion battery has a fast recycle time of 1.4 sec and produces over 450 full-power flashes on a single charge. This second generation of Ikelite's li-ion pack features updated cell-conditioning technology for improved performance and extended lifetime. Ikelite's quick-release toggle system makes quick, easy work of attaching the battery pack and virtually ensures that flooding will not occur. Additionally, the supplied Smart Charger runs on 100-240VAC power for worldwide use and includes adapter plugs for North America, Europe, UK, and Australia. It switches over to a trickle charge when the battery pack has reached full capacity, in order to prevent overcharging. The status of the charging cycle is indicated by an LED. This second-generation charger is compatible with first-generation batteries, but the LED charge indicator function will be disabled with these.
Ikelite's arm system for this kit consists of two 7", double-ball Mark II arm components, along with 3 ball clamps. Two of the clamps enable attachment to the supplied strobe mount and Ikelite quick-release handle mount, while the last connects the 2 arm sections together. When the entire unit is assembled, the overall length of the arm is close to 30". Optional extra arm components and clamps can be added for greater length and different lighting angles and positions. The ball mounts/joints measure 1" in diameter, and have a groove and o-ring to prevent slipping for a better hold with less force. The arm and its parts are made from aluminum that has been treated with a hard type III anodized finish for resistance to corrosion.
If you own a Ikelite strobe lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Ikelite DS161 Substrobe and Video Light with Sync Cord, 4061.34 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ikelite DS161 Substrobe and Video Light with Sync Cord, 4061.34:
| Package Weight || 5.6 lb |
| Box Dimensions (LxWxH) || 11.181 x 8.583 x 6.614" |
