User manual for the Sachtler 0770 Aluminum Tripod System with FSB 8 Head, DA 75 770

The user manual for the Sachtler 0770 Aluminum Tripod System with FSB 8 Head, DA 75 770 provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems.

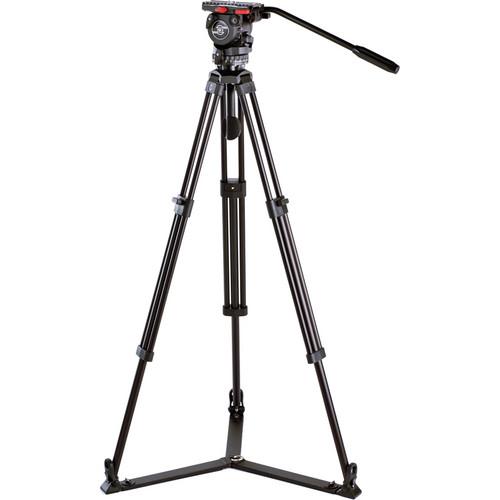

The Sachtler 0770 Aluminum Tripod System with FSB 8 Head, DA 75 L Legs & Ground Level Spreader is a complete tripod system that supports cameras and accessories weighing up to 22 pounds. It includes a Sachtler FSB 8 video head and a set of Sachtler DA 75 L aluminum tripod legs, and a ground spreader. The head features a 75mm ball base with integrated flat base, which allows you to use the head with the included bowl base tripod legs or mount it to available supports with flat base fittings. The camera plate is the sliding balance type and provides 4.7" of balance adjustment. The head features Sachtler's Side Load mechanism, which allows you to snap the camera plate into the head from the top, instead of having to line it up and slide it in from the back of the head. The head features a five-step counterbalance system with a zero setting. The pan and tilt feature independent locks and five grades of drag with a zero setting.

The legs feature a working height range of 24 to 55.5" (30.7 to 62.2" with the included head attached). Each leg is independently adjustable in height and angle, allowing you to quickly rough in your position. The included ground spreader features independent length adjustment of the spreader arms. These adjustments allow the tripod legs to work in oddly shaped spaces. The rotary leg clamps are durable and lock the leg heights quickly and securely. The included padded carry bag protects your tripod during transportation and storage.
If you own a Sachtler tripod systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sachtler 0770 Aluminum Tripod System with FSB 8 Head, DA 75 770 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sachtler 0770 Aluminum Tripod System with FSB 8 Head, DA 75 770:

Go To

Head
Load Capacity 2.2 to 22 lb / 1 to 10 kg
Head Fitting 75mm ball with integrated flat base
Counter Balance System 10 steps plus 0 setting
Quick Release/Wedge Plate Yes
Balance Plate Yes, 4.7" / 120mm Sliding Range
Tilt Drag 5 Steps plus 0
Tilt Range -75 to 90°
Tilt Lock Yes
Pan Range 360°
Pan Drag 5 Steps plus 0
Pan Lock Yes
Leveling Bubble/Illuminated Yes/Yes
Temperature Range -40 to +140°F / -40 to +60°C
Weight 4.7 lbs / 2.1 kg
Legs
Load Capacity 33 lb / 15 kg
Head Attachment Fitting 75mm bowl
Maximum Height 55.5" / 141 cm
Minimum Height 24" / 61 cm
Folded Length 32.3" / 82 cm
Weight 4.2 lb / 1.9 kg
Material of Construction Aluminum
Leg Lock Type Rotary
Independent Leg Spread Yes
Spreader Included: Ground
Optional: Mid-Level
Spiked Feet Dual Spikes
Packaging Info
Package Weight 19.1 lb
Box Dimensions (LxWxH) 42.08 x 10.0 x 9.08"
