User manual for the Samson UM1/77 Videographer Combo Pack Wireless SW87SHQ7LM5-N5
The user manual for the Samson UM1/77 Videographer Combo Pack Wireless SW87SHQ7LM5-N5 provides
necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

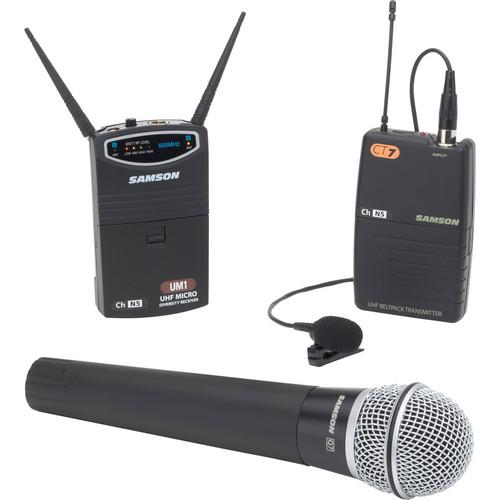

The UM1/77 Videographer Combo Pack Wireless System from Samson is designed to provide commercial videographers, and corporate and broadcast video professionals with both handheld and hands-free wireless miking options. It includes the camera-mountable UM1 wireless Micro receiver, the CT7 beltpack transmitter with an LM5 omnidirectional lavalier mic, an HT7 handheld transmitter with a Q7 supercardioid capsule, a mini-XLR to XLR cable, a 1/8" TRS cable, a stand clip, a hook-and-loop fastener mounting strip, and a foam-lined hardshell carry case. The combo pack is tuned to Samson's N5 frequency band and operates on 645.500 MHz.
The UM1 receiver features true diversity reception and has a balanced mini-XLR and an unbalanced 1/8" TRS output that can be switched between mic and line level for connecting to a variety of recording destinations. Both the CT7 beltpack transmitter and the HT7 handheld have separate on/off and mute switches in addition to variable gain control. The system operates within a 300-foot line-of-sight range and allows you to select the appropriate transmitter for a given application.
|
If you own a Samson wireless systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Samson UM1/77 Videographer Combo Pack Wireless SW87SHQ7LM5-N5 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Samson UM1/77 Videographer Combo Pack Wireless SW87SHQ7LM5-N5:
| Frequency Response | 50 Hz to 15 kHz (+/- 3 dB overall) | | Receiving Frequency | 645.500 MHz | | Squelch | Sensitivity: 17 dBμv ±4 dB | | THD | 1 % Maximum (@AF 1 kHz, RF 56 dBuv), overall | | Dimensions (W x D x H) | 2.6 x 1 x 4.25" (65.8 x 26 x 107 mm) | | Frequency Response | 50 Hz to 16 kHz | | Sensitivity | -54 dB | | Impedance | 200 Ω | | Maximum SPL | 150 dB | | Connector | 3-pin gold-plated balanced male XLR | | Dimensions (Ø x L) | 2.09 x 6.09" (53 x 180 mm) | | Weight | 13 oz (368 g) | | Frequency Response | 50 Hz to 15 kHz (± 3.5 dB) | | Current Consumption | 7 mA typical | | Battery Life | 12 hours (9 V battery) | | RF Output Power | -4 dB Minimum, 3 dB Maximum (5 mW) | | Frequency Stability | +/- 20 kHz | | Dimensions (W x D x H) | 2.6 x 0.92 x 4" (66.15 x 23.4 x 102.5 mm) | | Type | Q7 Capsule: Dynamic | | Frequency Response | Q7 Capsule: 80 Hz to 12 kHz | | Polar Pattern | Q7 Capsule: Supercardioid
LM5: Omnidirectional | | Output Impedance | Q7 Capsule: 200 Ω | | Sensitivity | Q7 Capsule: -54 dBV/Pa (2.2 mV/Pa) | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 15.7 x 11.9 x 2.7" | |
