User manual for Sennheiser ew 100-935 G3 Wireless Handheld Microphone 504264
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Sennheiser
- Basic description and contents of package
- Product classification: Pro Audio - Live Sound - Wireless Systems
- Safety instructions
- Startup and operation of the wireless systems
- Tips for setting up your Sennheiser
- Settings and expert assistance
- Contact Sennheiser service
- Troubleshooting
- Warranty information
- Price: 680 USD
|
We recommend checking out our discussion threads on the Sennheiser ew 100-935 G3 Wireless Handheld Microphone 504264,
which address similar problems with connecting and setting up Wireless Systems Sennheiser.
|
User manual for the Sennheiser ew 100-935 G3 Wireless Handheld Microphone 504264
The user manual for the Sennheiser ew 100-935 G3 Wireless Handheld Microphone 504264 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Wireless Systems.

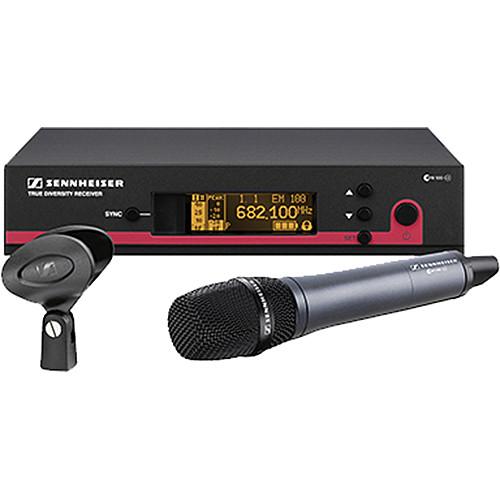

The Sennheiser ew 100-935 G3 Wireless Handheld Microphone System with e 935 Mic provides dependable performance for both speech and performance applications and includes a UHF diversity receiver and handheld transmitter. The transmitter and receiver synchronize channel and frequency at the touch of a button.
|
If you own a Sennheiser wireless systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Sennheiser ew 100-935 G3 Wireless Handheld Microphone 504264 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Sennheiser ew 100-935 G3 Wireless Handheld Microphone 504264:
| Type of System | True Diversity UHF Wireless Combo Microphone System | | RF Carrier Frequency Range | B (626 - 668 MHz) | | Signal-to-Noise Ratio | > / - 110 dBA | | # Of Channels | 1680
20 Channel Banks, 1 Fixed Bank, 12 Factory Preset Channels Each | | Type of Receiver | EM 100 Half-Rack Mountable True Diversity UHF | | Sensitivity | with HDX, peak deviation:
<2.5 μV at 52 dBA eff S/N | | Adjacent Channel Isolation | ≥ 65 dB | | Attenuation | Intermodulation attenuation: ≥ 65 dB | | Blocking | ≥ 70 dB | | Squelch | Detachable | | Outputs | 1/4" (6.3 mm) jack socket, unbalanced: +10 dBu
XLR socket, balanced: +18 dBu | | Headphone Monitoring | 1/4" Phone (Front Panel) | | Power Requirements | 12 VDC | | Battery Type/Approx. Life | Not Applicable | | Display | Back-lit LCD Display | | Antenna Connector | 2 BNC, 50 Ohm | | Dimensions | 7.48 x 8.35 x 1.69" (190 x 212 x 43 mm) | | Weight | 1.99 lb (900 g) | | Type of Transmitter | SKM 100-935 G3 | | Microphone Capsule | 935 Dynamic | | Polar Pattern | Cardioid | | Frequency Range | B (626 - 668 MHz) | | Channels | 1680 | | Presets | 12 | | Switching Bandwidth | 42 MHz | | Peak Deviation | ±48 kHz | | Compander | HDX | | Frequency Response | 80 Hz - 18 kHz | | Signal-to-Noise Ratio | >110 dB(A) | | THD | < 0.9% | | Compliance | ETS 300422 , ETS 300445 , CE , FCC | | RF Output Power | 30 mW | | SPL | 154 dB (SPL) max. | | Batteries | 1.5 V AA Batteries x2 | | Operating Time | > 8 hours | | AF Sensitivity | 2.5 mV/Pa | | Dimensions | 2 x 10.4" (50 x 265 mm) | | Weight | 15.9 oz (450 g) | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 17.795 x 15.039 x 3.228" | |
The user manual for the Sennheiser ew 100-935 G3 Wireless Handheld Microphone 504264 can be downloaded in .pdf
format if it did not come with your new wireless systems, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Sennheiser users keep a unique electronic library
for Sennheiser wireless systemss,
where you can use our link to download the user manual for the Sennheiser ew 100-935 G3 Wireless Handheld Microphone 504264.
The user manual lists all of the functions of the Sennheiser ew 100-935 G3 Wireless Handheld Microphone 504264,
all the basic and advanced features and tells you how to use the wireless systems.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Sennheiser service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Sennheiser ew 100-935 G3 Wireless Handheld Microphone 504264. User manuals are also
available on the Sennheiser website under Pro Audio - Live Sound - Wireless Systems.
