User manual Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970

Operating instructions and pdf manual for use - Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970 User manual, User manual Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970, Sony, DVW-970, 2/3-Inch, 3-CCD, Digital, Betacam, Ca


User manual for Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970

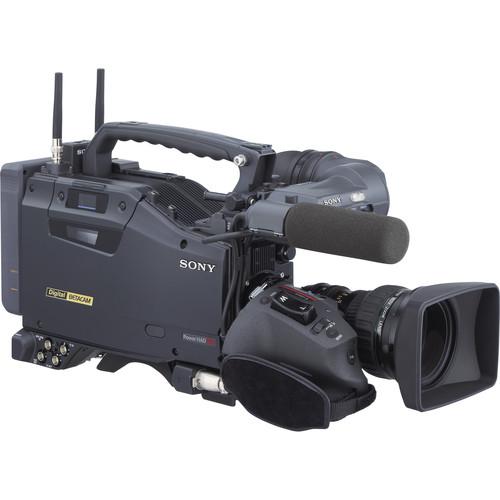

Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970
  • Manufacturer: Sony
  • Basic description and contents of package
  • Product classification: Professional Video - Broadcast Cameras
  • Safety instructions
  • Startup and operation of the broadcast cameras
  • Tips for setting up your Sony
  • Settings and expert assistance
  • Contact Sony service
  • Troubleshooting
  • Warranty information
  • Price: 44 USD
We recommend checking out our discussion threads on the Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970, which address similar problems with connecting and setting up Broadcast Cameras Sony.



User manual for the Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970

The user manual for the Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970 provides necessary instructions for the proper use of the product Professional Video - Broadcast Cameras.

The Digital Betacam format has been the high quality format for standard definition video production since its inception in 1993. The Sony DVW-970 camcorder represents the latest example of evolving technology to meet the ever-changing demands of today's production environments. At the center of this camera is the proven performance of the Power HAD EX CCD chip set. In combination with a highly precise 14-bit analog to digital conversion, it delivers high sensitivity, low noise, very low smear levels as well as a progressive scanning mode which includes 24p for film-like shooting.
If you own a Sony broadcast cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970:
Signal System NTSC
Image Device 3-CCD, 2/3-inch, Interline Transfer type
16:9 Native and 4:3 Switchable
Signal-to-Noise Ratio 65 dB
Horizontal Resolution 1000 Lines
Sensitivity f/11 @ 2000 Lux
Minimum Illumination 0.008 Lux @ f/1.4 with 48 dB Gain + Slow Shutter at 16 Frame Accumulation
Vertical Smear -145 dB
Built-in Filters Filter Wheel A
Clear, 1/4 ND (1.5 Stops),1/16 ND (4 Stops)
Filter Wheel B
CROSS, 3200K, 4300K, 6300K
LCD Monitor None
Speaker Yes
Viewfinder Optional
Microphone Yes
Scan Matching Yes
Different Ranges for Different Record Modes
Memory Card Slot Yes for Memory Stick
Shutter Speed Range 1/32 to 1/2000 Seconds
Gain Selection (-)3 dB, 0 dB, 6 dB, 9 dB, 12 dB, 18 dB,
24 db, 30dB, 36dB, 42dB, 48dB
VTR Section -
Tape Format Digital Betacam
Tape Speed 96.7 mm / second
Signal-to-Noise Ratio Not Specified by Manufacturer
Maximum Recording Time 40 Minutes with BCT-D40 Cassette
Audio Dynamic Range 85 dB or more
Audio Signal Format 16 bit / 48kHz (2 channel)
12 bit / 32kHz (4 channel)
Audio Frequency Response 20Hz to 20kHz
Signal to Noise Ratio Not Specified by Manufacturer
Input and Output Connectors SDI Video- Optional with CBK-SD01 provides BNC (x 1 output)
Composite Video- BNC (x 2 output)
Genlock- BNC (x 1 input)
Time Code- BNC (x 1 input, 1 output)
Audio- XLR (x 2 input)
Audio- 5-Pin XLR (x 1)
Remote Control- 8-Pin (x 1)
Power- 4-Pin LEMO (x 1 output for Wireless Audio)
Power- 4-Pin XLR (x 1 input for Camcorder)
Power- 2-Pin PowerTap (x 1 output for SunGun)
Headphone- Stereo Mini (x 2)
Power Requirements 12 Volts DC
Power Consumption 29 Watts Maximum
Operating Temperature 32° to 104° F
0° to 40° C
Dimensions (WxHxD) 4.8 x 7.6 x 11.1 Inches
121 x 192 x 280 mm
Weight 14.1 Lbs
6.4 kg
Packaging Info
Package Weight 15.9 lb
The user manual for the Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970 can be downloaded in .pdf format if it did not come with your new broadcast cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sony users keep a unique electronic library for Sony broadcast camerass, where you can use our link to download the user manual for the Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970.

The user manual lists all of the functions of the Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970, all the basic and advanced features and tells you how to use the broadcast cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sony service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sony DVW-970 2/3-Inch 3-CCD Digital Betacam Camcorder DVW970. User manuals are also available on the Sony website under Professional Video - Broadcast Cameras.
