User manual Sound Devices MixPre-D Compact Field Mixer MIXPRE-D

Operating instructions and pdf manual for use - Sound Devices MixPre-D Compact Field Mixer MIXPRE-D User manual, User manual Sound Devices MixPre-D Compact Field Mixer MIXPRE-D, Sound, Devices, MixPre-D, Compact, Field, Mixer, MIXPRE-D,


User manual for Sound Devices MixPre-D Compact Field Mixer MIXPRE-D

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

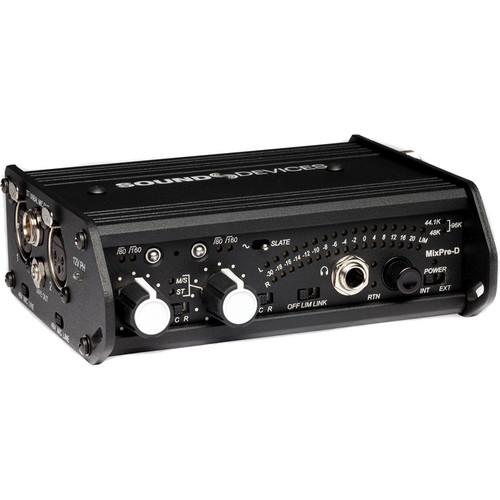

Sound Devices MixPre-D Compact Field Mixer MIXPRE-D
  • Manufacturer: Sound Devices
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Field Mixers
  • Safety instructions
  • Startup and operation of the field mixers
  • Tips for setting up your Sound Devices
  • Settings and expert assistance
  • Contact Sound Devices service
  • Troubleshooting
  • Warranty information
  • Price: 929 USD
We recommend checking out our discussion threads on the Sound Devices MixPre-D Compact Field Mixer MIXPRE-D, which address similar problems with connecting and setting up Field Mixers Sound Devices.



User manual for the Sound Devices MixPre-D Compact Field Mixer MIXPRE-D

The user manual for the Sound Devices MixPre-D Compact Field Mixer MIXPRE-D provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Field Mixers.

The MixPre-D Compact Field Mixer from Sound Devices is a versatile audio mixer built for the digital age. Based on the popular MixPre, the "D" in the name indicates the extensive digital technology that's been incorporated into the mixer. The MixPre-D features a pair of studio-grade mic/line XLR inputs with limiters, high-pass filters, and phantom power. The inputs can be linked in standard or MS mode for stereo recordings. These options are configured via easy-to-use front panel controls.

The MixPre-D puts a heavy emphasis on output, due to the increasing number of cameras and devices being used in professional productions. It offers a pair of mic/line XLR outputs, one of which can also be switched to AES digital output. There is a TA3 consumer mic level output, ideal for DSLR-type inputs, plus a 3.5mm aux output and a 1/4" headphone jack for monitoring. A 24-bit class-compliant USB streaming output is also offered, providing internet connection with Mac, Windows, Linux, and select iOS devices, plus computer audio in the MixPre-D headphones.

Other features of the MixPre-D include a sunlight viewable 16-segment GaN LED output meter with adjustable brightness, and a slate microphone and tone oscillator for labeling takes. The mixer can operate on a pair of AA batteries, or via 5-18VDC power from an external input. The extruded aluminum chassis provides excellent strength and durability while keeping weight down for portability.
If you own a Sound Devices field mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Sound Devices MixPre-D Compact Field Mixer MIXPRE-D in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Sound Devices MixPre-D Compact Field Mixer MIXPRE-DDownload user manual for Sound Devices MixPre-D Compact Field Mixer MIXPRE-D
(PDF file, 2.11 MB)
Additional parameters of the Sound Devices MixPre-D Compact Field Mixer MIXPRE-D:
Specifications
    Frequency Response 20Hz - 30kHz, +0.2, -0.5dB (Relative to 1kHz level with 150 ohm source, gain controls set at 50%)
    EIN -126dBu (-128dBV) maximum mic in to line out (150 ohm source, flat weighting, 22Hz - 22kHz bandwidth, gain control set at 50% or higher, phantom power off)
    Input Clipping Level Mic: -10dBu minimum
    Line: +28dBu minimum
    Output Clipping Level Mic: -18dBu minimum with 100 kohm load
    Line: +22dBu minimum with 100 kohm load
    Gain Mic to Line, max: 66dB
    Line to Line, max: 26dB
    Line to Mic, max: -14dB
    Mic to Mic, max: 26dB
    Mic (TA3) relative to Line out: -36dB
    Dynamic Range 110dB minimum, mic input to line output
    THD + Noise 0.05% maximum (from 50Hz to 22kHz @ +4dBu output level)
    CMRR 100dB minimum at 80Hz, 60dB minimum at 10kHz
    Connectors 2 x Transformer-Balanced XLR Mic/Line Inputs
    2 x XLR Mic/Line (1 AES) Outputs
    1 x 3.5mm Tape Return
    1 x 3.5mm Tape Out
    1 x TA3 Male Mic Output
    1 x 1/4" Headphone Jack 1 x USB Port
    1 x DC Power Input
    Input Impedance Mic: 2 kohms
    Line: 16 kohms
    Output Impedance XLR Mic/Line: 100 ohms
    XLR-AES3: 110 ohms
    TA3: 200 ohms
    3.5mm: 2.1 kohms
    USB USB class-compliant device, analog input to USB output, USB monitoring in headphones
    103dB typical, A-weighted; sample rate selectable 44.1, 48, or 96kHz
    Output Noise -100dBu (-102dBV) maximum (22Hz - 22kHz bandwidth, flat filter)
    High-Pass Filter 80 or 160Hz (switch selectable), 6dB per octave
    Phantom Power 12V through 680 ohm resistors or 48V through 6.8 kohm resistors (switch selectable)
    Limiter Threshold adjustable, +8dBu to +18dBu, 20:1 limiting ratio, 1mS attack time, 200mS release time
    Metering 16 segment x 2 GaN (Gallium Nitride) meters, peak + VU responding, adjustable brightness
    Power Internal: 2 x AA alkaline batteries, 4 hours life typical, no phantom power
    External: 5-18VDC via 4-pin Hirose, pin 4 = positive, pin 1 = negative, completely isolated floating supply
    Environmental Operating Temp: -4 to 140°F (-20 to 60°C)
    Storage Temp: -40 to 185°F (-40 to 85°C)
    Relative Humidity: 0 to 95%, non-condensing
    Dimensions (HxWxD) 1.7 x 3.7 x 5.5" (43 x 94 x 140mm)
    Weight 1.5 lbs (0.7kg) (with batteries)
    Packaging Info
    Package Weight 2.45 lb
    Box Dimensions (LxWxH) 10.7 x 7.3 x 4.9"
    The user manual for the Sound Devices MixPre-D Compact Field Mixer MIXPRE-D can be downloaded in .pdf format if it did not come with your new field mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Sound Devices users keep a unique electronic library for Sound Devices field mixerss, where you can use our link to download the user manual for the Sound Devices MixPre-D Compact Field Mixer MIXPRE-D.

    The user manual lists all of the functions of the Sound Devices MixPre-D Compact Field Mixer MIXPRE-D, all the basic and advanced features and tells you how to use the field mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Sound Devices service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Sound Devices MixPre-D Compact Field Mixer MIXPRE-D. User manuals are also available on the Sound Devices website under Pro Audio - Location Sound - Field Mixers.
