User manual for the Telex BTR-800 2-Channel UHF Base Station F.01U.145.783

The user manual for the Telex BTR-800 2-Channel UHF Base Station F.01U.145.783 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Base Stations.

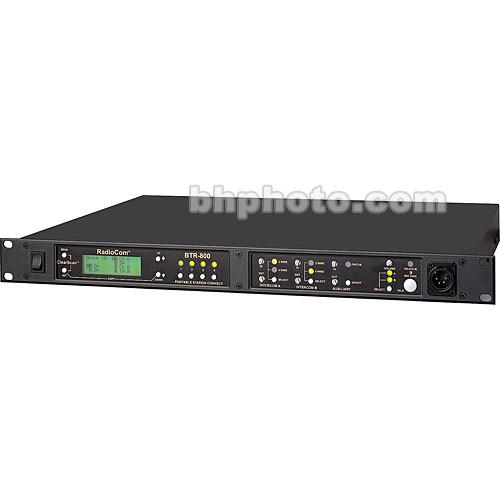

The Telex BTR-800 is a 2-channel, frequency-agile UHF wireless intercom Base Station, with channel access from each of four full-duplex beltpacks, stage announce output with relay closure, wireless talk around (ISO), the patented Enhanced ClearScan channel search feature, and a talk/listen headset station at the base.

The BTR-800 features a transparent graphical user interface and a backlit display, with advanced technology functions such as combination tone code/RF noise squelch and DSP digital audio processing.

This unit has an A4M Telex headset jack and works on B4: 536-554MHz Transmit/668-686MHz Receive frequencies.
If you own a Telex base stations and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Telex BTR-800 2-Channel UHF Base Station F.01U.145.783 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Telex BTR-800 2-Channel UHF Base Station F.01U.145.783:
General System
System Modulation FM
Frequency Range B4: 536-554MHz Transmit/668-686MHz Receive
Operating Range Up to 1000' (Line of Sight)
Tuning 0.005%, Synthesized IFs
Power 100-240VAC, 50/60Hz, IEC Receptacle
Battery Life Not Applicable
Charging Time Not Applicable
FCC License Part 74
License Required
Transmitter
Output 100mW Max
Deviation 40kHz
Modular Distortion <1% @ Full Deviation
Receiver
Sensitivity < 0.8uV for 12dB SINAD
IF Bandwidth Not Specified by Manufacturer
Image Rejection > 70dB
Controls and Indicators Front Panel:
1 x Power Switch
2 x Menu and Set Buttons
2 x Up and Down Buttons
4 x Portable Station Enable/Disable Buttons
3 x 2-Wire, 4-Wire, Select Wired Intercom Control LED Buttons
2 x Intercom In/Out Switches
2 x Auxiliary Interface Enable LED Buttons
2 x Auxiliary In/Out Switches
1 x Headset Volume Control
1 x Headset Microphone Gain Control
1 x Talk Button
1 x Backlit LCD Display
1 x Talk/Overmod LED Indicator
4 x Portable Station Status LED Indicators
Rear Panel:
1 x Transmit Power High/Norm Switch
1 x Transmit On/Off Switch
1 x 3-way Telex, RTS, Clear-Com I/C Select Switch
Connectors Front Panel:
1 x A4M Telex
Rear Panel:
2 x Female Color-Coded TNC Transmit/Receive Connectors
2 x Male/Female 3-pin XLR 2-Wire Intercom Connectors
1 x RJ-11 Base Station Link Jack
2 x Male/Female 3-pin XLR Auxiliary Audio I/O Connectors
1 x 3-pin XLR Male Stage Announce Out
1 x IEC Power Receptacle
Antenna 2 x 1/2 Wave, TNC Connector
Dimensions 19 x 1.7 x 14" (483 x 44 x 356mm)
Weight 7.2 lbs (3.2kg)
The user manual for the Telex BTR-800 2-Channel UHF Base Station F.01U.145.783 can be downloaded in .pdf format if it did not come with your new base stations, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Telex users keep a unique electronic library for Telex base stationss, where you can use our link to download the user manual for the Telex BTR-800 2-Channel UHF Base Station F.01U.145.783.

The user manual lists all of the functions of the Telex BTR-800 2-Channel UHF Base Station F.01U.145.783, all the basic and advanced features and tells you how to use the base stations. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Telex service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Telex BTR-800 2-Channel UHF Base Station F.01U.145.783. User manuals are also available on the Telex website under Pro Audio - Location Sound - Base Stations.
