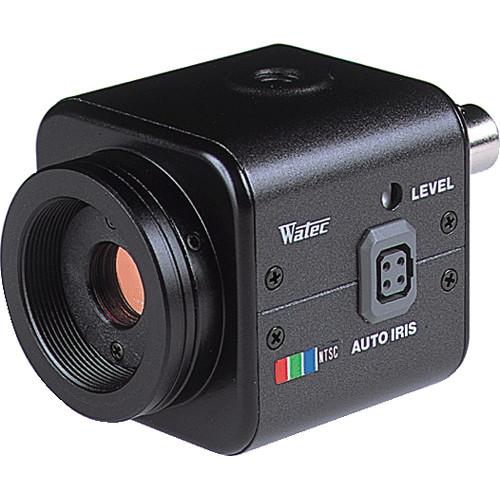

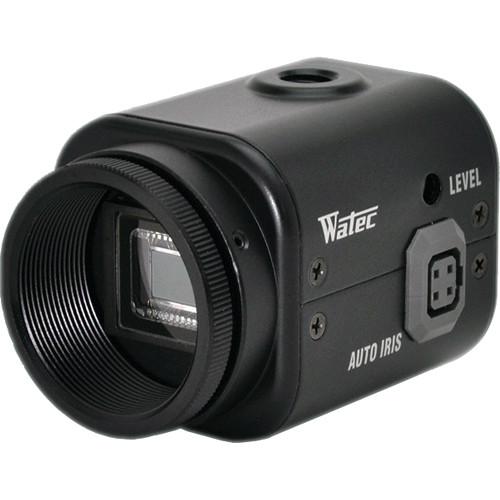

Watec W-01CDB3-3 1/3" CS-Mount 3rd Generation W-01CDB3-3 ... Watec WAT-221S2 Color Camera (NTSC) WAT-221S2 NTSC The WAT-221S2 Color Camera from Watec features a 1/2" interline transfer CCD image sensor which allows it to capture videos of up to 550 TVL. The camera supports an OSD menu for full access to all features and functions. The compa... Watec AD603 230VDC Power Supply for PAL/CCIR Camera TAD603230VDC The Watec AD603 230VDC Power Supply is used to power the PAL/CCIR versions of the Watec 230A, 230J, 240R, 205A, 207A, 220, 230CD, and 240RFA cameras.... Watec WAT-01U2 1/2.8" Miniature Color USB CMOS WAT-01U2 Watec's WAT-01U2 1/2.8" Miniature Color USB CMOS Camera is a 5 MP color camera with a CS mount that captures video up to 1920 x 1080p 30 fps. Small in size, it is suitable for medical, machine visions, industrial, interview r... Watec WAT-704R Monochrome Camera with 3.8mm Fixed AT704RP37EIA The WAT-704R Monochrome Camera from Watec features a 1/4" interline transfer CCD image sensor and a 3.8mm fixed pinhole lens. Thanks to the included lens, this camera supports horizontal resolution of over 380 TVL and can operate ... Watec 910HX 1/2" 570 TVL Wide Dynamic Range WAT-910HX-CCIR The Watec 910HX 1/2" 570 TVL Wide Dynamic Range Camera (CCIR) from Watec is a low-light B&W camera. At a standard 0.0001 lux and 0.000005 lux (integrated frame technology), this camera is designed to adjust frame loss com... Watec VIVID Series WAT-240W Water-Resistant CCD T240WG38NTSC The Watec VIVID Series WAT-240W Water-Resistant CCD Camera (NTSC) features a 1/4" CCD image sensor and 3.8mm fixed glass lens for capturing clear images at a maximum resolution of 450 TVL. It can record footage even under min... Watec AD502A 220VAC Power Supply for PAL/CCIR WAT-502A 220VDC The AD502A 220VAC Power Supply from Watec is designed specifically for PAL/CCIR models of the 502B, 660D, 660MD, 704R, and 704RFA cameras. It draws 220VAC, 50 Hz of power and outputs 9VDC, 150 mA to the camera.... Watec AD156 15VDC Power Supply with Tajimi AD156WTAJIMI The AD156 15VDC Power Supply from Watec is designed specifically to power the 204CX, 200D, and 200DW cameras. The Tajimi connector connects to the 200RX coaxial transmission box.... Watec AD156 15VDC Power Supply with Male DC WAD156120VDC The AD156 15VDC Power Supply from Watec is designed specifically to power the 204CX, 200D, and 200DW cameras. The male DC connector connects to the 200RX coaxial transmission box.... Watec CS-Mount 5-60mm f/1.6-Close Manual Iris ATTV12X0516M The Senko/ADL CS-Mount 5-60mm f/1.6-Close Manual Iris Varifocal Zoom Lens from Watec is suitable for cameras with 1/3" and smaller sensors. The lens has an iris range of F1.6-close that can be adjusted manually.... Watec WAT-660MDWB 380 TVL Monochrome Dome Camera AT660MDWBEIA The WAT-660MDWB 380 TVL Monochrome Dome Camera (NTSC) from Watec comes with a 3.8mm fixed lens and features a 1/4" CCD image sensor that captures B&W images at 380 TVL resolution. The camera can capture clear images at a minimum i... Watec WAT-230 VIVID CS-Mount 450 TVL Color Camera VIVIDG29NTSC The WAT-230 VIVID CS-Mount 450 TVL Color Camera with 2.9mm Lens (NTSC) from Watec incorporates a 1/4" interline transfer CCD image sensor that captures clear images in 450 TVL resolution. With a signal to noise ratio of more ... Watec WAT-233 High-Resolution WDR Day/Night Indoor WAT233NTSC The Watec WAT-233 High-Resolution WDR Day/Night Indoor Camera features a 1/3" CCD image sensor and provides true day/night images in a resolution of 650 TVL with optimal color in daylight and high sensitivity in the dark. The... Watec WAT-910NC 570 TVL IP Camera WAT910NC The WAT-910NC IP Camera from Watec features a 1/2" interline transfer CCD image sensor which allows it to capture images at resolution of 570 TVL. Th does not include a lens, but accepts CS mountable lenses. WAT-910NC can operate ... Watec WAT-910HX/RC 570TVL Camera WAT910HXRC The WAT-910HX/RC 570TVL Camera from Watec operates on standard illumination of 0.0001 lux and 0.000005 lux (integrated frame technology). It is designed to adjust frame loss compensation based on the lighting conditions of your en... Watec WAT-910HX/BD 570TV Monochrome Ultra Low Light WAT910HXBD Designed for discreet placement, Watec's WAT-910HX/BD 570TV Monochrome Ultra Low Light Camera features a minimum illumination of a mere 0.0000025 lux for exceptional low-light capabilities, and a 1.7x1.7x 0.9" bare-board layout th... Watec WAT-902H2 CCIR Ultimate 1/2" 902H2 ULTIMATE CCIR The PAL-signal WAT-902H2 CCIR Ultimate 1/2" Compact B/W Camera from Watec is a lightweight and compact, CCTV camera that is highly sensitive and can operate in very low-light conditions, nearing the IR range, with a minimum illumi... Watec 2000 HD Zoom Camera (NTSC) 2000 The Watec WAT-2000 HD Zoom Camera is an “all-in-one” HD zoom camera that provides you with control access to all features via RS232. This camera has optical zoom capabilities of x10 and digital at x12 and provides you ... Watec 230VIVID P3.7 1.25" (31.75mm) 450 TVL 230VIVID P3.7 The Watec 230VIVID P3.7 1.25” (31.75mm) 450 TVL Board Camera (NTSC) is a fully adjustable color enclosed board camera that captures high resolution images and is designed to be used in nearly any application of your choice. ...
