User manual for the Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker DSR115

The user manual for the Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker DSR115 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

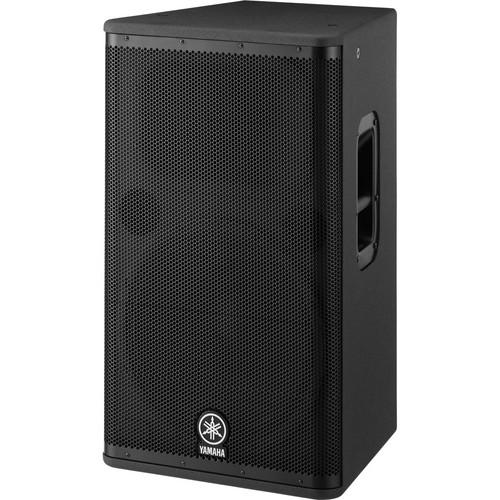

The DSR115 from Yamaha is a professional-quality 2-way active loudspeaker, ideal for sound reinforcement applications. The rugged cabinet houses a 15" woofer and a 2" titanium compression tweeter, both of which have neodymium magnets for maximum efficiency and low weight. Exclusive LTBD (Long Throw, Broad Dispersion) constant directivity waveguides provide a wide coverage pattern to reach a broad audience. Internal Class-D amplifiers provide 1300W of output power for a strong, distortion-free performance. XLR and 1/4" inputs let you connect a variety of mic or line level sound sources, while an XLR output lets you daisy-chain additional speakers.

Onboard DSP includes FIR-X tuning for smooth crossover transitions and 24-bit AD/DA converters for maximum dynamic range. D-CONTOUR processing provides consistent clarity and high and low output levels. Extensive protection circuitry prevents damage from DC faults, clipping, overheating, and over voltage. The speaker has a standard 35mm pole socket for mounting, as well as M10 rigging points for suspended installation. Integrated carrying handles provide easy transport.
If you own a Yamaha pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker DSR115 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker DSR115:
Active or Passive Active
Frequency Response 45Hz - 20kHz (-10dB)
55Hz - 18kHz (-3dB)
Amplifier Class-D, 1300W Total (850W LF, 450W HF)
Maximum Sound Pressure Level (SPL) 136dB
Input Sensitivity 0dBu (Line, Max)
+7dBu (Line, Center)
-25dBu (Mic, Max)
Input Level +24dBu (Line)
-11dBu (Mic)
Input Impedance 12 kOhms (Line)
8 kOhms (Mic)
Crossover 1.7kHz, FIR-X Tuning (Linear Phase FIR Filter)
Low Frequency Driver 15" Neodymium Cone Woofer with 3" Voice Coil
High Frequency Driver 2" Titanium Diaphragm Compression Tweeter with Neodymium Magnet
Coverage 90° Horizontal, 60° Vertical
Enclosure Material Cabinet Material: Not Specified by Manufacturer
Finish: LINE-X Black Finish
Grille: 16-Gauge Matte Black Powder Coated Perforated Steel
Connectors 1 x XLR Input
1 x 1/4" Input
1 x XLR Thru Output
1 x Locking AC Power Input
Controls 1 x Level Control
1 x Line/Mic Switch
1 x HPF Switch
1 x D-CONTOUR Switch
1 x Front LED Disable Switch
1 x Power Switch
Indicators 1 x Red Peak LED
1 x Red Limit LED
1 x Red Protection LED
1 x Green Power LED
1 x White Front LED
1 x Orange HPF LED
1 x Orange D-CONTOUR LED
Filters High-Pass Filter, 120Hz (-6dB) 24dB/Oct
D-CONTOUR (Dynamic CONTOUR) Boost
Protection Power Switch On/Off Mute
DC-Fault
Output Limit
Clip Limit
Overheating
Overcurrent
Over Voltage
Power PFC Switching Mode Power Supply
Consumption 100W (1/8 Power)
Cooling Natural Convection
Mounting 1 x Standard 35mm Pole Socket (Bottom)
3 x M10 Rigging Points (Top L/R, Bottom Rear)
2 x Metal Handles (L/R)
Dimensions (WxHxD) 17.5 x 29.75 x 16.5" (442 x 755 x 423mm)
Weight 62 lbs (28kg)
Packaging Info
Package Weight 74.45 lb
Box Dimensions (LxWxH) 35.0 x 21.0 x 21.0"
The user manual for the Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker DSR115 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Yamaha users keep a unique electronic library for Yamaha pa speakerss, where you can use our link to download the user manual for the Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker DSR115.

The user manual lists all of the functions of the Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker DSR115, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Yamaha service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Yamaha DSR115 15" 1300W Active 2-Way Loudspeaker DSR115. User manuals are also available on the Yamaha website under Pro Audio - Live Sound - PA Speakers.
