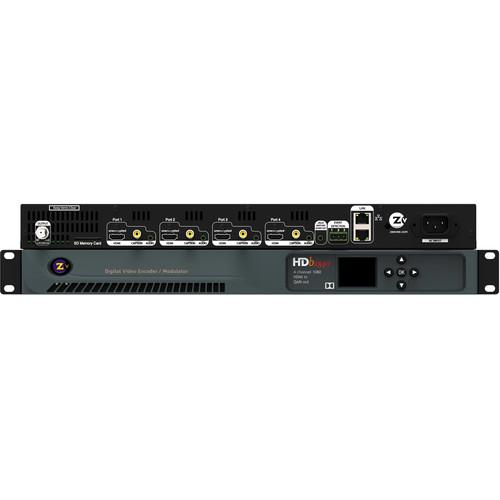

The HDb2840 Digital Video Encoder/Modulator from ZeeVee is a 4-channel HD modulator with unencrypted HDMI inputs. You can save an MPEG-2 video file to the 300MB internal memory, and use it as an additional 5th channel. This unit distributes HD video throughout your facility, while using existing coaxial cables. It is HDTV compatible, The LCD front panel provides device status of IP address, data rate encoding, configured RF and digital channels. The Maestro software allows you to configure and entire headend quickly, view status and configurations, apply a value to all channels with a few clicks, and create your channel plan on one page. This unit also features an Emergency Alert System (EAS) capability.
If you own a ZeeVee rf equipment and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ZeeVee HDb2840 Digital Video Encoder/Modulator HDB 2840 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ZeeVee HDb2840 Digital Video Encoder/Modulator HDB 2840:
Specifications
    Connectors 1 x Coax output
    4 x HDMI input
    4 x 3.5 mm phone jack, composite video input (for TeleText only)
    4 x 3.5 mm phone jack, HDb2840 analog audio input
    1 x 3.5 mm phone jack, delay matched analog audio output
    1 x 3-position emergency alert system input
    2 x RJ-45 10/100 LAN port
    1 x AC power input
    Indicators and Controls 1 x Color display
    5 x Selection buttons
    HDMI Video Input 4 ports per model
    Closed Caption EIA/CEA-608 captions accepted over composite video input

    (-NA versions only)

    Internal Memory MPEG-2 Program Stream file, up to 300 Mb
    Analog Audio Input 75 Ω, 0 to 0.7 V at Line-level output
    Digital Audio Digital as element of HDMI 1.3 port
    Audio Encoding Internally encoded into Dolby Digital AC-3 or MPEG1 Layer 2 (varies by region)
    Encoder Video Profile MPEG2 HD Profile 2: ISO13818-2 MP @ HL
    Traffic Shaping Variable Bit Rate
    Video Transport Bit Rate Variable, 10 Mbps - 24 Mbps per channel
    Encoding Data Rates Variable, 10 Mbs to 24 Mbs per channel
    Average Encoding Data Rate 18 Mbs per channel
    Encoding Latency Programmable 100 msec to 400 msec
    Color Profile 4:2:0
    GOP Size 24
    Video, Audio PID Programmable
    Program Information Programmable
    Encoder Audio Profile ATSC A/52, Dolby(r) Digital (AC-3) or Mpeg 2 layer 1 (varies by region)
    Modulation Type QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only OR DVB-C
    QAM 256 (ITU-T J83 Annex A) (varies by region)
    Cable Standard HRC, IRC or STD or user defined (varies by region)
    Frequency Range 54 to 864 MHz
    2 kHz resolution
    ± 30 ppm accuracy
    ± 35 ppm stability
    Output Power +45 dBmV typical
    Output Level Adjustment 25 to 45 dBmV in 1 dBmV steps
    MER > 38 dB typical
    I/Q Amplitude Imablance < 1% typical
    Spectral Tilt <= 1 dB over 6 MHz typical
    Network Interface 10/100 mb Ethernet via RJ45 connection
    IP address via DHCP or set by user
    HTML/Javascript served web interface for easy configuration
    Telnet connection for CLI scripting
    Easy firmware updates
    All settings saved in NV storage
    Front Panel Color Display Quickly obtain status at a glance
    Power 100 to 240 VAC, 50/60 Hz
    Power Consumption 60 W maximum, 30 W Typical
    Cooling Dual Internal cooling fans, front inlet, rear exhaust
    Enclosure Metal
    Vibration NSTA 1A in carton
    MTBF 45,000 hours
    Compliance FCC Class A, IEC60065, EN61000, CE, RoHS, RCM C-Tick
    Temperature & Humidity 32 to 113&DegF (0 to 45°C), 10% to 80%, non-condensing
    Dimensions (H x W x D) 1.72 x 17.3 x 9.9" (43.6 x 440.2 x 251.5 mm)
    Weight 6.25 lb (2.84 kg)
    Packaging Info
    Package Weight 8.6 lb
    Box Dimensions (LxWxH) 21.1 x 12.4 x 4.9"
    The user manual for the ZeeVee HDb2840 Digital Video Encoder/Modulator HDB 2840 can be downloaded in .pdf format if it did not come with your new rf equipment, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ZeeVee users keep a unique electronic library for ZeeVee rf equipments, where you can use our link to download the user manual for the ZeeVee HDb2840 Digital Video Encoder/Modulator HDB 2840.
