User manual ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A

Operating instructions and pdf manual for use - ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A User manual, User manual ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A, ACTi, E46A, 3MP, IP, Bullet, Camera, with, Superior,


User manual for ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A

ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A
  • Manufacturer: ACTi
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your ACTi
  • Settings and expert assistance
  • Contact ACTi service
  • Troubleshooting
  • Warranty information
  • Price: 549 USD
We recommend checking out our discussion threads on the ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A, which address similar problems with connecting and setting up Wired IP Cameras ACTi.



User manual for the ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A

The user manual for the ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

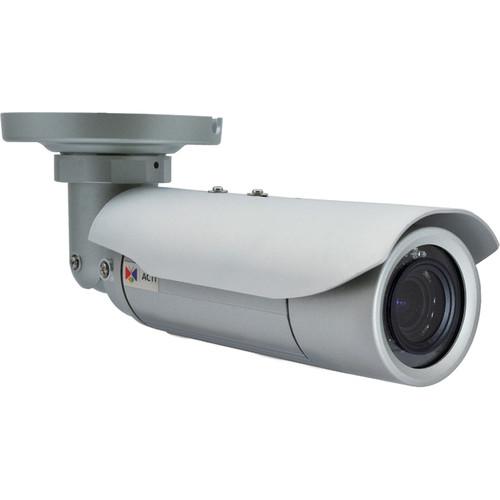

The E46A 3MP IP Bullet Camera with Superior WDR, Audio Support and 2.8 to 12mm Varifocal Lens from ACTi features a 3MP sensor and is capable of recording videos with resolutions up to 1920 x 1080 at 30 fps. It is capable of recording in color in environments with illumination levels as low as 0.1 lux.
If you own a ACTi wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A:
Specifications
    Image Sensor Progressive scan CMOS
    Sensor Size 1/3"
    Minimum Illumination Color: 0.1 lux at F1.4 (30 IRE, 2,400 K); B/W: 0 lux (IR LED On)
    Color to B/W switch ISP-based switch, configurable
    IR Sensitivity Range 700 to 1,100 nm
    IR LED 15 x IR LED (850 nm)
    IR Working Distance 49.2' (15.0 m) @ 0 lux, 30 IRE, maximum exposure gain
    Electronic Shutter 1/5 to 1/2,000 sec (manual mode); 1/5 to 1/10,000 sec (auto mode)
    Lens
    Focal Length / Aperture Varifocal, 2.8 to 12 mm / F/1.4
    Iris Fixed
    Focus Manual
    Mount Type Board
    Horizontal Viewing Angle 70.5 to 28.8˚
    Video
    Compression H.264 HP, MJPEG
    Maximum Frame Rate vs. Resolution 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
    Multi-Streaming Simultaneous dual steams based on 2 configurations
    Bit Rate 28 kb/s to 6 Mb/s (per stream)
    Bit Rate Mode Constant, variable
    Image Enhancement Superior WDR (107 dB); White Balance: Automatic, hold, and manual; Brightness; Contrast; Sharpness (auto); Auto Gain Control; Digital Noise Reduction; Flickerless
    Privacy Mask Type 4 configurable regions
    Text Overlay User defined text on video
    Image Orientation Image flip and mirror
    Network
    Protocol TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
    Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
    Security IP address filtering; HTTPS encryption; password protected user levels; anonymous login; IEEE 802.1X network access control
    Alarm
    Alarm Triggers Video Motion Detection (3 regions)
    Alarm Response Notify control center; change camera settings; command other devices; e-mail notification with snapshots; upload video, snapshot to FTP server
    Integration
    Unified Solution Fully compatible with ACTi software
    ISV Integration ONVIF compliant
    Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality)
    General
    Power Source and Consumption PoE Class 2 (IEEE802.3af) / 4.8 W (IR On)
    Environmental Casing Weatherproof (IP66-rated); Vandal proof metal casing (IK10)
    Mount Type Wall, ceiling , gang box
    Starting Temperature -4 to 122°F (-20 to 50°C)
    Operating Temperature -40 to 122°F (-40 to 50°C)
    Operating Humidity 10 to 85% RH
    Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66, NEMA 4X, IK10 (metal casing)
    Dimensions (Ø x L) 2.60 x 11.50" (66.00 x 291.00 mm)
    Weight 1.44 lb (0.65 kg)
    Packaging Info
    Package Weight 3.2 lb
    Box Dimensions (LxWxH) 12.4 x 7.6 x 5.1"
    The user manual for the ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ACTi users keep a unique electronic library for ACTi wired ip camerass, where you can use our link to download the user manual for the ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A.

    The user manual lists all of the functions of the ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ACTi service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ACTi E46A 3MP IP Bullet Camera with Superior WDR, Audio E46A. User manuals are also available on the ACTi website under Surveillance - Surveillance Video - Wired IP Cameras.
