User manual ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68

Operating instructions and pdf manual for use - ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68 User manual, User manual ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68, ACTi, E68, 1.3MP, Day/Night, Indoor, IP, Dom


User manual for ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68

ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68
  • Manufacturer: ACTi
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your ACTi
  • Settings and expert assistance
  • Contact ACTi service
  • Troubleshooting
  • Warranty information
  • Price: 465 USD
We recommend checking out our discussion threads on the ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68, which address similar problems with connecting and setting up Wired IP Cameras ACTi.



User manual for the ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68

The user manual for the ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

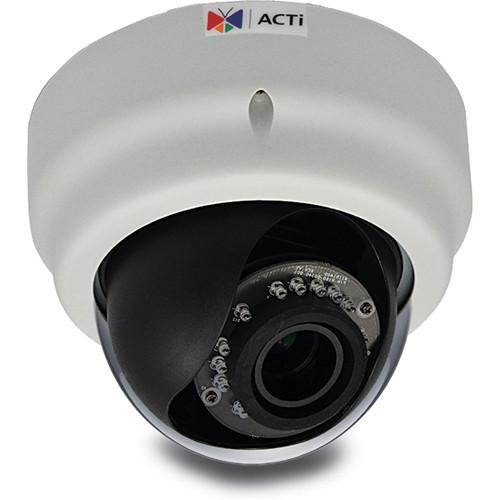

The E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive IR, SLLS, & 2.8 to 12mm Varifocal Lens from ACTi is capable of recording images up to 1280 x 960 at 30 fps. It uses H.264 HP, MJPEG compression formats for storing images. This camera supports 2-way audio communication. The Superior Low Light Sensitivity (SLLS) feature allows recording in color with illumination levels as low as 0.1 lux. When the illumination levels go below 0.1 lux, the camera switches to the night mode and records in B&W.
If you own a ACTi wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68:
Specifications
    Camera
    Type Indoor Dome
    Image Sensor 1/3" Progressive Scan CMOS
    Minimum Illumination Color: 0.1 lux at F1.4 (30 IRE, 2400 K); B/W: 0 lux (IR LED on)
    IR Sensitivity Range 700 to 1100 nm
    IR LED 15 x IR LED (850 nm)
    IR Working Distance 49.2' (15.0 m) (0 lux, 30 IRE, Gain 255, Auto shutter mode)
    Electronic Shutter Manual: 1/5 to 1/2,000 sec
    Auto: 1/5 to 1/10,000 sec
    Lens
    Focal Length / Aperture Varifocal, f2.8 to 12 mm / F1.4
    Iris Fixed
    Focus Manual focus
    Lens Mount Board mount
    Horizontal Viewing Angle 31.1 to 83°
    Viewing Angle Adjustment Pan: 0 to 350°
    Tilt: 17 to 163°
    Rotate: 0 to 350°
    Video
    Compression H.264 HP, MJPEG
    Resolutions & Frame Rates 60 fps at 1280 x 720; 30 fps at 1280 x 960 & 640 x 480; 15 fps at 320 x 240
    Multi-Streaming Simultaneous dual streams based on two configurations
    Bit Rate 28 kb/s to 6 Mb/s (per stream)
    Bit Rate Mode Constant, Variable
    Image Enhancement Basic WDR (83.5 dB), White Balance (automatic, hold, and manual), Brightness, Contrast, Sharpness (auto), Auto Gain Control, Digital Noise Reduction, Flickerless
    Privacy Masking 4 configurable regions
    Text Overlay User defined text on video
    Image Orientation Image flip and mirror
    Audio
    Compression 8 kHz, Mono, PCM, 16 bit encoding, G.711
    Audio Input & Output Terminal block
    Network
    Protocol TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
    Ethernet Ports 1 x Ethernet (10/100 Base-T), RJ45 connector
    Security IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control
    Alarm
    Triggers Video motion detection (3 regions)
    Response Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP server
    Interface
    Digital Input 1 x terminal block
    Digital Output 1 x terminal block
    Local Storage microSDHC/SDXC memory card slot

    Memory card not included.

    Integration
    Unified Solution Fully compatible with ACTi software
    ISV Integration Software Development Kit (SDK) available, ONVIF compliant
    Firmware Access Browser Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with QuickTime installed (partial functionality)
    General
    Power Source PoE Class 2 (IEEE802.3af)
    Power Consumption 6.05 W
    Environmental Casing Vandal resistant (IK09), transparent dome cover
    Mount Type Surface, pendant, wall, corner, pole, flush, gang box
    Temperature Starting/Operating: 14 to 122°F (-10 to 50°C)
    Operating Humidity 10 to 85% RH
    Approvals CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); IK09
    Dimensions (Ø x H) 5.75 x 4.50" (14.60 x 11.40 cm)
    Weight 1.2 lb (0.5 kg)
    The user manual for the ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ACTi users keep a unique electronic library for ACTi wired ip camerass, where you can use our link to download the user manual for the ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68.

    The user manual lists all of the functions of the ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ACTi service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ACTi E68 1.3MP Day/Night Indoor IP Dome Camera with Adaptive E68. User manuals are also available on the ACTi website under Surveillance - Surveillance Video - Wired IP Cameras.
