AJA CION 4K/UHD and 2K/HD Production Camera CION-R0
  • Manufacturer: AJA
  • Basic description and contents of package
  • Product classification: Professional Video - Digital Cine Cameras
  • Safety instructions
  • Startup and operation of the digital cine cameras
  • Tips for setting up your AJA
  • Settings and expert assistance
  • Contact AJA service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the AJA CION 4K/UHD and 2K/HD Production Camera CION-R0, which address similar problems with connecting and setting up Digital Cine Cameras AJA.



User manual for the AJA CION 4K/UHD and 2K/HD Production Camera CION-R0

The user manual for the AJA CION 4K/UHD and 2K/HD Production Camera CION-R0 provides necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

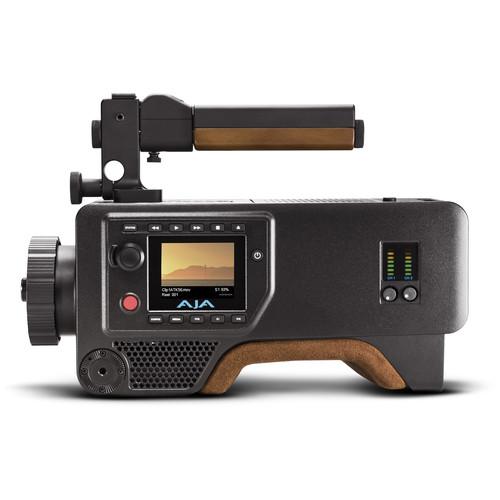

The AJA CION 4K/UHD and 2K/HD Production Camera features an APS-C sized 4K image sensor capable of capturing both DCI and UHD 4K as well as 2K and HD resolution video. Video is recorded using Apple ProRes 4444 and 422 codecs up to DCI 4K (4096x2160) at 60 fps to AJA Pak media. The camera can also output AJA Raw video at up to DCI 4K at 120 fps via quad-link 3G-SDI output, and up to 30 fps over Thunderbolt. With an ergonomic yet flexible design and industry-standard connections, the CION is ready for professional use in the field or in the studio.

The 4K APS-C sized CMOS image sensor provides 12 stops of dynamic range and utilizes an electronic global shutter to eliminate motion skew associated with rolling shutters. An integrated Optical Low-Pass and IR cut filter serves to reduce moiré while yielding sharp images with high quality colors. The camera uses a PL lens mount for use with industry standard cinema lenses. And because APS-C is very similar in size to that of Super 35mm, your Super 35mm PL lenses will cover the imaging area of the sensor. Mechanical back focus adjustment has been included for fine-tuning the distance between the lens and the sensor for optimum image sharpness.

The CION is designed to be user friendly in form and operation. A contoured shoulder pad provides comfortable shoulder-mounted operation, and the included top handle features an integrated LANC start/top button. All of the audio and video connections are industry-standard and have been placed so not to interfere with camera operation. Camera interface controls are located on the side of the camera facing the operator for easy access in single-user setups. The menu is also easy to navigate using a dial knob. The integrated monitor displays the menu information as well as a preview of your real-time image. The camera can also be controlled remotely via a LAN connection, and even ganged with other CION cameras for multicam shoots.
If you own a AJA digital cine cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AJA CION 4K/UHD and 2K/HD Production Camera CION-R0 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the AJA CION 4K/UHD and 2K/HD Production Camera CION-R0:
Sensor Type CMOS, electronic global shutter
Sensor Size 22.5 x 11.9 mm (4K APS-C sized)
Dynamic Range 12 stops
Lens Mount PL
Filtration Optical Low Pass Filter and IR Cut Filter (combined)
Recording Media AJA Pak media
Video Formats DCI 4K
DCI 4K (4096x2160) progressive 23.98/24/25/29.97/30/50/59.94/60/119.88/120

Internal (to AJA Pak media):
Apple ProRes 4444 or Apple ProRes 422 (all versions) up to 30 fps
Apple ProRes 422 (or a lower data rate ProRes version) for 50/59.94/60 fps

SDI output:
23.98/24/25/29.97/30 fps (4x SDI YCbCr, 4x SDI RGB, or 1x SDI Raw)
50/59.94/60 fps (4x SDI YCbCr or 2x SDI Raw)
119.88/120 fps (4x SDI Raw)

Ultra HD
Ultra HD (3840x2160) progressive 23.98/24/25/29.97/30/50/59.94/60/119.88/120

Internal (to AJA Pak media):
Apple ProRes 4444 or Apple ProRes 422 (all versions) up to 30 fps
Apple ProRes 422 (or a lower data rate ProRes version) for 50/59.94/60 fps

SDI output:
23.98/24/25/29.97/30 fps (4x SDI YCbCr, 4x SDI RGB, or 1x SDI Raw)
50/59.94/60 fps (4x SDI YCbCr or 2x SDI RAW)
119.88/120 fps (4x SDI Raw)

2K
2K (2048x1080) progressive 23.98/24/25/29.97/30/50/59.94/60

Internal (to AJA Pak media):
Apple ProRes 4444 or Apple ProRes 422 (all versions) up to 30 fps
Apple ProRes 422 (all versions) for 50/59.94/60 fps

SDI output:
23.98/24/25/29.97/30 fps (1x SDI YCbCr, 1x SDI RGB, or 1x SDI RGB)
50/59.94/60 fps (2x SDI YCbCr or 1x SDI YCbCr)

1080p
1920x1080 progressive 23.98/24/25/29.97/30/50/59.94/60

Internal (to AJA Pak media):
Apple ProRes 4444 or Apple ProRes 422 (all versions) up to 30 fps
Apple ProRes 422 (all versions) for 50/59.94/60 fps

SDI output:
23.98/24/25/29.97/30 fps (1x SDI YCbCr, 2x SDI RGB, or 1x SDI RGB)
50/59.94/60 fps (2x SDI YCbCr or 1x SDI YCbCr)

1080i
1920x1080 interlaced 25/29.97/30

Internal (to AJA Pak media):
Apple ProRes 422 (all versions) up to 30 fps

SDI output:
Up to 30 fps (1 x SDI YCbCr)
Video Output 4 x 3G/HD-SDI Main Outputs (BNC connectors)
2 x 3G/HD-SDI Monitor Outputs (BNC connectors, one front mounted, one rear mounted)
1 x HDMI 1.3 output (Type A connector, front mounted)
1 x HDMI 1.4 output (Type A connector, rear mounted)
Audio Input 2 x Balanced analog audio (3-pin XLR connectors, dedicated line/mic/48v selection switch per input)
Audio Output 1 x Headphone jack (3.5 mm stereo mini TRS)
Reference Input 1 x Reference input (BNC connector, analog color black)
Timecode 1 x LTC (BNC connector, 0.5 to 4.5 vPP)
LANC 2 x 2.5mm LANC connectors (one on top and one on side)
Network Interface 1 x LAN (RJ-45 connector, 10/100/1000)
Data Output AJA Raw via 3G-SDI up to 120 fps or Thunderbolt up to 30 fps
User Interface 6 x Dedicated Menu Buttons (STATUS, CONFIG, MEDIA, FPS, EI and WB)
4 x Transport Buttons (Play, Fast Forward, Reverse Playback, Stop)
1 x Media Unmount Button
1 x Record Button
1 x User Interface Control Knob
1 x User Interface Screen, 320x240 LCD
Power 4-pin XLR connector or 2-pin input connector
12 to 18 VDC, 5 A maximum
Power Adapter 100 to 240 VAC, 50/60 Hz
Power Consumption 38 to 42 W (typical)
45 to 47 W (maximum)

Note: Does not include power draw from 2-pin out connector)
Power Output 2-pin power output connector, 10 W recommended maximum
Operating Temperature 41 to 104°F (5 to 40°C)
Storage Temperature Power OFF: -4 to 140°F (-20 to 60°C)
Weight Without top handle: 6.4 lb (2.9 kg)
With top handle: 7.4 lb (3.4 kg)
Packaging Info
Package Weight 14.0 lb
Box Dimensions (LxWxH) 17.1 x 13.4 x 13.0"
The user manual for the AJA CION 4K/UHD and 2K/HD Production Camera CION-R0 can be downloaded in .pdf format if it did not come with your new digital cine cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AJA users keep a unique electronic library for AJA digital cine camerass, where you can use our link to download the user manual for the AJA CION 4K/UHD and 2K/HD Production Camera CION-R0.
