User manual Akai Professional MPC Renaissance - Music MPC RENAISSANCE

Operating instructions and pdf manual for use - Akai Professional MPC Renaissance - Music MPC RENAISSANCE User manual, User manual Akai Professional MPC Renaissance - Music MPC RENAISSANCE, Akai, Professional, MPC, Renaissance, Music, MPC, RENAISSA


User manual for Akai Professional MPC Renaissance - Music MPC RENAISSANCE

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

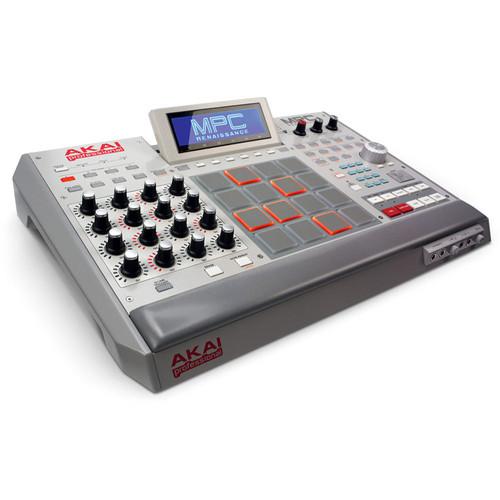

Akai Professional MPC Renaissance - Music MPC RENAISSANCE
  • Manufacturer: Akai Professional
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Control Surfaces
  • Safety instructions
  • Startup and operation of the control surfaces
  • Tips for setting up your Akai Professional
  • Settings and expert assistance
  • Contact Akai Professional service
  • Troubleshooting
  • Warranty information
  • Price: 999 USD
We recommend checking out our discussion threads on the Akai Professional MPC Renaissance - Music MPC RENAISSANCE, which address similar problems with connecting and setting up Control Surfaces Akai Professional.



User manual for the Akai Professional MPC Renaissance - Music MPC RENAISSANCE

The user manual for the Akai Professional MPC Renaissance - Music MPC RENAISSANCE provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Control Surfaces.

The MPC Renaissance from Akai Professional fuses the legendary MPC layout and workflow with the power of a Mac or PC computer. The system is a fully integrated hardware/software system using the classic MPC hardware controls with an integrated pop-up display, coupled with the MPC Software that provides expandable production capabilities. A Vintage Mode changes the sound output of the system to the character of the MPC3000, MPC60, and more.

Hardware features include the classic MPC Note Repeat, MPC Swing and MPC transport control functions, while adding 16 Q-Link controls. Additionally the hardware functions as a four-channel USB 2.0 audio interface with a two-port USB hub built in. The software provides 64-track sequencing and a 6GB+ sound library, including all of the sounds of the classic MPC3000 and support for multiple sound formats.
If you own a Akai Professional control surfaces and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Akai Professional MPC Renaissance - Music MPC RENAISSANCE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Akai Professional MPC Renaissance - Music MPC RENAISSANCE:
Specifications
    Converters 24-bit
    Sample Rates Up to 96kHz
    Software Polyphony - 64
    Maximum Events - unlimited (based on CPU)
    Resolution - 960 pulses per 1/4-note
    Sequences - 128
    Number of programs - 128
    Tracks per Sequence - 128
    Drum Pad Banks - 8
    Sync Mode - MIDI clock, MIDI Time Code
    Transport Controls -MIDI Machine Control
    Dynamic Filtering - 1 State Variable Filter per voice (up to 8 pole, depending on type)
    Filter Types - low-, band- and high-pass, band boost, band stop, analog modeling, vocal formant
    Memory Capacity - 2GB minimum/8GB recommended (system dependent)
    Plug-In Supported as Host - Audio Units (Mac), VST (Mac/PC)
    Plug-In Formats Available to Other DAWs - Audio Units (Mac Only), RTAS, VST
    Program Effects - 4 insert slots per pad, 4 sends to track effects per pad
    Track Effects - 4 inserts and 4 stereo sends per track
    Master Effects - 4 master effect slots with over 50 effects Included
    Instrument Plug-In Formats - Audio Units (Mac), VST (Mac / PC)
    Audio Files Support - WAV, MP3, REX, AIFF, SND
    Analog Input 2 XLR/TRS combo
    1 x RCA phono Turntable
    Input Impedance 11kΩ
    Maximum Output Level +10dBu
    Analog Output 2 x 1/4" TRS phone Mix
    2 x 1/4" TRS phone Stereo
    Output Impedance 1kΩ
    Maximum Output Level Audio Outs: +18dBu
    Headphone: 200mW into 100Ω
    Digital Input 1 x RCA coaxial S/PDIF (24-bit)
    Digital Output 1 x RCA coaxial S/PDIF (24-bit)
    Headphones 1 x 1/4" TRS phone
    1 x 1/8" TRS stereo mini
    MIDI 2 x 5-pin DIN Input
    4 x 5-pin DIN Output
    Other Connectors 2 x 1/4" TS phone Footswitch
    Display 360 x 96 dot graphic LCD with back light
    Power Requirements 12VDC, 3A adaptor (included)
    System Requirements Mac
    1.8 GHz G4/G5 or faster (Intel Mac recommended)
    OS X 10.4.11 (10.5 or later recommended)
    2GB RAM (4GB recommended, if supported by your computer)
    DVD-ROM drive

    PC
    2GHz Pentium IV or Celeron compatible CPU or faster (multi-core CPU recommended)
    Windows XP (home or Pro), Vista, or Windows 7
    2GB RAM (4GB recommended on Vista and Windows 7)
    DVD-ROM drive
    Dimensions (WxDxH) 19.8 x 13 x 2.75" (50 x 33 x 7cm)
    Weight 10.5 lb (4.8kg)
    Specialties USB hub with 2 additional ports
    Packaging Info
    Package Weight 16.6 lb
    Box Dimensions (LxWxH) 25.0 x 18.0 x 9.0"
    Akai MPC Renaissance Demo
    The user manual for the Akai Professional MPC Renaissance - Music MPC RENAISSANCE can be downloaded in .pdf format if it did not come with your new control surfaces, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Akai Professional users keep a unique electronic library for Akai Professional control surfacess, where you can use our link to download the user manual for the Akai Professional MPC Renaissance - Music MPC RENAISSANCE.

    The user manual lists all of the functions of the Akai Professional MPC Renaissance - Music MPC RENAISSANCE, all the basic and advanced features and tells you how to use the control surfaces. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Akai Professional service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Akai Professional MPC Renaissance - Music MPC RENAISSANCE. User manuals are also available on the Akai Professional website under Pro Audio - Computer Audio - Control Surfaces.
