User manual AKG C314 Multi-Pattern Condenser Microphone 3386Z00110

Operating instructions and pdf manual for use - AKG C314 Multi-Pattern Condenser Microphone 3386Z00110 User manual, User manual AKG C314 Multi-Pattern Condenser Microphone 3386Z00110, AKG, C314, Multi-Pattern, Condenser, Microphone, 3386Z00110,


User manual for AKG C314 Multi-Pattern Condenser Microphone 3386Z00110

AKG C314 Multi-Pattern Condenser Microphone 3386Z00110
  • Manufacturer: AKG
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Large Diaphragm Condenser
  • Safety instructions
  • Startup and operation of the large diaphragm condenser
  • Tips for setting up your AKG
  • Settings and expert assistance
  • Contact AKG service
  • Troubleshooting
  • Warranty information

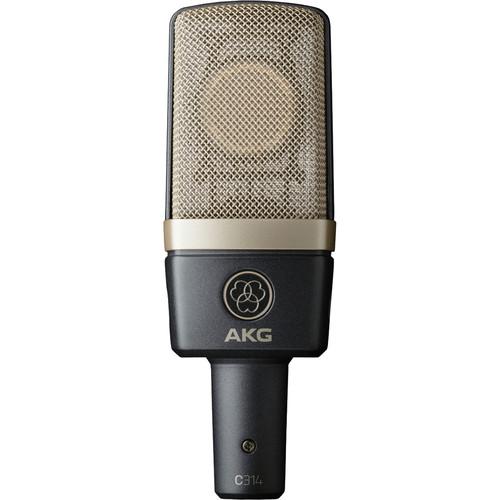

AKG C314 Multi-Pattern Condenser Microphone 3386Z00110 AKG C314 Multi-Pattern Condenser Microphone 3386Z00110
Click to enlarge image

We recommend checking out our discussion threads on the AKG C314 Multi-Pattern Condenser Microphone 3386Z00110, which address similar problems with connecting and setting up Large Diaphragm Condenser AKG.



User manual for the AKG C314 Multi-Pattern Condenser Microphone 3386Z00110

The user manual for the AKG C314 Multi-Pattern Condenser Microphone 3386Z00110 provides necessary instructions for the proper use of the product Pro Audio - Recording - Large Diaphragm Condenser.

Employing the same 1" dual diaphragm capsule as their popular C414 XLS, the stereo matched pair C314 Multi-Pattern Condenser Microphones from AKG are geared towards a variety of miking applications for project and professional studios as well as on stage. Its dual capsule provides for 4 selectable polar patterns; cardioid, supercardioid, omnidirectional, and figure 8, while its internal circuitry assures a low level of self noise. An overload detection LED lets you know when you are distorting the microphone, while the -20 dB pad and bass-cut filter at 100 Hz allows you to adjust the sonics based on the source.
If you own a AKG large diaphragm condenser and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AKG C314 Multi-Pattern Condenser Microphone 3386Z00110 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for AKG C314 Multi-Pattern Condenser Microphone 3386Z00110Download user manual for AKG C314 Multi-Pattern Condenser Microphone 3386Z00110
(PDF file, 2.51 MB)
Additional parameters of the AKG C314 Multi-Pattern Condenser Microphone 3386Z00110:
Specifications
    Capsule 1" dual-diaphragm condenser
    Polar Patterns Cardioid, supercardioid, omnidirectional, figure 8
    Frequency Response 20 Hz to 20 kHz
    Sensitivity Cardioid: 20 mV/Pa (-34 dBV)
    Maximum SPL for 0.5% THD 135/155 dB (0/-20 dB pad)
    Equivalent Noise Level 8 dB (A) (IEC 60286-4)
    Signal to Noise Ratio 86 dB (A) re 1 Pa
    Pad -20 dB
    Bass Cut Filter 100 Hz, 12 dB/octave
    Impedance Electrical: ≤ 200 ohms
    Recommended Load Impedance: ≥ 1000 ohms
    Connector 3-pin XLR (pin 2 hot)
    Phantom Power 48 V +/- 4 V to IEC 61938
    Current Consumption ≤ 3 mA
    Temperature Range 14° to 140°F (-10° to +60°C)
    Dimensions (H x W x D) 6.3 x 2.2 x 1.7" (160 x 55 x 43 mm)
    Weight 10.6 oz (300 g)
    Packaging Info
    Package Weight 5.8 lb
    Box Dimensions (LxWxH) 15.5 x 12.0 x 3.8"
    The user manual for the AKG C314 Multi-Pattern Condenser Microphone 3386Z00110 can be downloaded in .pdf format if it did not come with your new large diaphragm condenser, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AKG users keep a unique electronic library for AKG large diaphragm condensers, where you can use our link to download the user manual for the AKG C314 Multi-Pattern Condenser Microphone 3386Z00110.

    The user manual lists all of the functions of the AKG C314 Multi-Pattern Condenser Microphone 3386Z00110, all the basic and advanced features and tells you how to use the large diaphragm condenser. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AKG service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AKG C314 Multi-Pattern Condenser Microphone 3386Z00110. User manuals are also available on the AKG website under Pro Audio - Recording - Large Diaphragm Condenser.
