User manual for the Alesis Elevate 5 - Powered 5" Desktop ELEVATE 5 (PAIR)
The user manual for the Alesis Elevate 5 - Powered 5" Desktop ELEVATE 5 (PAIR) provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

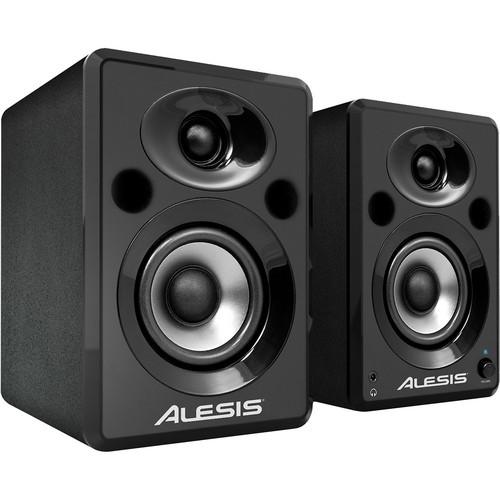

The pair of Elevate 5 Powered Studio Monitors from Alesis feature a 5" woofer and a 1" soft-dome silk tweeter. The high-frequency driver is surrounded by an elliptical waveguide. Directional Articulation technology creates a wider "sweet spot" for critical listening, while minimizing audio reflections from nearby surfaces.
The Elevate 5 monitors are ideal for multimedia, gaming, desktop audio, or use with a mobile device. The custom-designed, high-density wood cabinet boasts a full sound from a space-saving format. Bass porting provides an extended low end, while radial-edge baffles reduce distortion-causing edge diffraction. Magnetic shielding allows the Elevate 5 monitors to be safely used near sensitive video displays and other electronic equipment.
The front panel provides a convenient volume control, which also serves as a power switch, paired with a blue LED indicator. The Elevate 5 monitors are equipped with an internal power supply, so there is no bulky external adapter. Left and right RCA inputs are located on the rear panel. The rear panel also features a Bass Boost switch. An 1/8" stereo headphone output is provided on the front panel. The Elevate 5 monitors deliver 40 Watts of continuous power, or 20 Watts per speaker.
|
If you own a Alesis studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Alesis Elevate 5 - Powered 5" Desktop ELEVATE 5 (PAIR) in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Alesis Elevate 5 - Powered 5" Desktop ELEVATE 5 (PAIR):
Input Connections | 2 x RCA phono (1 x L/R) | Output Connector | 1 x 1/8" stereo headphone output | Low Frequency Driver | 5" woofer, per side | High Frequency Driver | 1" silk-dome tweeter, per side | Output Power | 20W per side, continuous | Peak Power | 60W per side | Dimensions | Not specified by Manufacturer | Weight | Not specified by Manufacturer | Package Weight | 18.75 lb | Box Dimensions (LxWxH) | 22.8 x 14.7 x 7.6" | |
