User manual for the American Audio UCD-100 MKII Single CD/USB & MP3 UCD-100 MKII

The user manual for the American Audio UCD-100 MKII Single CD/USB & MP3 UCD-100 MKII provides necessary instructions for the proper use of the product Pro Audio - DJ Equipment - CD, MP3 & Media Players.

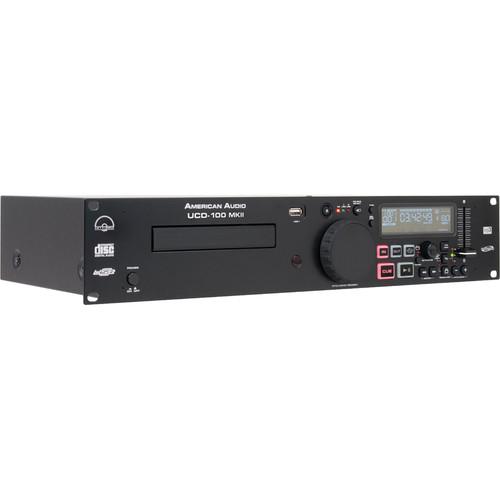

The 2RU UCD-100 MKII Single CD/USB & MP3 Player from American Audio is a 19" rackmountable single player. It supports MP3, CD, CD-R, and CD-RW discs. The two USB music inputs are designed for external music sources such as a hard drive, MP3 players, thumb drives, and SD cards with adapters. The rear panel RCA and XLR balanced outputs send audio signals directly to powered speakers (use only one of the outputs at a time). The front panel LCD display indicates the unit's functions such as pitch slider, BPM meter, and time meter, as well as displaying the time, and track values.

The UCD-100 MKII has a jog wheel for frame search in Pause Mode, and Pitch Bend in Play Mode. The player's seamless loop function plays your audio continuously without sound interruption. You can use this loop to create effects in your mixing. This loop has no time limit and you could loop the entire length of a disc. The BPM can be controlled manually or automatically via the TAP/BPM button. This unit has a +10 track advance button, mechanical anti-skip protection, and quick MP3/CD recognition. The Tempo Lock function allows you to use the Pitch Slider to speed up or slow down playback speed without altering the tonal pitch of the track. This unit can operate in both Single and Continuous modes. In single mode the unit will play a single track and return to cue mode. In continuous mode the unit continues to play track by track.

The device includes a PC database management software that enables you to scan your USB hard drive, create database files, and search in your music library for your files by title, Artist, Album, and Genre. Included with the unit is an infrared remote control, the features of which include volume control, folder & track search, mute, key lock, source selection, and seamless loop control.
If you own a American Audio cd, mp3 & media players and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Audio UCD-100 MKII Single CD/USB & MP3 UCD-100 MKII in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the American Audio UCD-100 MKII Single CD/USB & MP3 UCD-100 MKII:
Specifications
Software
Minimum System Requirements CPU: Intel Pentium 4 1 GHz processor or above, Intel Centrino Mobile Technology 1.6 GHz
RAM: 512 MB RAM
Disc Space: 100 MB of free disc space needed
OS: Microsoft Windows XP SP3, Vista SP2
Hardware
Output Connectors 2 x 3-pin XLR, L/R audio balanced output
2 x USB type A, input (front and rear)
2 x RCA, L/R stereo audio output
Pitch Control Range: ± 4%, ± 8%, ± 16%, ± 100% for CDDA
Bend: ± 4%, &± 8%, ± 16%, ± 100% for CDDA
Pitch Accuracy: ± 0.15%
Quantization 16-bit linear per channel
Sampling Rate 44.1 kHz at normal pitch
Oversampling 8 times over sampling 1 bit D/A converter
D/A Conversion 16 bit
Frequency Response CDDA: 20 Hz to 20 kHz ± 0.4 dB
CD: 17 Hz - 20 kHz, ±4 dB
USB: 17 Hz - 16 kHz, ± 0.2 dB
Load Impedance ≥ 47 kΩ
Supported Formats Digital Compact 5" (12 cm) and 3" (8 cm) Disc/MP3 MPEG 1, 2, 2.5/USB Audio Player
Output Level Digital: 0.5 V, ± 0.1 p-p (load = 75 Ω)
XLR: 2 V, ± 0.5 dB, 8.22 dBm
CD: 2 V, ± 0.5 dB
USB: 1.85 V, ± 0.5 dB
Channel Balance Nominal: Within 0.2 dB
Limit: Within 1 dB
De-Emphasis Response -20 dB, ± 0.2 dB
Channel Separation CD/USB: 93 dB (nominal), 85 dB (limit)
Signal-to-Noise Ratio CD (IHF-A): 126 dB (nominal) 90 dB (limit) @ 1 kHz, 0 dB
USB (IHF-A):  85 dB (nominal) 80 dB (limit) @ 1 kHz, 0 dB
Total Harmonic Distortion/Noise CD: 0.008% (nominal), 0.015% (limit) @ 1 kHz, 0 dB
USB: 0.007% (nominal), 0.015% (limit) @ 1 kHz, 0 dB
Dynamic Range CD: 92 dB (nominal), 88 dB (limit) @ 1 kHz, -60 dB
Tracking Ability 3 spot beam detection
Optical Source Semiconductor laser
Wavelength 780 nm
Operating Temperature / Humidity 41 to 95°F (5 to 35°C), 25 to 85% RH (non-condensation)
Storage Temperature 4 to 140°F (-20 to 60°C)
Installation Place on flat surface or mount in flat case
Power Supply 100 - 240 VAC, 50/60 Hz
Power Consumption 13 W
Dimensions (H x W x D) 3.5 x 19.0 x 11.0" (8.9 x 48.2 x 27.1 cm)
Weight 9.59 lbs (4.35 kg)
Packaging Info
Package Weight 11.4 lb
Box Dimensions (LxWxH) 21.0 x 12.5 x 7.0"
