User manual American Dynamics 16 Output Power Supply ADC1624UL

Operating instructions and pdf manual for use - American Dynamics 16 Output Power Supply ADC1624UL User manual, User manual American Dynamics 16 Output Power Supply ADC1624UL, American, Dynamics, 16, Output, Power, Supply, ADC1624UL,


User manual for American Dynamics 16 Output Power Supply ADC1624UL

American Dynamics 16 Output Power Supply ADC1624UL
  • Manufacturer: American Dynamics
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Power - Power Supplies
  • Safety instructions
  • Startup and operation of the power supplies
  • Tips for setting up your American Dynamics
  • Settings and expert assistance
  • Contact American Dynamics service
  • Troubleshooting
  • Warranty information
  • Price: 223 USD
We recommend checking out our discussion threads on the American Dynamics 16 Output Power Supply ADC1624UL, which address similar problems with connecting and setting up Power Supplies American Dynamics.



User manual for the American Dynamics 16 Output Power Supply ADC1624UL

The user manual for the American Dynamics 16 Output Power Supply ADC1624UL provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Power - Power Supplies.

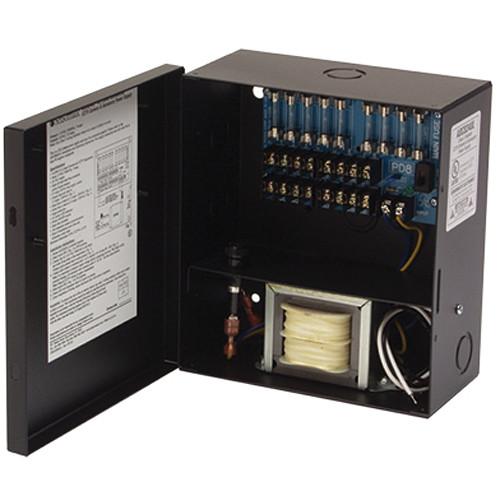

Power your CCTV cameras and other video accessories with the American Dynamics ADC1624UL CCTV Power Supply, designed with 16 individually fused outputs. These outputs, in total, continuously supply 7 amps of electricity to generate 24VAC alternating current.

Meant to maintain camera synchronization, this CCTV power supply offers hassle-free installation in just seven pre-determined steps. The built-in surge protector helps protect the ADC1624UL from voltage spikes. It incorporates an AC power LED indicator with an on/off switch. This product is a UL 2044 listed power supply with an input voltage of 115 VAC at 50/60 Hz. The main and inline fuses are rated at 3.5 amps/250 VAC.

The wall mounting options of this ADC1624UL CCTV power supply are compatible with concrete, wood, and sheet rock surfaces. While the operating temperature ranges from 0° C to 50° C, the storage temperature of this CCTV power supply is between -40° C and 70°C, with relative humidity being 0 to 95RH ( non-condensing).
If you own a American Dynamics power supplies and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Dynamics 16 Output Power Supply ADC1624UL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the American Dynamics 16 Output Power Supply ADC1624UL:
Specifications
    Indoor/Outdoor Indoor
    Outputs x16
    Power Input 120VAC
    Power Output 24VAC (x16)
    Current Consumption Per Camera: 7A
    Total: 170VA
    Mounting Concrete, wood, and sheet rock
    Operating Temperature 32 - 122°F (0 - 50°C)
    Dimensions (WxHxD) 13 x 13.5 x 3.3" (330 x 343 x 83mm)
    Weight Not specified
    Packaging Info
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 14.3 x 14.2 x 4.7"
    The user manual for the American Dynamics 16 Output Power Supply ADC1624UL can be downloaded in .pdf format if it did not come with your new power supplies, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other American Dynamics users keep a unique electronic library for American Dynamics power suppliess, where you can use our link to download the user manual for the American Dynamics 16 Output Power Supply ADC1624UL.

    The user manual lists all of the functions of the American Dynamics 16 Output Power Supply ADC1624UL, all the basic and advanced features and tells you how to use the power supplies. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from American Dynamics service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the American Dynamics 16 Output Power Supply ADC1624UL. User manuals are also available on the American Dynamics website under Surveillance - Surveillance Video - Power - Power Supplies.
