User manual for the American Dynamics 8" Professional Public View ADLCD08PS2W

The user manual for the American Dynamics 8" Professional Public View ADLCD08PS2W provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Monitors.

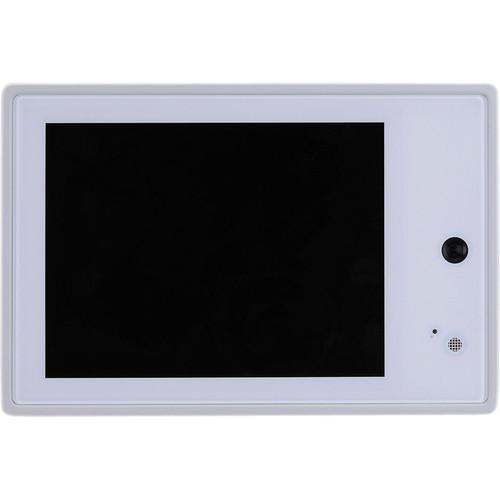

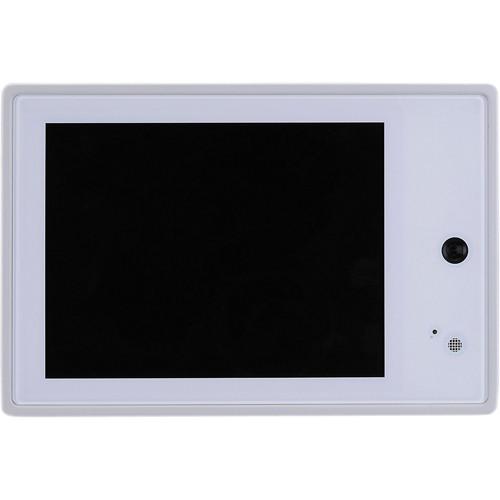

The white 8" Professional Public View Monitor from American Dynamics with power-saving LED backlighting features an integrated color Pixim Seawolf WDR camera, an SD media player, and a mircoSD recorder. This PVM (Public View Monitor) offers an ultra-slim chassis design that is suited for retail store interiors or other public view applications. This PVM delivers sharp, crisp pictures and features user-friendly, on-screen display menus for adjusting monitor display parameters to your specific preference. The integrated color camera with Pixim Seawolf WDR image sensor points in the direction of oncoming store traffic. The monitor is small enough to be placed in aisles that contain high theft items, thereby deterring criminal activity. In addition, you can use this monitor as a digital signage for displaying in-store promotions at a variety of locations such as the store entrance and end displays. You can continuously display live camera view or advertising media while simultaneously recording surveillance video displayed using this monitor. This Professional PVM gives the option to switch the display to a camera or media advertisement for a user-defined dwell time on motion-triggered activity. Its solid state LED backlights help maintain consistent brightness levels and consume less power.
If you own a American Dynamics surveillance monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Dynamics 8" Professional Public View ADLCD08PS2W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the American Dynamics 8" Professional Public View ADLCD08PS2W:
Panel
Size 8.00" (20.32 cm)
Backlight Type LED, edge-lit
Native Aspect Ratio 4:3
Native Resolution 800 x 600
Brightness 250 cd/m²
Contrast Ratio 500:1
Viewing Angle (H/V) 140 / 130
Response Time 25 ms
OSD Language English (US), French (Fr), German, Spanish (Int), Italian, Portuguese (Brazilian), Chinese (Si), Dutch
Inputs/Outputs
VGA Input Connector 1 x VGA (15pins D-Sub)
Input Connector CVBS:1 x BNC input with loop through output
Camera Output 1 x BNC
Audio Input 2 x Stereo RCA (L/R)
Video System NTSC / PAL (User selectable)
Power
Power Consumption <10 W
Power Input 12 VDC or 24 VDC
Camera
Image Device 1/3" PIXIM Seawolf sensor
Image Size 0.2" (6.0 mm)
Effective Pixels (H x V) Total: 768 x 548; Active: 758 x 540
Sync System Internal
Horizontal Resolution 690 TVL
S/N Ratio Dynamic Range:Typical: 102 dB, Maximum: 120 dB
Minimum Luminance 0.1 lux/F1.2
Control OSD
White Balance ATW / AWB
BNC Output CVBS 1.0Vpp / 75 Ω
Input Voltage 12 VDC
Focal Length 3.6 mm
Mirror Horizontal / vertical / both / off
Environmental
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 10 to 85% RH (non-condensing)
Storage Temperature -4 to 140°F (-20 to 60°C)
Storage Humidity 10 to 95% RH (non-condensing)
Multi-Media
Video Decoder MPEG 1 / 2 / 4, Dvix3.11 / 4.x / 5.x, M-JPEG
Video Format AVI, ASF, MP4, 3GP, DAT, VOB, MPG
Audio Decoding MP3, WMA, G.726, AAC, ADPCM, AMR, BBE
Decoding Picture:JPEG, TIFF, BMP
Digital Video Recorder
Compression JPEG and H4L
Video Resolution NTSC: 720 x 480, PAL: 720 x 576
Recording Mode Continuous / Motion / Alarm
Recording Frame Rate NTSC: 30 fps, PAL: 25 fps

Record rate user selectable.

Recording Quality 4 level adjustable
Playback Modes By time / event
Playback Speed Fast forward & Backward: 2x, 4x, 8x
Regulatory UL, FCC, CE, RoHS, WEEE
Mechanical
Cabinet Metal
VESA Hole Pattern 75 x 75 mm
Dimensions (H x W x D) Monitor:5.83 x 9.29 x 1.58" (148.00 x 236.00 x 40.00 mm)
Weight Monitor:2.76 lb (1.25 kg)
Packaging Info
Package Weight 2.5 lb
Box Dimensions (LxWxH) 15.0 x 9.4 x 7.5"
The user manual for the American Dynamics 8" Professional Public View ADLCD08PS2W can be downloaded in .pdf format if it did not come with your new surveillance monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other American Dynamics users keep a unique electronic library for American Dynamics surveillance monitorss, where you can use our link to download the user manual for the American Dynamics 8" Professional Public View ADLCD08PS2W.
