User manual for the American Dynamics CPAKOTDN3-8N Outdoor Cam Pak CPAKOTDN38N

The user manual for the American Dynamics CPAKOTDN3-8N Outdoor Cam Pak CPAKOTDN38N provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

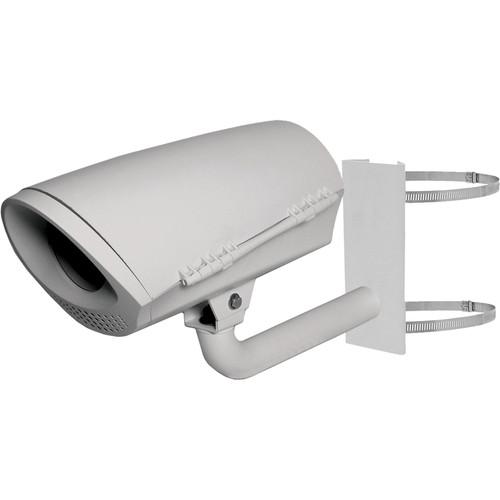

The standard CPAKOTDN3-8N pre-pack camera from American Dynamics offers you an easy-to-setup surveillance system. With a pre-configured set of camera, lens, housing (wherever applicable), mount and mounting hardware, installation is quick. Moreover, the lens is back-focused so that the common problem of the camera focusing just behind the intended subject gets automatically taken care of.

The 540 TV lines of horizontal resolution provide high resolution images with true color rendition. If the ambient lighting happens to be low, the camera automatically switches from color to B/W mode, to give you better images with details. The line-lock capability/internal synchronization ensure roll-free pictures while switching. The camera can operate on 24 VAC/12 VDC and has NTSC/PAL formats to suit different requirements.

The monitor mode lets you customize the output for CRT and LCD monitors and gives you pictures with optimum details. Selectable zones for backlight compensation and advanced pixel correction further improve the rendition of images. The focus adjust mode ensures easy installation as well as focus accuracy.

The ADCTDN series provides True Day/Night performance with an IR cut filter. In case the lighting drops, the IR cut filter gets deactivated and the camera changes to B/W to provide you the best possible images in low light. You can also manually initiate this switch-over through an auxiliary input.

Alternately, IR illuminators (optional accessory) can be deployed to provide an external source of infrared light when the ambient light is absent or too poor. You can best see in the dark when you use IR corrected lenses with this series of cameras.

The cameras in both series have a reliable operating temperature range from 14 to 122°F (-10 to 50°C) and <90% noncondensing relative humidity tolerance, making them ideal for a variety of uses.
If you own a American Dynamics wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Dynamics CPAKOTDN3-8N Outdoor Cam Pak CPAKOTDN38N in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the American Dynamics CPAKOTDN3-8N Outdoor Cam Pak CPAKOTDN38N:

Go To

Camera
Signal System NTSC
Image Sensor 1/3" Color IT CCD
Resolution 540 TVL
Number of Pixels 768 x 494
Lens Mount C/CS
Lens 3-8mm IR Corrected Auto Iris F1.0 Lens (LIRC0308CS)
Iris Operation Auto Iris DC (camera supports auto iris Video/DC)
Minimum Illumination Color Mode: 0.4 lux, f1.2, AGC on
B/W Mode: 0.02 lux, f1.2, AGC on
Signal to Noise Ratio <50dB
Controls Day/Night: IR Cut Filter (auto/manual)
BLC: 4 zones/Off
White Balance: ATW/ATW wide / AWC (one touch) / Manual mode (adjustable)
Audio N/A
Video Output BNC
Sync System Internal/Line-lock
Power Requirements 24VAC or 12VDC
Power Consumption 4.7W (380mA)
Operating Temperature (camera only)
14 - 122°F (-10 ~ +50°C)
Dimensions (WxHxD) (camera only)
2.6 x 2.5 x 5" (67 x 63 x 126mm)
Weight 1.1 lbs (480g)
Housing
Housing Construction: Ligh gray Magnum 941 Polymer chasis with 0.19" thick Lexan window
Maximum Camera/Lens Size: 10" (253mm)
Heater & Blower: Thermostatically controlled pad heater / blower
Cable Entry: Via cable pass mount
Weatherproof Rating: IP4 (NEMA-3R)
Power Requirements: 24VAC
Operating Temperature: -10 ~ 110°F (-23 ~ +43°C)
Dimensions (WxHxD): 5.8 x 6.5 x 13.8" (146 x 163 x 348mm)
Weight: 3 lbs (1.4kg)
Packaging Info
Package Weight 6.55 lb
Box Dimensions (LxWxH) 20.2 x 10.9 x 10.6"
The user manual for the American Dynamics CPAKOTDN3-8N Outdoor Cam Pak CPAKOTDN38N can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other American Dynamics users keep a unique electronic library for American Dynamics wired analog & hd camerass, where you can use our link to download the user manual for the American Dynamics CPAKOTDN3-8N Outdoor Cam Pak CPAKOTDN38N.

The user manual lists all of the functions of the American Dynamics CPAKOTDN3-8N Outdoor Cam Pak CPAKOTDN38N, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from American Dynamics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the American Dynamics CPAKOTDN3-8N Outdoor Cam Pak CPAKOTDN38N. User manuals are also available on the American Dynamics website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
