User manual American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N

Operating instructions and pdf manual for use - American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N User manual, User manual American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N, American, Dynamics, SpeedDome, Ultra, Drone, III


User manual for American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N

American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N
  • Manufacturer: American Dynamics
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired Analog & HD Cameras
  • Safety instructions
  • Startup and operation of the wired analog & hd cameras
  • Tips for setting up your American Dynamics
  • Settings and expert assistance
  • Contact American Dynamics service
  • Troubleshooting
  • Warranty information
  • Price: 430 USD
We recommend checking out our discussion threads on the American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N, which address similar problems with connecting and setting up Wired Analog & HD Cameras American Dynamics.



User manual for the American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N

The user manual for the American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

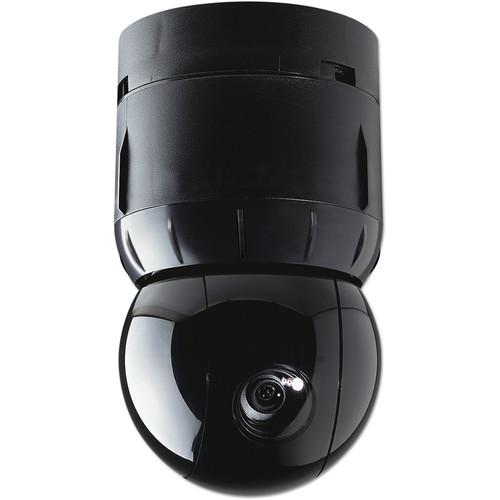

The American Dynamics ADSDUDH2506N SpeedDome Ultra 8 Drone offers a cost-efficient alternative to the full-fledged SpeedDome Ultra 8 camera. Similar in looks, the drone acts as an effective deterrent. It is a pre-configured drone that comes with a built-in fixed camera and a varifocal, auto-iris lens.

The Drone is pre-installed with the SpeedDome Ultra Drone III Fixed Camera that has 540 TVL color resolution. With a 0.65 Lux minimum illumination and a Night Saver mode, the camera performs well in low-light conditions. Friction bearings securely hold the camera in a fixed position as per the desired view. With 370˚ pan and 90˚ tilt mechanism, the internal camera and eyeball can be manually adjusted in any position.

The SpeedDome Ultra 8 Drone is interchangeable with SpeedDome Ultra and offers maximum flexibility by fitting into standard and I/O board SpeedDome Ultra mounting bases. Depending on the surveillance requirements or budgetary considerations, drones can be installed initially and replaced later with full-fledged domes.
If you own a American Dynamics wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N:
Specifications
    Signal System NTSC
    Image Sensor 1/3" Color IT CCD
    Number of Pixels 768 x 494
    Resolution 540 TV Lines
    Lens Mount: CS
    Focal Length: 2.5-6mm
    Aperture: F1.3-360
    AOV (H x V): 108.2 x 80.4° / 47.6 x 35.6° (Wide/Tele)
    Iris Operation Auto iris
    Minimum Illumination 0.65 Lux at F1.2
    Pan & Tilt 360° Pan, 180° Tilt (+/-90°)
    Signal-to-Noise Ratio >50dB
    Controls Backlight Compensation: Center weighted on/off
    Flickerless Mode: Selectable on/off
    Night-Saver: Selectable on/off
    Microphone No
    IR Illumination No
    Video Output BNC
    Audio Output N/A
    Motion Detection No
    Sync System Line-lock, adjustable or internal
    Control Port N/A
    Power Requirements 24VAC
    Power Consumption 7.5W
    Operating Temperature 14 - 122°F (-10 ~ +50°C)
    Diameter and Height 4.7 x 8" (120 x 205mm)
    Weight 2.2 lbs (0.9kg)
    Packaging Info
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 12.0 x 10.1 x 9.4"
    The user manual for the American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other American Dynamics users keep a unique electronic library for American Dynamics wired analog & hd camerass, where you can use our link to download the user manual for the American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N.

    The user manual lists all of the functions of the American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from American Dynamics service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the American Dynamics SpeedDome Ultra Drone III Fixed ADSDUDH2506N. User manuals are also available on the American Dynamics website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
