User manual for the American Dynamics Vandal Resistant Housing ADSDUHOVRS

The user manual for the American Dynamics Vandal Resistant Housing ADSDUHOVRS provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Mounts & Housings - Housings.

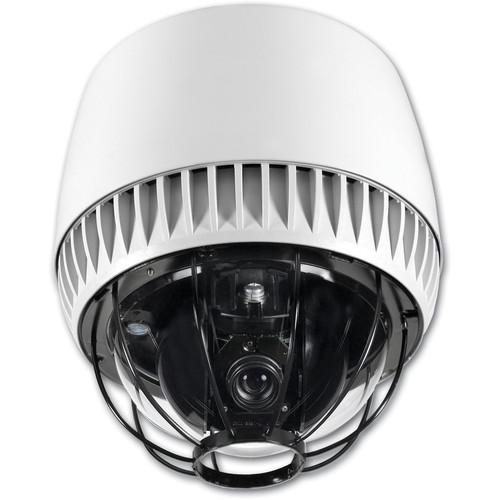

The American Dynamics Vandal Resistant Housing with Integrated I/O Board includes an integrated I/O board that stores presets, patterns, and other parameters. It comes with a bubble (f/1.0) that meets ANSI-87.1 impact safety standards.
If you own a American Dynamics housings and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Dynamics Vandal Resistant Housing ADSDUHOVRS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the American Dynamics Vandal Resistant Housing ADSDUHOVRS:
Electrical Voltage
20 to 36 VAC, 50/60 Hz

Power
80 W maximum

Power-On In-rush Current
3A

Video Surge Protection
Series Resistor of 3.9 ohms; Low Capacitance TVS with Peak Power Rating of 300 W at 8/20 µs; 5 kA (8/20 µs impulse discharge) Gas Discharge tube

Manchester/SensorNet
Isolation transformer 2000 Vrms; PTC resettable fuse; Low Capacitance TVS rated at 5.6 VDC, 40 A, 0.1 J, (8/20 µs impulse discharge current); Gas Discharge tube rated at 5 kA (8/20 µs impulse discharge current)

RS-422
Series resistors of 3.9 ohms; Low Capacitance TVS rated at 5.6 VDC, 40 A, 0.1 J, 8/20 µs impulse discharge current); Gas discharge tube impulse rated at 5 kA (8/20 µs impulse discharge current)

Alarm Input Surge Protection
Low Capacitance TVS with Peak Pulse Current of 17 A max and Peak Pulse Power of 300 W (8/20 µs impulse discharge current); Power Line
Gas discharge tube impulse rated at 5 kA (8/20 µs impulse discharge current); TVS rated at 60 VDC, 250 A, 1.5 J

Auxiliary Output
One Relay 2FC Contact Arrangement with initial isolation resistance of 1,000 Mohms @ 500 VDC. The relay contact ration is 30 VDC, 1 A, or 125 VAC, 0.3 A
Mechanical Construction Enclosure
Aluminum

Top Cover
UV stabilized, polycarbonate

Sun Shade & Trim Ring
UV stabilized, polycarbonate

Bubble
High impact acrylic

Bubble Cage
Stainless steel, painted flat black

Color
Light gray

Height
12.6" (321mm)

Diameter
9.6" (244mm)

Bubble Diameter
6.9" (75mm)

Mechanical Connection
1.5" NPT
Connectors Video Output
Female BNC video cable

Manchester/SensorNet/RS-422
Plug in dual row header with ejector

Alarm Inputs/Auxiliary Output
Plug in dual row header with ejector

Unshielded Twisted Pair Video
Plug in dual row header with ejector

Power
Plug in 3.5mm vertical header

Alarm
Normally Closed (NC) - pin 1
Common (C) - pin 2
Normally Open (NO) - pin 3

I/O Connector
Spring contact gold fingers for mate with SpeedDome Ultra housing/eyeball assemblies
Environmental Weatherproof Standard
NEMA 4/IP66

Operating Temperature
-40 to 122°F (-40 to 50°C)

Humidity
0 to 95% RH (non-condensing)

Storage Temperature
14 to 122°F (-10 to 50°C)

Wind Loading
Sustained winds of 150 miles/hour (240 km/hour) when properly installed and mounted (wall, pole, ceiling, and over-the-roof mount with proper support)
Weight Without Dome: 6.2 lbs (2.8kg)
With Dome: 8.6 lbs (3.9kg)
Packaging Info
Package Weight 1.0 lb
The user manual for the American Dynamics Vandal Resistant Housing ADSDUHOVRS can be downloaded in .pdf format if it did not come with your new housings, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other American Dynamics users keep a unique electronic library for American Dynamics housingss, where you can use our link to download the user manual for the American Dynamics Vandal Resistant Housing ADSDUHOVRS.

The user manual lists all of the functions of the American Dynamics Vandal Resistant Housing ADSDUHOVRS, all the basic and advanced features and tells you how to use the housings. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from American Dynamics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the American Dynamics Vandal Resistant Housing ADSDUHOVRS. User manuals are also available on the American Dynamics website under Surveillance - Surveillance Video - Mounts & Housings - Housings.
