User manual for the American Dynamics VideoEdge IP ADVESDHOVRS SpeedDome ADVESDHOVRS

The user manual for the American Dynamics VideoEdge IP ADVESDHOVRS SpeedDome ADVESDHOVRS provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Mounts & Housings - Housings.

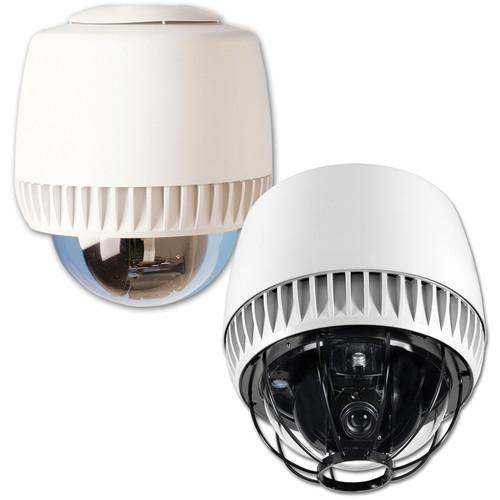

The VideoEdge IP ADVESDHOVRS SpeedDome Outdoor Dome Housing from American Dynamics is designed to provide protection to the internal camera in various weather conditions. The superior optics within the bubble have been designed to maintain the integrity of light, producing images that are optically correct. In extreme temperatures, the built-in thermostatically-controlled heater and blower prevent excessive ice from forming on the outside bubble. It is constructed with a reinforced fiberglass high-impact polycarbonate material along with a UV stabilized sun shade, trim ring, and top cover. The bubble assembly is affixed to the top via tamper-proof screws.

The housing includes an aluminum sunshield cover and a high-impact smoked bubble which meets ANSI-87.1 impact safety standards. For additional protection, a steel bubble cage is also provided. It is equipped with four alarm inputs and one alarm output and surge protection is provided to all video and external lines.
If you own a American Dynamics housings and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the American Dynamics VideoEdge IP ADVESDHOVRS SpeedDome ADVESDHOVRS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the American Dynamics VideoEdge IP ADVESDHOVRS SpeedDome ADVESDHOVRS:
Specifications
    Electrical
    Input Voltage 24 VAC @ 50/60 Hz, NEC Class 2, certified limited power source
    Design Tolerance 20 to 30 VAC @ 50/60 Hz
    Power Consumption 60 W maximum 2.5 A @ 24 VAC
    Surge Protection Power Line TVS rated at 60 V, 1.5 joules
    Gas discharge tube rated at 8/20 us
    Impulse Discharge Current: 5kA
    Power Source 100 to 120 VAC
    Operational 90 to 135 VAC or 180 to 265 VAC @ 50/60 Hz
    Input Current 1.0 A/0.5 A
    Output 4 VAC, 2.5 A max
    Environmental
    Rating NEMA 4, IP66
    Operating Temperature -40 to 122°F (-40 to 50°C)
    Storage Temperature 14 to 122°F (-10 to 50°C)
    Humidity 0 to 95% RH (non-condensing)
    Regulatory
    Safety UL 60950-1/CSA C22.2 No. 60950 and UL50 (Type 4)
    FCC Part 15 Class A
    Mechanical
    Dimensions (Ø x H) 9.6 x 12.5" (24.4 x 31.7 cm)
    Weight 8.77 lb (3.98 kg) with dome
    6.21 lb (2.82 kg) without dome
    Packaging Info
    Package Weight 2.0 lb
    Box Dimensions (LxWxH) 22.4 x 13.7 x 12.6"
    The user manual for the American Dynamics VideoEdge IP ADVESDHOVRS SpeedDome ADVESDHOVRS can be downloaded in .pdf format if it did not come with your new housings, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other American Dynamics users keep a unique electronic library for American Dynamics housingss, where you can use our link to download the user manual for the American Dynamics VideoEdge IP ADVESDHOVRS SpeedDome ADVESDHOVRS.

    The user manual lists all of the functions of the American Dynamics VideoEdge IP ADVESDHOVRS SpeedDome ADVESDHOVRS, all the basic and advanced features and tells you how to use the housings. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from American Dynamics service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the American Dynamics VideoEdge IP ADVESDHOVRS SpeedDome ADVESDHOVRS. User manuals are also available on the American Dynamics website under Surveillance - Surveillance Video - Mounts & Housings - Housings.
