User manual APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G

Operating instructions and pdf manual for use - APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G User manual, User manual APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G, APC, BE550G, Back-UPS, 550, 8, Outlet, Surge, Protecto


User manual for APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G
  • Manufacturer: APC
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Power - UPS Backup
  • Safety instructions
  • Startup and operation of the ups backup
  • Tips for setting up your APC
  • Settings and expert assistance
  • Contact APC service
  • Troubleshooting
  • Warranty information
  • Price: 57 USD

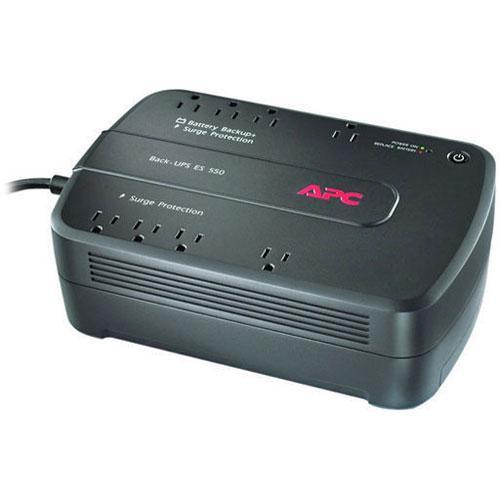

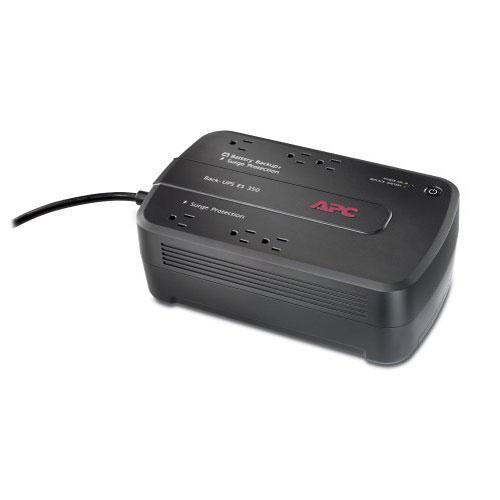

APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G
Click to enlarge image

We recommend checking out our discussion threads on the APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G, which address similar problems with connecting and setting up UPS Backup APC.



User manual for the APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G

The user manual for the APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G provides necessary instructions for the proper use of the product Computers & Solutions - Power - UPS Backup.

The BE550G Back-UPS 550 8 Outlet Surge Protector and Battery Backup from APC provides surge protection and battery backup for home computer systems. It yields an average output power capacity of 550 VA at 330 W and even delivers battery-powered AC from its outlets. APC offers guaranteed protection from surges and spikes with their lifetime $75,000 Equipment Protection Policy. These features make the Back-UPS ES an excellent choice to provide power and battery backup for your home PC.
If you own a APC ups backup and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550GDownload user manual for APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G
(PDF file, 0.09 MB)
Additional parameters of the APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G:
Specifications
    Output Output Power Capacity: 330 W / 550 VA
    Max Configurable Power 330 W / 550 VA
    Nominal Output Voltage: 120 V
    Output Frequency: (sync to mains) 50/60 Hz +/- 3 Hz
    Topology: Standby
    Waveform Type: Stepped approximation to a sinewave
    Output Connections:
    4 x NEMA 5-15R (Battery Backup)
    4 x NEMA 5-15R (Surge Protection)
    Input Nominal Input Voltage: 120V
    Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
    Input Connections: NEMA 5-15P
    Cord Length: 5 feet (1.52 meters)
    Input voltage range for main operations: 88 - 139V
    Surge Energy Rating Surge energy rating: 354 Joules
    Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
    Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector),Network line - 10/100 Base-T Ethernet (RJ-45 connector),Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
    Battery Type: Maintenance-free sealed lead-acid battery with leakproof suspended electrolyte
    Replacement Battery Cartridge: APCRBC110
    Typical Recharge Time 24 hours
    Surge Energy Rating 340 Joules
    Filtering Full time multi-pole noise filtering: 5%
    IEEE surge let-through: Zero clamping
    Response Time : Meets UL 1449
    Data Line Protection Analog phone line for phone/fax/modem/DSL (RJ-45 connector), Network line - 10/100 Base-T Ethernet (RJ-45 connector), Coaxial cable for ATV/SATV/modem/Audio-Video (coax connector)
    Audible Alarm Alarm when on battery, distinctive low-battery alarm, configurable delays
    Conformance Regulatory Approvals: FCC Part 15 Class B,FCC Part 68,NOM,UL 1778
    Equipment protection policy: Lifetime : $75000
    Environmental Compliance: RoHS
    Environmental Requirements Operating
    Temperature: 32-104°F / 0-40°C
    Humidity: 5-95%
    Altitude: 0-10,000' / 0-3000 m

    Storage
    Temperature: 5-113°F / -15-45°C
    Humidity: 5-95%
    Altitude: 0-50,000' / 0-15,000 m
    Online Thermal Dissipation: 47.00 BTU/hr
    Dimensions (WxHxD) 3.5 x 7.1 x 11.9" / 88 x 180 x 302 mm
    Weight 12.1 lb / 5.5 kg
    Packaging Info
    Package Weight 14.0 lb
    Box Dimensions (LxWxH) 15.118 x 9.134 x 5.118"
    The user manual for the APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G can be downloaded in .pdf format if it did not come with your new ups backup, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other APC users keep a unique electronic library for APC ups backups, where you can use our link to download the user manual for the APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G.

    The user manual lists all of the functions of the APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G, all the basic and advanced features and tells you how to use the ups backup. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from APC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the APC BE550G Back-UPS 550 8 Outlet Surge Protector and BE550G. User manuals are also available on the APC website under Computers & Solutions - Power - UPS Backup.
