User manual Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2

Operating instructions and pdf manual for use - Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2 User manual, User manual Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2, Areca, ARC-8050T2, 8-Bay, Thunderbolt, 2, RAID,


User manual for Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2
  • Manufacturer: Areca
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Hard Drive Enclosures & Docks
  • Safety instructions
  • Startup and operation of the hard drive enclosures & docks
  • Tips for setting up your Areca
  • Settings and expert assistance
  • Contact Areca service
  • Troubleshooting
  • Warranty information
Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2 Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2
Click to enlarge image

We recommend checking out our discussion threads on the Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2, which address similar problems with connecting and setting up Hard Drive Enclosures & Docks Areca.



User manual for the Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2

The user manual for the Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2 provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Enclosures & Docks.

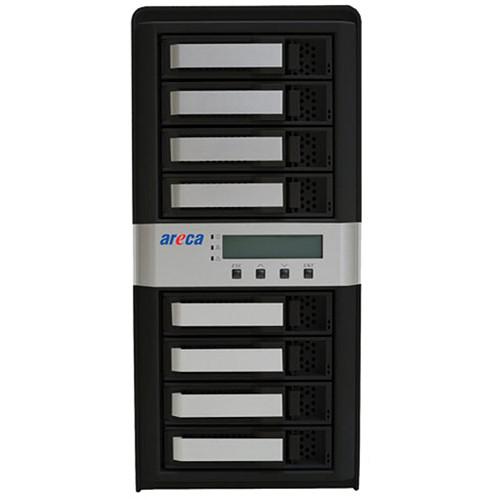

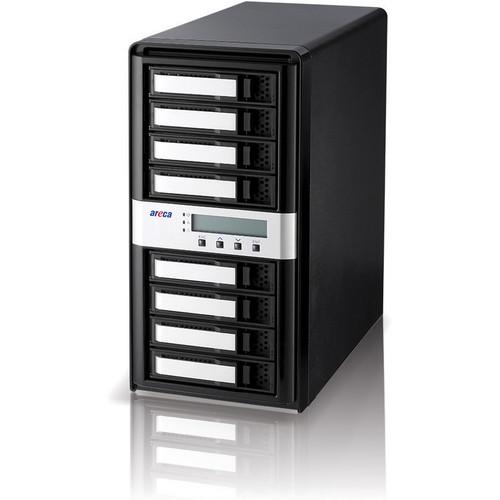

The ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure from Areca is an 8-bay enclosure that is capable of holding both 2.5" and 3.5" SAS and SATA 6 Gb/s hard drives and solid state drives. The back of the enclosure features two 20 Gb/s Thunderbolt 2 ports allowing you to connect the enclosure to computers running Mac 10.8.5 or higher and computers running either Windows 7 or Windows 8. Once connected, you benefit from enhanced Thunderbolt 2 connectivity and the ability to daisy-chain up to six compatible peripheral devices.

This eight bay Areca Thunderbolt RAID enclosure also comes with extensive RAID level compatibility. Whether you are looking for speed or redundancy, you can configure the drives to suit your needs as the enclosure supports a variety of RAID levels including RAID 0,1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk, or JBOD.

To back up the enhanced connectivity and advanced RAID features, this Areca enclosure comes equipped with an 800 MHz dual core ROC for RAID core and SAS microcode. Along with the enhanced processing power, you benefit from 1GB of on-board DDR3-1333 SDRAM to ensure smooth operation when working with data intensive applications. Additionally, this enclosure can be monitored through a variety of methods including via the front facing LCD, the LAN port, or via the Thunderbolt 2 port.

Please note drives sold separately.
If you own a Areca hard drive enclosures & docks and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2Download user manual for Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2
(PDF file, 11.45 MB)
Additional parameters of the Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2:
Capacity Diskless
Drives Diskless
Processor 800 MHz dual core ROC for RAID core and SAS microcode
RAM 1 GB on-board DDR3-1333 SDARM with ECC protection
System Status Monitor System status indication through LCD, LED and alarm buzzer
Power On/Off Intelligent power On/Off function
RAID RAID level 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD
Form Factor 8 bay disk tower
Host Connection 2 x Thunderbolt 2 ports
Disk Support 8 x 6 Gb/s SAS/SATA/ 3.5"/2.5" HDDs/SSDs
Enclosure Management Thunderbolt port, LAN port, and LCD
Cooling Fan 2 x 2700 rpm / 0.135A brushless fan
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95% non-condensing
Power Supply 270 W / 90-256 VAC /
+12 V/26 A, +5 V/18 A, +3.3 V/16 A
OS Support Mac OS X 10.8.5 or higher
Windows 7 / Windows 8
System Requirements Computer with Thunderbolt connector
Thunderbolt cable
Dimensions (WxHxD) 5.7 x 11.8 x 11.4" / 146 x 302 x 290 mm
Weight 14.9 lb / 6.8 kg
Packaging Info
Package Weight 17.85 lb
Box Dimensions (LxWxH) 15.3 x 13.9 x 7.5"
The user manual for the Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2 can be downloaded in .pdf format if it did not come with your new hard drive enclosures & docks, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Areca users keep a unique electronic library for Areca hard drive enclosures & dockss, where you can use our link to download the user manual for the Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2.

The user manual lists all of the functions of the Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2, all the basic and advanced features and tells you how to use the hard drive enclosures & docks. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Areca service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Areca ARC-8050T2 8-Bay Thunderbolt 2 RAID Enclosure ARC-8050T2. User manuals are also available on the Areca website under Computers & Solutions - Drives & Storage - Hard Drive Enclosures & Docks.
