User manual for Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H
- Manufacturer: Arecont Vision
- Basic description and contents of package
- Product classification: Surveillance - Surveillance Video - Wired IP Cameras
- Safety instructions
- Startup and operation of the wired ip cameras
- Tips for setting up your Arecont Vision
- Settings and expert assistance
- Contact Arecont Vision service
- Troubleshooting
- Warranty information
- Price: 749 USD
|
We recommend checking out our discussion threads on the Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H,
which address similar problems with connecting and setting up Wired IP Cameras Arecont Vision.
|
User manual for the Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H
The user manual for the Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

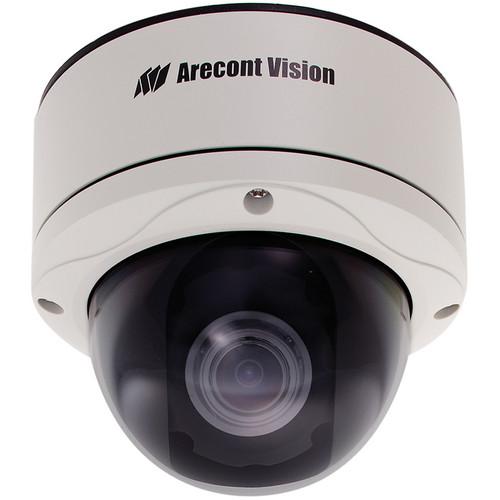

The Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & Night IP Camera with Heater is an all-in-one H.264 solution with an integrated megapixel IP dome camera. It records high-definition videos at a resolution of 3 Mp.
|
If you own a Arecont Vision wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H:
| Sensor | 3 Mp effective CMOS image sensor
1/2.5" optical format
2.2 μm pixel pitch | | Minimum Illumination | Color (Non-Binned): 0.3 lux @ F1.8
Color (Binned): 0.15 lux @ F1.8
Day & Night: 0 lux, IR sensitive | | Dynamic Range | 70.1 dB | | SNR | 44.1 dB (maximum) | | Resolution | 3 Mp
FOV (Full Field of View) Resolution
Full FOV Resolution: 2592 (H) x 1944 (V)
1/4 Resolution: 1296 (H) x 972 (V)
Cropped (FOV) Resolution
2560 x 1600 QWXGA
2048 x 1536 3 Mp
1920 x 1080 HDTV-1080p
1280 x 1024, 1.3 Mp
1280 x 720, HDTV - 720p
640 x 480 VGA | | Data Transmission | Video frame Rate
14 fps @ 2592 x 1944
16.5 fps @ 2560 x 1600
21 fps @ 2048 x 1536
29 fps @ 1920 x 1080
41 fps @ 1280 x 1024
In Binned Mode
34 fps @ 1296 x 972
41 fps @ 1280 x 800
47 fps @ 1024 x 768
64 fps @ 960 x 540
64 fps @ 640 x 512 | | Compression | H.264 (MPEG-4, Part 10) / Motion JPEG
21 levels of quality | | Protocols | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP image transmission protocols | | Network Interface | 100Base-T Ethernet | | Streaming | Multi-Streaming: 8 non-identical streams | | Certifications | Compliance: Class A FCC, Part 15; EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RoHS, REACH, IK-10 (EN62262), IP66 (EN60529)
CE Mark
Industry Standard: PSIA and ONVIF compliant | | Lens | 3.6 to 9 mm, F1.8, remote focus, zoom and auto-iris lens | | Field of View | Horizontal: 96 to 36° | | Electrical | Power over Ethernet (PoE): PoE 802.3af for the camera
Auxiliary Power: 12 to 48 VDC, 24 VAC | | Power Consumption | Heater: 2.28 W maximum | | Switch | Heater
On: 32.9°F (4°C)
Off: 43.7°F (6.5°C) | | PoE | Heater
Total PoE Solution: No external power requirement | | Temperature | Operating: -40 to 122°F (-40 to 50°C)
Stable Image: 32 to 122°F (0 to 50°C)
Storage: -40 to 140°F (-40 to 60°C) | | Humidity | 0 to 90% (non condensing) | | Casing | Die-cast aluminum chassis with 4.0" (101.6 mm) polycarbonate dome bubble
IP66 weather-proof standard
Vandal resistant, IK10 rated | | Dimensions (Ø x H) | 5.5 x 4.9" (140.3 x 124.6 mm)
Bubble only: 4.0 x 2.4" (102.0 x 61.8 mm) | | Weight | 2.25 lb (1.02 kg) | | Package Weight | 3.25 lb | | Box Dimensions (LxWxH) | 8.425 x 7.795 x 6.221" | |
The user manual for the Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H can be downloaded in .pdf
format if it did not come with your new wired ip cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Arecont Vision users keep a unique electronic library
for Arecont Vision wired ip camerass,
where you can use our link to download the user manual for the Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H.
The user manual lists all of the functions of the Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H,
all the basic and advanced features and tells you how to use the wired ip cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Arecont Vision service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H. User manuals are also
available on the Arecont Vision website under Surveillance - Surveillance Video - Wired IP Cameras.
Question and answer discussion forum concerning user instructions and resolving problems with the Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H - no comments have been made yet - be the first to add a comment
Post new comment/question/response regarding the Arecont Vision AV3255AM-H MegaDome2 3 Mp Day & AV3255AM-H
|
|
|
|
|
