User manual Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S

Operating instructions and pdf manual for use - Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S User manual, User manual Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S, Arecont, Vision, MegaView, 2, Series, 2.07MP, AV2225PMTIR-S,


User manual for Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S

Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S
  • Manufacturer: Arecont Vision
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Arecont Vision
  • Settings and expert assistance
  • Contact Arecont Vision service
  • Troubleshooting
  • Warranty information
  • Price: 892 USD

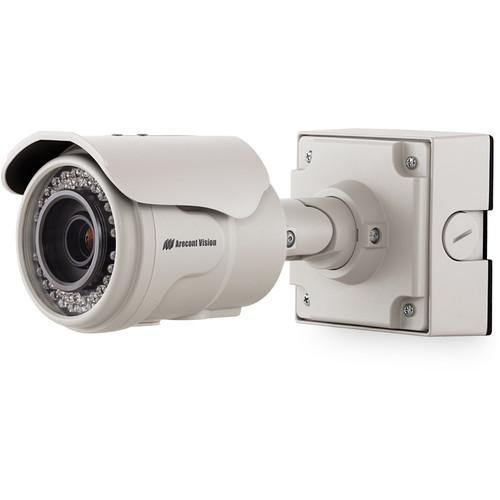

Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S
Click to enlarge image

We recommend checking out our discussion threads on the Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S, which address similar problems with connecting and setting up Wired IP Cameras Arecont Vision.



User manual for the Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S

The user manual for the Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The MegaView 2 Series 2.07MP Indoor/Outdoor Vandal-Resistant IR Day/Night Bullet IP Camera with 8 to 22mm Telephoto P-Iris Lens from Arecont Vision is capable of capturing images in Full HD resolution at full video frame rates of 31 fps with MegaVideo processing technology. It offers H.264 and MJPEG dual compression support with simultaneous streaming for reduced bandwidth and storage requirements while delivering full frame rates and resolution without sacrificing image quality. With bit rate control, the CPU load is decreased at both the client (decompression) side and the server/storage side, enabling lower bandwidth and storage requirements relative to MJPEG. Real Time Streaming Protocol (RTSP) allows for compatibility with media players such as Apple QuickTime, VLC, and others.
If you own a Arecont Vision wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S:
Specifications
Image Sensor 2.07 MP (1080p) CMOS
Optical Format 1/3"
Pixel Pitch 2.2 μm
Minimum Illumination Color (Day Mode): 0.1 lux
B/W (Night Mode): 0 lux, IR sensitive
Resolution Full FOV: 1920 H x 1080 V
1/4 Resolution: 960 H x 540 V
Dynamic Range 69 dB
SNR 45 dB maximum
Frame Rates At Maximum Resolution: 31 fps (1920 x 1080)
Cropped: 42 fps (1280 x 1024)
Lens Motorized 8 to 22 mm, 1/2.7", F1.6, RZ, RF, P-Iris H-FOV: 26° to 11°
Compression Type H.264 (MPEG-4, Part 10) / Motion JPEG
21 levels of quality
Protocols RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP
Network Interface 100Base-T Ethernet Network Interface
Multi-Streaming 8 non-identical streams
Compliance Industry Standard: PSIA Conformant
Listings: UL (CB)
FCC Compliance: 47 CFR 15 Class A
Environmental: RoHS, REACH, WEEE
Markings: (CE) EN55022 Class A, EN55024,EN61000-3-2, EN61000-3-3, EN60950-1
Mechanical: IP66 (EN60529)
IR Illuminator 4 x 850 nm LEDs
IR Angle: 33° (no external power required)
IR Distance 197' (60 m) maximum
Memory Card Supports 32 GB SDHC card
Power Consumption 11.3 W maximum
Alarm Input / Output General purpose opto-coupled input
Power Over Ethernet PoE 802.3af, Class 2
Auxiliary Power Input 12 to 48 VDC, 24 VAC
Casing Die-cast aluminum cylindrical (bullet-style) housing
IP66 weather-proof standard
Tamper resistant
Mount Easily adjustable 3-axis mount with 360° pan, 90° tilt, and 360° z-axis adjustment
Temperature Operating: -40 to 122°F (-40 to 50°C)
Stable Image: 32 to 122°F (0 to 50°C)
Storage: -40 to 60°F (-40 to 60°C)
Humidity 0 to 90% (non-condensing)
Dimensions (H x W x D) 4.7 x 4.7 x 11.1" (11.9 x 11.9 x 28.2 cm)
Weight 3.9 lb (1.8 kg)
The user manual for the Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Arecont Vision users keep a unique electronic library for Arecont Vision wired ip camerass, where you can use our link to download the user manual for the Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S.

The user manual lists all of the functions of the Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Arecont Vision service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Arecont Vision MegaView 2 Series 2.07MP AV2225PMTIR-S. User manuals are also available on the Arecont Vision website under Surveillance - Surveillance Video - Wired IP Cameras.
