User manual for the Arecont Vision SurroundVideo Series AV40185DN 40 Mp AV40185DN
The user manual for the Arecont Vision SurroundVideo Series AV40185DN 40 Mp AV40185DN provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

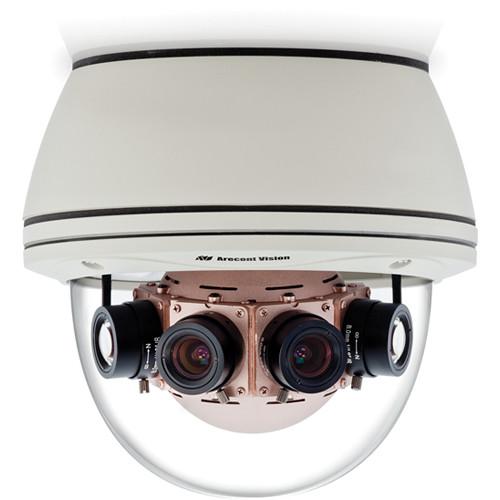

The SurroundVideo Series AV40185DN 40 Mp H.264 Day / Night 180° Panoramic IP Camera from Arecont Vision serves as an all-in-one solution for wide area video surveillance. Featuring 4 high-sensitivity 10 Mp sensors, a 7.2mm lens, and a vandal-resistant, IP66-rated water- and dust-proof dome enclosure. This camera comes in a 180° panoramic view configuration with a resolution of 40 Mp. Also, it has the ability to zoom into multiple regions of interest and can perform the task of multiple conventional cameras. Additionally, the dual encoder (H.264 & MJPEG) network camera is PoE (IEEE 802.3af) compliant.
Using the MegaVideo technology, this camera offers bandwidth and storage efficiency, and is able to output multiple image formats allowing the simultaneous viewing of a full resolution field-of-view and regions of interest for high-definition forensic zooming. Furthermore, the binning technique improves low-light performance, increases sensitivity, and produces enhanced SNR by combining and averaging pixels.
|
If you own a Arecont Vision wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Arecont Vision SurroundVideo Series AV40185DN 40 Mp AV40185DN in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Arecont Vision SurroundVideo Series AV40185DN 40 Mp AV40185DN:
| Image Sensor | 40 Mp: 4 x 10 Mp | | Horizontal Field-of-View | 180° | | Optical Format | 1/2.3" | | Pixel Pitch | 1.67 μm | | Minimum Illumination | Color: 0.42 lux
Color Binning: 0.21 lux
Day / Night: 0 lux, IR sensitive | | Resolution (H x V) | Full FOV:
Total: 14592 x 2752
Per Sensor: 3648 x 2752
1/4 Resolution:
Total: 7296 x 1376
Per Sensor: 1824 x 1376 | | Dynamic Range | 57.2 dB | | Frame Rates | At Full Resolution: 1.5 fps (14592 x 2752)
At 1/4 Resolution: 5.5 fps (7296 x 1376)
In Binning Mode: 6.5 fps (7296 x 1376) | | Lens | CS, F2.4, 7.2mm
HFOV: 47° | | Compression Type | H.264 (MPEG-4, Part 10) / Motion JPEG
21 levels of quality | | Protocols | RTSP, RTP / TCP, RTP / UDP, HTTP, DHCP, TFTP | | Network Interface | 100 Base-T Ethernet | | Multi-Streaming | 8 non-identical streams (2 per sensor) | | Input & Output | General purpose opto-coupled | | Power Over Ethernet | PoE 802.3af, Class 3 | | Power | Auxiliary Power: 12 to 48 VDC, 24 VAC | | Maximum Power Consumption | 11.7 W DC power | | Casing | Die-cast aluminum chassis with 5.5" (139.7 mm) polycarbonate dome bubble
IP66 weatherproof standard
Vandal-resistant, IK-10 rated | | Gimbal | Easily adjustable, 2-axis with 360° pan, and 90° tilt | | Operating Temperature | -22 to +122°F (-30 to +50°C) | | Stable Image Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -22 to +140°F (-30 to +60°C) | | Humidity | 0 to 90% (non-condensing) | | Dimensions (Ø x H) | Unit: 6.90 x 6.55 (175.26 x 166.37 mm)
Bubble Only: 5.5 x 3.4" (139.7 x 86.3 mm) | | Weight | 3.81 lb (1.72 kg) | |
