User manual for the Armasight Q14 TIMM 336 Thermal Imaging TAT173TIMMWS001

The user manual for the Armasight Q14 TIMM 336 Thermal Imaging TAT173TIMMWS001 provides necessary instructions for the proper use of the product Optics - Night & Thermal Vision - Thermal Imagers.

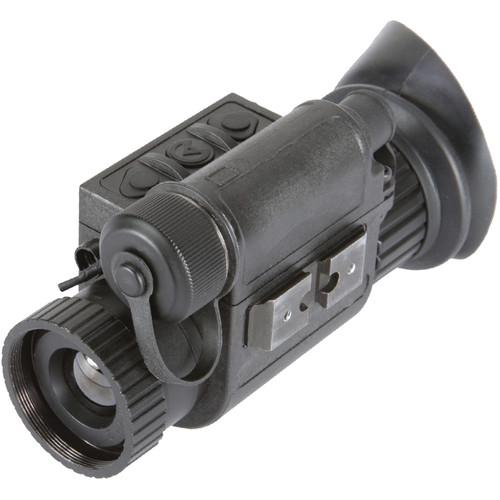

Combining strength, durability, and light weight of reinforced glass fiber with a compact size, the Q14 TIMM 336 Thermal Imaging Multipurpose Monocular from Armasight is ideal for wearing on a headgear. It features an uncooled 336x256 FLIR Quark microbolometer that allows users to detect sources of invisible to the naked eye long wavelength infrared light during day or night. For example, at night without help from visible illumination you will be able to detect running engines, hot wires, infrared lasers and lamps, live animals, humans, or other sources of heat. Additionally, because of different transmission properties of the infrared light compared to the visible light, this thermal imager will enable you to view your targets through smoke, fog, or dust.

You can view thermal profiles of your targets on a built-in AMOLED SVGA 060 color display or relay videos through a VGA video output port for viewing on an external monitor or for recording. The user-friendly menu allows you to choose between image filtering options and image processing functions that provide different color modes: White Hot, Black Hot, Rainbow, and Various Colors. Additionally, the included remote control allows for a wireless operation.

The reinforced glass fiber housing is lightweight, durable, waterproof, and submersible to 66' for two hours. To provide a sure operation, all adjustment rings are knurled. Other construction details include a tethered protective objective lens cap and a rubber winged eye guard.
If you own a Armasight thermal imagers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Armasight Q14 TIMM 336 Thermal Imaging TAT173TIMMWS001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Armasight Q14 TIMM 336 Thermal Imaging TAT173TIMMWS001:
Array Configuration 336x256 FLIR Quark VOx detector
Pixel Size 17 µm
Refresh Rate 30 Hz
Magnification 1-8x
Lens System 19mm, f/1.0
Minimum Focus Distance 08' (0.25 m)
Display 800x600 AMOLED SVGA 060 color display
Power Source 1 x CR-123A (3V) battery
Runtime 1 hr
Operating Temperature -40 to 176°F (-40 to 80°C )
Storage Temperature -58 to 221°F (-55 to 105°C)
Weatherproofing Waterproof, submersible to 66' (20 m) for 2 hr max
Dimensions 3.9 x 2.5 x 1.6" (100 x 63 x 40 mm )
Weight 18.3 oz (520 g)
The user manual for the Armasight Q14 TIMM 336 Thermal Imaging TAT173TIMMWS001 can be downloaded in .pdf format if it did not come with your new thermal imagers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Armasight users keep a unique electronic library for Armasight thermal imagerss, where you can use our link to download the user manual for the Armasight Q14 TIMM 336 Thermal Imaging TAT173TIMMWS001.

The user manual lists all of the functions of the Armasight Q14 TIMM 336 Thermal Imaging TAT173TIMMWS001, all the basic and advanced features and tells you how to use the thermal imagers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Armasight service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Armasight Q14 TIMM 336 Thermal Imaging TAT173TIMMWS001. User manuals are also available on the Armasight website under Optics - Night & Thermal Vision - Thermal Imagers.
