User manual ART MX225 - Zone Distribution Mixer MX225

Operating instructions and pdf manual for use - ART MX225 - Zone Distribution Mixer MX225 User manual, User manual ART MX225 - Zone Distribution Mixer MX225, ART, MX225, Zone, Distribution, Mixer, MX225, Video


User manual for ART MX225 - Zone Distribution Mixer MX225

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
ART  MX225 - Zone Distribution Mixer MX225
  • Manufacturer: ART
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Sound Mixers
  • Safety instructions
  • Startup and operation of the install sound mixers
  • Tips for setting up your ART
  • Settings and expert assistance
  • Contact ART service
  • Troubleshooting
  • Warranty information
  • Price: 149 USD
We recommend checking out our discussion threads on the ART MX225 - Zone Distribution Mixer MX225, which address similar problems with connecting and setting up Install Sound Mixers ART.



User manual for the ART MX225 - Zone Distribution Mixer MX225

The user manual for the ART MX225 - Zone Distribution Mixer MX225 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Sound Mixers.

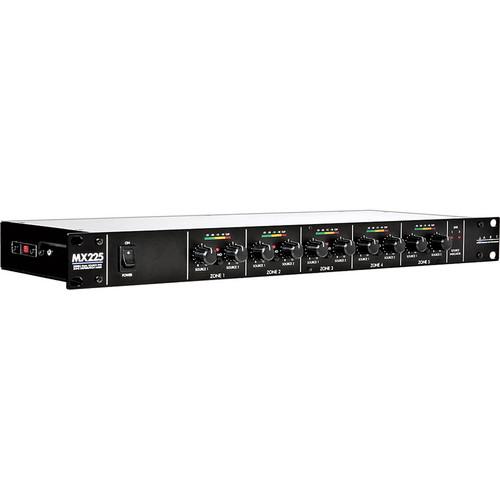

The MX225 from ART is a high-quality zone mixer with two stereo inputs and five stereo outputs. The two balanced XLR stereo inputs each get routed to all five zones. Every zone has balanced XLR stereo outputs. There are source 1 and 2 volume knobs on each of the 5 zones, with an LED audio level meter, and a button that sums the stereo signal to mono.
If you own a ART install sound mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ART MX225 - Zone Distribution Mixer MX225 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ART  MX225 - Zone Distribution Mixer MX225Download user manual for ART MX225 - Zone Distribution Mixer MX225
(PDF file, 0.08 MB)
Additional parameters of the ART MX225 - Zone Distribution Mixer MX225:
Specifications
    Inputs 4 x Balanced XLR Female Inputs (2 Stereo Inputs)
    Outputs 10 x Balanced XLR Male Outputs (5 Stereo Zones)
    Input Impedance 47k Ohms
    Output Impedance 200 Ohms
    Maximum Input Level +20 dBu Balanced
    Maximum Output Level +24 dBu Balanced
    Maximum Gain +6 dB
    # Of Rack Space 1U (One Rack Space)
    Signal to Noise Ratio >90 dB Typical
    Audio THD .05% Typical
    Power Requirements USA - 105 to 125 VAC / 50-60 Hz, 15 Watts Typical
    Dimensions 1.75 x 19.0 x 7.25" (44.5 x 483 x 184mm)
    Weight 5.34 lbs (2.42 kg)
    Packaging Info
    Package Weight 6.65 lb
    Box Dimensions (LxWxH) 21.0 x 10.5 x 3.5"
    The user manual for the ART MX225 - Zone Distribution Mixer MX225 can be downloaded in .pdf format if it did not come with your new install sound mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ART users keep a unique electronic library for ART install sound mixerss, where you can use our link to download the user manual for the ART MX225 - Zone Distribution Mixer MX225.

    The user manual lists all of the functions of the ART MX225 - Zone Distribution Mixer MX225, all the basic and advanced features and tells you how to use the install sound mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ART service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ART MX225 - Zone Distribution Mixer MX225. User manuals are also available on the ART website under Pro Audio - Installation Sound - Install Sound Mixers.
