User manual for the ART SLA-2 - 2-Channel Power Amplifier SLA-2
The user manual for the ART SLA-2 - 2-Channel Power Amplifier SLA-2 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - Power Amplifiers.

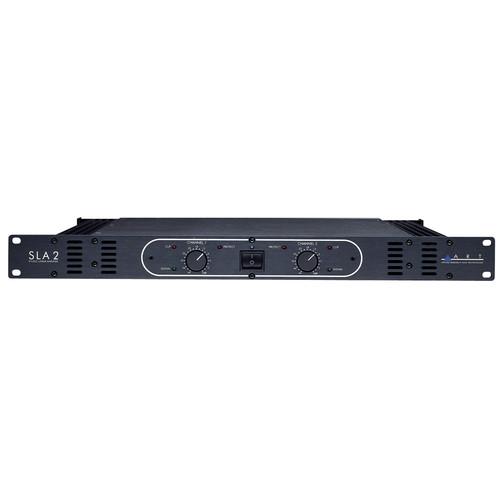

The SLA-2 from ART is a rack mountable two-channel power amplifier designed for studio use. It offers a wide frequency response with very low noise and distortion for quality audio output. XLR, 1/4", and Euroblock input connectors are provided, along with five-way binding post outputs. Each channel has its own level control on the front panel.
The SLA-2 can operate in stereo or bridged mode, and features a ground-lift switch to eliminate hum caused by ground loops. The unit offers full protection circuitry for short circuits, overloads, and overheating. If any faults are detected, the amplifier will disconnect the outputs and automatically return to normal operation when the fault is fixed. The SmartFan cooling system offers silent fan-assisted convection cooling to keep the system running reliably.
If you own a ART power amplifiers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ART SLA-2 - 2-Channel Power Amplifier SLA-2 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ART SLA-2 - 2-Channel Power Amplifier SLA-2:
| Output Power || 200W RMS Per Channel @ 8 Ohms Stereo |
280W RMS Per Channel @ 4 Ohms Stereo
560W RMS @ 8 Ohms Bridged-Mono
| Damping Factor || > 100 |
| Input Sensitivity || 1V for Full Power into 8 Ohms |
| Input Impedance || 44 kOhms, Balanced |
22 kOhms, Unbalanced
| Gain || Not Specified by Manufacturer |
| Frequency Response || 10Hz - 40kHz, ±0.5dB |
| Signal-to-Noise Ratio || Not Specified by Manufacturer |
| Total Harmonic Distortion (THD) || < 0.05% (Typical) |
| Input Connections || 2 x XLR Female |
2 x 1/4" (6.3mm) Jacks
1 x 6-Pin Removable Terminal Block
1 x AC Power In
| Output Connectors || 4 x 5-Way Binding Posts (2 Per Channel) |
| Controls Front Panel || 1 x Power Switch |
2 x Level Control Knobs
| Controls (Rear) || 1 x Stereo/Bridge Mode Selector Switch |
1 x Ground-Lift Switch
| Indicators || 1 x Blue Power LED |
2 x Red Protect LEDs
2 x Red Clip LEDs
2 x Green Signal LEDs
| Cooling || SmartFan Convection Cooling, Silent Fan-Assisted System |
| Power || 120VAC, 60Hz, 1000W (Max) |
| Dimensions (WxHxD) || 19 x 1.75 x 13.5" (483 x 44 x 343mm) |
| Weight || 19.8 lbs (9 kg) |
| Package Weight || 22.2 lb |
| Box Dimensions (LxWxH) || 23.25 x 17.65 x 4.75" |
The user manual for the ART SLA-2 - 2-Channel Power Amplifier SLA-2 can be downloaded in .pdf
format if it did not come with your new power amplifiers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other ART users keep a unique electronic library
for ART power amplifierss,
where you can use our link to download the user manual for the ART SLA-2 - 2-Channel Power Amplifier SLA-2.
The user manual lists all of the functions of the ART SLA-2 - 2-Channel Power Amplifier SLA-2,
all the basic and advanced features and tells you how to use the power amplifiers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from ART service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the ART SLA-2 - 2-Channel Power Amplifier SLA-2. User manuals are also
available on the ART website under Pro Audio - Live Sound - Power Amplifiers.
