User manual Ashly MX206 Stereo Microphone Mixer MX-206

Operating instructions and pdf manual for use - Ashly MX206 Stereo Microphone Mixer MX-206 User manual, User manual Ashly MX206 Stereo Microphone Mixer MX-206, Ashly, MX206, Stereo, Microphone, Mixer, MX-206, Video


User manual for Ashly MX206 Stereo Microphone Mixer MX-206

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Ashly  MX206 Stereo Microphone Mixer MX-206
  • Manufacturer: Ashly
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Sound Mixers
  • Safety instructions
  • Startup and operation of the install sound mixers
  • Tips for setting up your Ashly
  • Settings and expert assistance
  • Contact Ashly service
  • Troubleshooting
  • Warranty information
  • Price: 575 USD
We recommend checking out our discussion threads on the Ashly MX206 Stereo Microphone Mixer MX-206, which address similar problems with connecting and setting up Install Sound Mixers Ashly.



User manual for the Ashly MX206 Stereo Microphone Mixer MX-206

The user manual for the Ashly MX206 Stereo Microphone Mixer MX-206 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Sound Mixers.

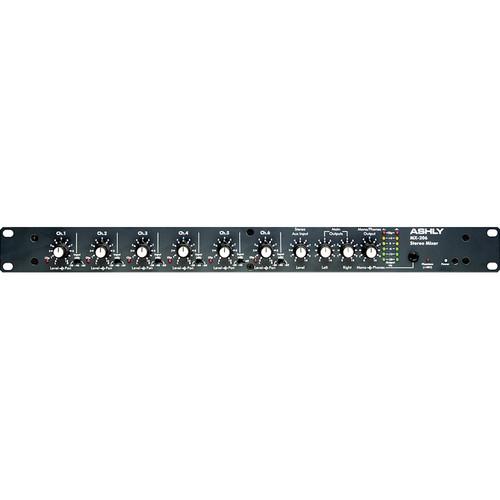

The Ashly MX-206 Stereo Microphone Mixer is a 6-input microphone mixer designed to supplement larger consoles or for use as a stand alone mixer in sound-reinforcement and portable installations. The MX-206 features 6 studio grade, low-noise XLR 3-pin microphone preamps. Each input features a 20dB Pad switch that avoid signal overload due to excessive gain.
If you own a Ashly install sound mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ashly MX206 Stereo Microphone Mixer MX-206 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ashly MX206 Stereo Microphone Mixer MX-206:
Total # Of Inputs 6 - Balanced 3-pin XLR
Mic/Line Inputs 6 - Balanced 3-pin XLR Microphone Inputs
Stereo Line Inputs No
In-Line Inputs/Returns not applicable
AUX Sends No
AUX Returns No
Inserts No
BUS (Group) Outputs Stereo output bus only
2 Trk Master I/O Master Output: L/R Balanced 1/4" TRS Phone Tape I/O: L/R RCA Phono
ALT I/O Mono Output: Balanced 3-pin XLR
Monitor Outputs Headphone Output: 1/4" TRS Phone
EQ Section No
Solo/Mute Individual channel Mute switches & Stereo Output Mute switch
Channel Level Control Sealed Rotary Potentiometers (POTS)
Trim/Gain Control same as Channel Level
Phantom Power not applicable
Metering VU Meters: Two 5-segment LED meters. 0 VU = +4dBu
Peak Indicators: Left and right peak clip indicators
Frequency Response +/- 0.2dB 20Hz - 20kHz
Dynamic Range Not Specified by Manufacturer
Signal-to-Noise Ratio (20Hz - 20kHz noise bandwidth):
-100dBu residual output noise, all level at minimum
-87dBu master out, master level and one input level at unity gain
Total Harmonic Distortion (THD) Less than 0.02% THD @ +20dBu, 20Hz - 20kHz
Power Supply 120VAC nominal, 93VAC minimal, 50-60Hz, 12 watts (240VAC available)
Dimensions 19 x 1.75 x 6.6" (482.60 x 44.45 x 167.64mm) (WxHxD)
Weight 8 lbs (3.63 kg)
Packaging Info
Package Weight 10.45 lb
Box Dimensions (LxWxH) 24.0 x 15.0 x 3.0"
The user manual for the Ashly MX206 Stereo Microphone Mixer MX-206 can be downloaded in .pdf format if it did not come with your new install sound mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ashly users keep a unique electronic library for Ashly install sound mixerss, where you can use our link to download the user manual for the Ashly MX206 Stereo Microphone Mixer MX-206.

The user manual lists all of the functions of the Ashly MX206 Stereo Microphone Mixer MX-206, all the basic and advanced features and tells you how to use the install sound mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ashly service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ashly MX206 Stereo Microphone Mixer MX-206. User manuals are also available on the Ashly website under Pro Audio - Installation Sound - Install Sound Mixers.
