User manual for the Ashly MX508 Stereo Microphone Mixer MX-508

The user manual for the Ashly MX508 Stereo Microphone Mixer MX-508 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Sound Reinforcement Mixers.

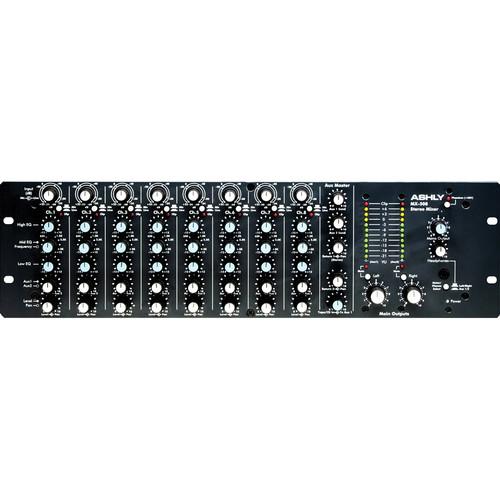

The Ashly MX-508 is a full featured stereo audio mixer designed for recording and sound reinforcement applications. The MX-508 features 8 channels with stereo 1/4" TRS line level inputs on each channel. In addition every channel features balanced 3-pin XLR microphone inputs with globally switched +48V phantom power.
If you own a Ashly sound reinforcement mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ashly MX508 Stereo Microphone Mixer MX-508 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ashly MX508 Stereo Microphone Mixer MX-508:
Total # Of Inputs 8 Total Stereo Inputs
Mic/Line Inputs 8 Line: Stereo 1/4" TRS Phone single TRS stereo inputs
8 Microphone: XLR 3-pin Female
Stereo Line Inputs all 8 channels feature stereo line inputs
In-Line Inputs/Returns No
AUX Sends 2 AUX Sends: 1/4" TRS Phone
Maximum Voltage Gain - 76dB +/- 2dB Mic Input to Aux Master 1 Out, pre ch. level
AUX Returns 2 AUX Returns: Stereo 1/4" TRS Phone 1-stereo & 1-mono both, pannable
Maximum Voltage Gain - 92dB +/- 2dB Mic Input to Aux Master 2 Out, pre ch. level
Inserts Channels 1 - 8
Send: 1/4" TRS Phone
Return: 1/4" Phone
BUS (Group) Outputs stereo output bus only
2 Trk Master I/O L/R Stereo 3-pin XLR male transformer balanced
ALT I/O Tape In: L/R RCA Phono
Tape Out: L/R RCA Phono
Monitor Outputs L/R Stereo 1/4" Phone
EQ Section Low: +/- 12dB @ 70Hz, shelving
Mid: +/- 12dB peaking, 140Hz - 8kHz
High: +/- 12dB @ 15kHz, shelving
Solo/Mute Individual Mute switches on stereo (L/R) outputs.
Channel Level Control Sealed Rotary Potentiometers (POTS)
Trim/Gain Control Sealed Rotary Potentiometers (POTS)
84dB channel input to program output
Phantom Power +48V Global Switched
Metering VU Meters: Two 10-segment LED meters
Peak Indicators: Clip Indicator on every input
Frequency Response 20Hz to 20kHz, +0.5 / -1.0dB
Dynamic Range Not Specified by Manufacturer
Signal-to-Noise Ratio 20Hz to 20kHz noise bandwidth
<-129dbu equivalent input hum and noise w>
Total Harmonic Distortion (THD) <0.05% @ +4dBu, 20Hz to 20kHz
<0.05% @ +20dBu, 30Hz to 10kHz
Power Supply 120VAC nominal, 50-60Hz, 35 watts
93VAC minimum (240VAC available)
Dimensions 19 x 5.25 x 9.6" 48.26 x 13.335 x 24.384cm (WxHxD)
Weight 23 lbs (10.43kg)
Packaging Info
Package Weight 18.15 lb
Box Dimensions (LxWxH) 24.8 x 15.0 x 6.1"
The user manual for the Ashly MX508 Stereo Microphone Mixer MX-508 can be downloaded in .pdf format if it did not come with your new sound reinforcement mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ashly users keep a unique electronic library for Ashly sound reinforcement mixerss, where you can use our link to download the user manual for the Ashly MX508 Stereo Microphone Mixer MX-508.

The user manual lists all of the functions of the Ashly MX508 Stereo Microphone Mixer MX-508, all the basic and advanced features and tells you how to use the sound reinforcement mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ashly service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ashly MX508 Stereo Microphone Mixer MX-508. User manuals are also available on the Ashly website under Pro Audio - Live Sound - Sound Reinforcement Mixers.
