User manual for the Astro Design Inc SC-2065 Flexible Scan Converter SC-2065

The user manual for the Astro Design Inc SC-2065 Flexible Scan Converter SC-2065 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Signal Converters.

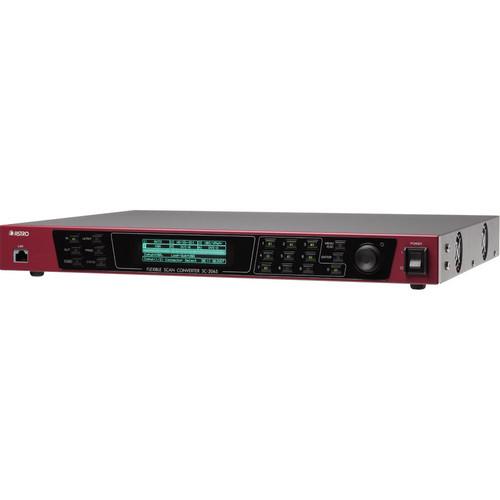

The Astro Design Inc SC-2065 Flexible Scan Converter enables you to perform conversions between various format signals, interface, and aspect ratio conversions. Supporting a wide range of input interfaces such as HD/SD-SDI, DVI-D, YPbPr, RGB, and VBS, it is suitable for a wide variety of input signal formats. Using 12-bit per-pixel motion adaptive IP conversion technology with unique edge improving filter and TERA, and 12-bit scaling technology with zooming rate adaptive coefficient filter, the all-in-one flexible converter also includes astrosnap, which consistently delivers high quality outputs.

Featuring a flexible masking layout, the SC-2065 Flexible Scan Converter allows trimming of desired input area and allows user defined output positioning functions suitable for applications like image editing, impressive presentation, specific event, large scale display system, etc. It offers an easy menu operation with a simple menu and large display and includes buttons on the front, for ease of access to frequently used setting such as in, out and layout. In addition, it includes features such as web based GUI controller (future support), system parameter saving, input timing auto sense, etc.
If you own a Astro Design Inc signal converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Astro Design Inc SC-2065 Flexible Scan Converter SC-2065 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Astro Design Inc SC-2065 Flexible Scan Converter SC-2065:
Specifications
    HD-SDI Interface Scanning: progressive/interlace
    Input:1 BNC 1-channel with monitor out
    Output: BNC 2-channel
    Signal: SMPTE292M
    Timing: 1080i60/59.94/50, 1080p30/29.97/25/24/23.98, 720p60/59.94/50/30/29.97/25/24/23.97
    Color: YPbPr (SMPTE240M, 274M, 296M)
    Bit depth: 10bit
    SD-SDI Interface Scanning: interlace
    Input BNC 1-channel with monitor out (common with HD-SDI)
    Output: BNC 2-channel (common with HD-SDI)
    Signal: SMPTE259M-C
    Timing: 525i59.94, 625i50
    Color: YCbCr (SMPTE125M)
    Bit depth: 10bit
    YPbPr Interface Scanning: interlace
    Input: BNC 1-channel
    Output: BNC 1-channel
    Color: YPbPr, Y/R-Y/B-Y
    Bit depth: 10bit
    VBS Interface Scanning: interlace
    Input: BNC 1-channel (common with Y)
    Output: BNC 1-channel (common with Y)
    Color: NTSC, PAL
    Bit depth: 10bit
    DVI-D Interface Scanning: progressive/interlace
    Input: DVI-I 1-channel
    Output: DVI-I 1-channel
    Pixel clock: 25-165MHz
    H/V frequency: 15-110KHz / 24-150Hz
    Resolution: 2560 x 1536
    Color: RGB, YPbPr
    Bit depth: 8bit
    DDC: supported
    HDCP: not supported
    VGA Interface Scanning: progressive/interlace
    Input: D-sub 15pin 1-channel with monitor out
    Output: D-sub 15pin 1-channel
    Pixel clock: 25-165MHz
    H/V frequency: 15-110KHz / 24-150Hz
    Resolution: 2560 x 1536
    Color: RGB, YPbPr, YCbCr
    Bit depth: 10bit
    Control RS-232C via D-sub 9pin
    External Sync HS/VS TTL: negative
    CS: bi-level (0.3Vp-p) and tri-level (0.6Vp-p)
    General
    Power Supply Voltage 100-240V AC
    Power Consumption 75W
    Operating Temperature Range 41 to 104° F (5 to 40° C)
    Dimensions (W x H x D) 17 x 1.73 x 13.77" (430 x 44 x 350 mm)
    1U size (excluding projected parts)
    Weight Approximately 8.8 lb (4 kg)
    The user manual for the Astro Design Inc SC-2065 Flexible Scan Converter SC-2065 can be downloaded in .pdf format if it did not come with your new signal converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Astro Design Inc users keep a unique electronic library for Astro Design Inc signal converterss, where you can use our link to download the user manual for the Astro Design Inc SC-2065 Flexible Scan Converter SC-2065.

    The user manual lists all of the functions of the Astro Design Inc SC-2065 Flexible Scan Converter SC-2065, all the basic and advanced features and tells you how to use the signal converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Astro Design Inc service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Astro Design Inc SC-2065 Flexible Scan Converter SC-2065. User manuals are also available on the Astro Design Inc website under Professional Video - Signal Processing & Distribution - Signal Converters.
