User manual ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ

Operating instructions and pdf manual for use - ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ User manual, User manual ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ, ASUS, Designo, MX27AQ, 27, WQHD, AH-IPS, LED-Backlit, MX27AQ,


User manual for ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
ASUS Designo MX27AQ 27
  • Manufacturer: ASUS
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your ASUS
  • Settings and expert assistance
  • Contact ASUS service
  • Troubleshooting
  • Warranty information
  • Price: 420 USD
We recommend checking out our discussion threads on the ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ, which address similar problems with connecting and setting up Computer Monitors ASUS.



User manual for the ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ

The user manual for the ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

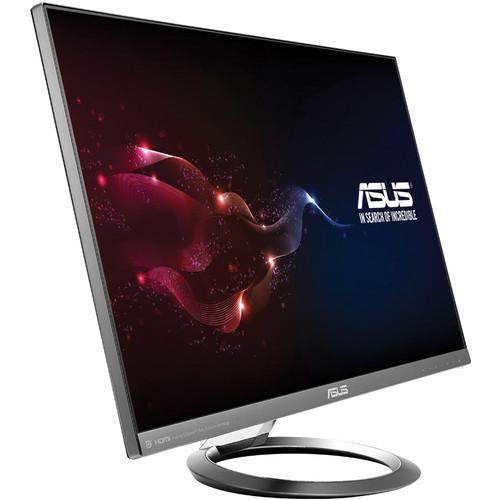

The Designo MX27AQ 27" WQHD AH-IPS LED-Backlit Display from ASUS is a multi-purpose LED-backlit display that has been designed for gaming, document, photo, graphics work, multimedia, and more. With a WQHD resolution of 2560 x 1440, it provides more workable screen area and sharper images as compared to a Full HD 1920 x 1080 display. This display features IPS technology and has a 5 ms (gray to gray) response time, a 100,000,000:1 ASUS Smart Contrast Ratio, 300 cd/m2 brightness, 178° / 178° viewing angles, -5 ~ 20° tilt, and support for 16.7 million colors.

This WQHD display also features 2 x 3W stereo speakers that are 25mm in diameter and have been co-developed with ICEpower and Bang & Olufsen. They also are equipped with ASUS SonicMaster audio technology and an AudioWizard allows users to select from four preset audio modes to tailor audio output. Connectivity options are provided using the 2 x HDMI ports, 1 x HDMI/MHL port, and 1 x DisplayPort 1.2 port. There are also 3.5mm audio input and output jacks. In order to help protect your eyes, ASUS has designed this display with ASUS Eye Care technology, which includes flicker-free technology and a blue light filter.

The Designo MX27AQ operates using 100-240V at 50/60 Hz, allowing it to be used worldwide. It includes a power cord, a power adapter, and an HDMI cable.
If you own a ASUS computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ASUS Designo MX27AQ 27Download user manual for ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ
(PDF file, 1.88 MB)
Additional parameters of the ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ:
Specifications
    Display
    Panel Size 27" / 68.58 cm
    Aspect Ratio (Widescreen) 16:9
    Color Saturation 100% (sRGB)
    Panel Backlight / Type AH-IPS
    True Resolution 2560 x 1440
    Pixel Pitch 0.233 mm
    Brightness 300 cd/m2 (max)
    ASUS Smart Contrast Ratio (ASCR) 100,000,000:1
    Viewing Angle (CR≥10) 178° (H) / 178° (V)
    Response Time 5 ms (Gray to Gray)
    Display Colors 16.7 million
    Flicker Free Yes
    Video Features
    SPLENDID Video Preset Modes 8 Modes (sRGB Mode / Scenery Mode / Theater Mode / Standard Mode / Night View Mode / Game Mode / Reading Mode / Darkroom Mode)
    Skin-Tone Selection 3 Modes
    Color Temperature Selection 4 Modes
    QuickFit (modes) Yes (Letter/A4/Alignment Grid/Photo Modes)
    GamePlus (modes) Yes (Crosshair/Timer)
    Low Blue Light Yes
    HDCP Support Yes
    VividPixel Yes
    Audio Features
    Stereo Speakers 2 x 3 W Stereo RMS with ASUS SonicMaster audio technology and ICEpower | Bang & Olufsen technology
    AudioWizard Preset Sound modes 4 Modes (Gaming mode / Movie mode / Music mode / User mode)
    Convenience Features
    Convenient Hotkey Blue Light Filter
    Volume Adjustment
    Input Selection
    QuickFit
    I/O Port
    Signal Input 2 x HDMI
    1 x HDMI/MHL
    1 x DisplayPort 1.2
    PC Audio Input 3.5 mm Mini-Jack
    AV Audio Input HDMI, DisplayPort
    Earphone Jack 3.5 mm Mini-Jack
    Signal Frequency
    Digital Signal Frequency 28~83 kHz (H) / 50~75 Hz (V)
    Power Consumption
    Power On < 38.67 W (based on EnergyStar 6.0 standard)
    Power Saving < 0.5 W
    Power Off < 0.5 W
    Voltage 100-240V, 50/60Hz
    Mechanical Design
    Chassis Compatibility Space Gray + Black
    Tilt -5 ~ 20°
    Slim Design Yes
    Frameless Design Yes
    Security
    Kensington Lock Support Yes
    General
    Regulation Approval Energy Star, BSMI, CB, CCC, CE, CU, EPEAT (Gold) by region , ErP, FCC, ISO-9241-307, J-MOSS, KCC, PSE, RoHS, UL/cUL, VCCI, WEEE, WHQL (Windows 8, Windows 7), RCM, TUV Flicker-free , eStandby, TUV Low Blue Light
    Dimensions & Weight
    Dimensions 24.2 x 16.9 x 8.9" / 614.4 x 429.5 x 225.4 mm
    Weight 12.1 lb / 5.5 kg
    Packaging Info
    Package Weight 16.6 lb
    Box Dimensions (LxWxH) 27.8 x 21.4 x 4.8"
    The user manual for the ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ASUS users keep a unique electronic library for ASUS computer monitorss, where you can use our link to download the user manual for the ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ.

    The user manual lists all of the functions of the ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ASUS service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ASUS Designo MX27AQ 27" WQHD AH-IPS LED-Backlit MX27AQ. User manuals are also available on the ASUS website under Computers & Solutions - Monitors & Displays - Computer Monitors.
