User manual ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P

Operating instructions and pdf manual for use - ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P User manual, User manual ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P, ASUS, VS228T-P, 21.5, Full, HD, LED, Monitor, Black, VS228T-


User manual for ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P

ASUS VS228T-P 21.5
  • Manufacturer: ASUS
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your ASUS
  • Settings and expert assistance
  • Contact ASUS service
  • Troubleshooting
  • Warranty information
  • Price: 99 USD
We recommend checking out our discussion threads on the ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P, which address similar problems with connecting and setting up Computer Monitors ASUS.



User manual for the ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P

The user manual for the ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

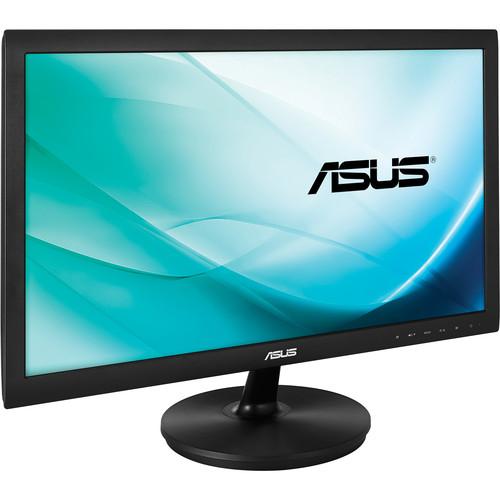

The black VS228T-P 21.5" Full HD LED Monitor from ASUS with 50,000,000:1 high contrast ratio and HDCP support is optimized for enhanced image and color quality. It comes with a sturdy stand and has a slim profile thus, ensuring stability and durability. The ASUS Smart Contrast Ratio enhances the display's contrast by adjusting the luminance of the backlight to achieve the darkest black and brightest white, delivering life-like images.
If you own a ASUS computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for ASUS VS228T-P 21.5Download user manual for ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P
(PDF file, 2.3 MB)
Additional parameters of the ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P:
Specifications
    Panel/Display
    Size Wide screen 21.5" (54.6 cm)
    Aspect Ratio 16:9
    Resolution 1920 x 1080
    Pixel Pitch 0.248 mm
    Brightness Maximum: 250 cd/m 2
    Contrast Ratio Maximum: 1,000:1
    ASUS Smart Contrast Ratio: 50,000,000:1
    Viewing Angle (CR≧10) Horizontal: 170°
    Vertical: 160°
    Response Time 5 ms
    Display Colors 16.7 M
    Signal Frequency
    Analog Signal Horizontal: 30 to 83 KHz
    Vertical: 50 to 75 Hz
    Digital Signal Horizontal: 30 to 83 KHz
    Vertical: 50 to 75 Hz
    Input/Output Connectors
    Video Input D-Sub and DVI-D
    Audio Out 3.5 mm mini-jack
    Special Features
    Video Splendid Video Intelligence technology
    Splendid Video Preset Modes: 6 modes
    Skin-Tone Selection: 3 modes
    Color Temperature Selection: 4 modes
    HDCP support
    Audio Stereo Speakers: 2 x 1 W stereo RMS
    General
    Power Consumption Power On Mode: <30 w*
    Power Saving Mode: <0.5 W
    Power Off Mode: <0.5 W

    *Based on Energy Star 6.0 standard

    Convenient Hotkey Splendid video preset mode selection
    Auto adjustment
    Brightness adjustment
    Contrast adjustment
    Volume adjustment
    Security Kensington lock
    Tilt +20 to -5°
    VESA 100 x 100 mm
    Regulatory Approvals Energy Star, CB, CE, EPEAT (Gold, Silver) by region, ErP, FCC, J-MOSS, RoHS, UL/cUL, VCCI, WEEE, WHQL (Windows 7, Windows Vista)
    Dimensions (W x H x D) With Stand: 20.2 x 15.2 x 7.9" (514.1 x 385.5 x 200.0 mm)
    Without Stand: 20.2 x 12.4 x 1.8" (514.1 x 315.1 x 45.0 mm)
    Weight 6.8 lb (3.1 kg)
    Packaging Info
    Package Weight 10.0 lb
    Box Dimensions (LxWxH) 22.0 x 17.5 x 5.0"
    The user manual for the ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ASUS users keep a unique electronic library for ASUS computer monitorss, where you can use our link to download the user manual for the ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P.

    The user manual lists all of the functions of the ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ASUS service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ASUS VS228T-P 21.5" Full HD LED Monitor (Black) VS228T-P. User manuals are also available on the ASUS website under Computers & Solutions - Monitors & Displays - Computer Monitors.
