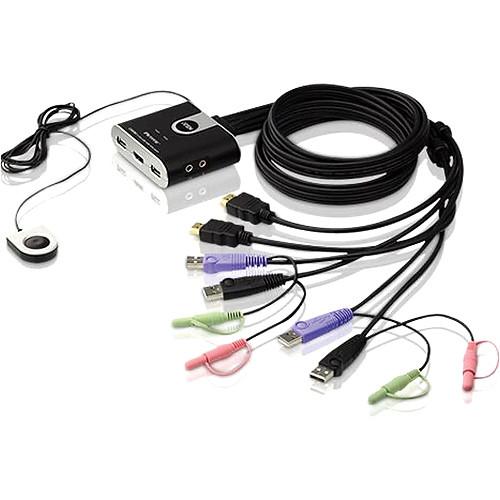

The CS692 2-Port USB USB HD Video/Audio KVM Switch from ATEN links two HDMI enabled PCs or devices to a single USB keyboard, USB mouse, and HDMI display. The CS692 switch offers HDMI functionality, USB 2.0 peripheral sharing, and 2.1 surround audio. The remote port selector allows you to control port switching from your desktop while the switch is stored away allowing for a more organized workspace. The switch's DynaSync™ technology, various compatible keyboards and mice, along with the other features are designed to enhance user-friendly operations.
If you own a ATEN kvm switches and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ATEN CS692 2-Port USB USB HD Video/Audio KVM Switch CS692 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ATEN CS692 2-Port USB USB HD Video/Audio KVM Switch CS692:
Specifications
Connections
Computer: 2 Console: 1
Console Port Connectors
Keyboard: 1 x USB Type A Female (Silver) Video: 1 x HDMI Type A Female (Black) Mouse: 1 x USB Type A Female (Silver) Speakers: 1 x Mini Stereo Jack Female (Green) Microphone: 1 x Mini Stereo Jack Female (Pink)
KVM Port Connectors
Keyboard: 2 x USB Type A Male (Purple) Video: 2 x HDMI Type A Male (Black) Mouse: 2 x USB Type A Male (Black) Speakers: 2 x Mini Stereo Plug Male (Green) Microphone: 2 x Mini Stereo Plug Male (Pink)
LEDs
KVM: 2 (Green)
Cable Length
KVM: 2 x 4.0' (1.2 m) Remote Port Selector: 1 x 6.0' (1.8 m)
Emulation
Keyboard/Mouse: USB
Video Resolution
1080 p; 1920 x 1200
Scan Interval
3, 5, 10, 20 sec (default 5 sec)
Port Selection
Remote port selector, Mouse, Hotkeys
Housing
Plastic
Compatible Operating Systems
Windows, Mac, and Linux
Dimensions (L x W x H)
2.6 x 3.2 x 1.1" (6.7 x 8.2 x 2.7 cm)
Weight
2.0 lb (0.9 kg)
