User manual Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH

Operating instructions and pdf manual for use - Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH User manual, User manual Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH, Atlas, Sound, Learn, AL2430-2PH, Infrared, Wireless, A


User manual for Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH

Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH
  • Manufacturer: Atlas Sound
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Sound Kits
  • Safety instructions
  • Startup and operation of the install sound kits
  • Tips for setting up your Atlas Sound
  • Settings and expert assistance
  • Contact Atlas Sound service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH, which address similar problems with connecting and setting up Install Sound Kits Atlas Sound.



User manual for the Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH

The user manual for the Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Sound Kits.

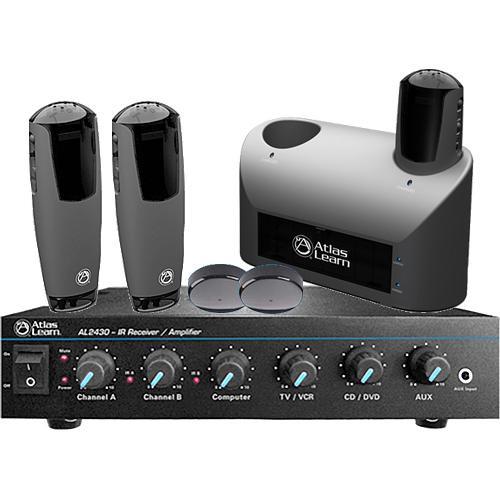

The Atlas Learn AL2430-2PH Infrared Wireless Classroom Microphone System gives teachers and instructors the flexibility of hands-free speech amplification in an easy to use system. The package includes 2 transmitter microphones, 2 IR receiver domes, dual-bay charging station and a receiver / amplifier with 4 additional line-level inputs and level control dials for each.
If you own a Atlas Sound install sound kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH:
Receiver
Connectors Line Output: RCA Phono
Multimedia Inputs: RCA Phono x4
Aux Front Input: 1/8" (3.5mm) TRS Mini
IR Receiver Dome Inputs: 75 Ohm Female Connectors x3
Audio Output: Phoenix Type (0, 8 ohm, 25V and 70V)
Panic Output: Phoenix Type (3-pin)
Priority Page: Phoenix Type (+/-)
Output Power 30W RMS @ 8ohms, 25V or 70V
Impedance Computer Input: 56k
Multimedia Inputs: 22k
Line Outputs: 1k
Sensitivity Multimedia Inputs -10dB
Priority Page 14dB
EQ Section 100Hz, 3kHz and 10kHz +/- 10dB
Power 100V to 240V Input, 24VDC / 25A Output
Dimensions 8.50 x 1.77 x 13.50" (216 x 45 x 343mm)
Weight 5.75 lb (2.6kg)
Transmitter
Type Handheld, Lanyard or Belt-clip Mount (included)
Controls Power, Mode, Volume, Channel, Lock Out, Panic and Mute Switches
Display Mode and IR Sensitivity LEDs
Input 1/8" (3.5mm) Input for Optional Headworn Microphone
Power AA Rechargeable Batteries x2
Dimensions 1.8 x 5.18 x 1.31" (45.7 x 131.7 x 33.4mm)
Weight 4.23 oz (120g) with batteries
Packaging Info
Package Weight 11.8 lb
Box Dimensions (LxWxH) 14.9 x 12.1 x 11.4"
The user manual for the Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH can be downloaded in .pdf format if it did not come with your new install sound kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Atlas Sound users keep a unique electronic library for Atlas Sound install sound kitss, where you can use our link to download the user manual for the Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH.

The user manual lists all of the functions of the Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH, all the basic and advanced features and tells you how to use the install sound kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Atlas Sound service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Atlas Sound Learn AL2430-2PH - Infrared Wireless AL2430-2PH. User manuals are also available on the Atlas Sound website under Pro Audio - Installation Sound - Install Sound Kits.
