User manual for the Atlas Sound TSD-PA10VG Mono 10W Power Amplifier TSD-PA10VG

The user manual for the Atlas Sound TSD-PA10VG Mono 10W Power Amplifier TSD-PA10VG provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - 70-Volt Amplifiers.

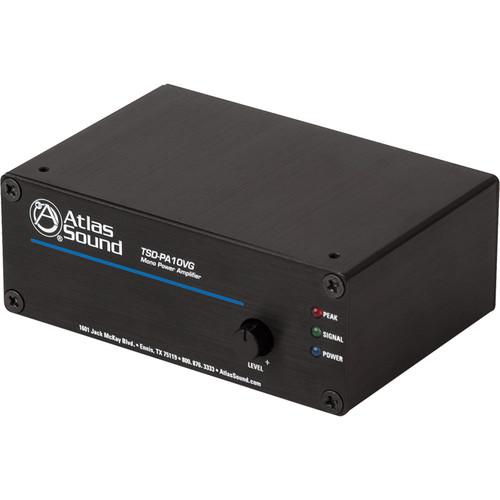

The Atlas Sound TSD-PA10VG Mono 10W Power Amplifier is a single channel global amplifier that can deliver up to 10 watts into a 4 or 8 ohms, 25, 70, or 100 volt speaker load with a balanced mono phoenix style input. The PA10VG draws 2.8 watts when in idle. The front panel has an input level control as well as power, signal, and peak LED indicators. A external power supply (available separately) is required for operation.
If you own a Atlas Sound 70-volt amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Atlas Sound TSD-PA10VG Mono 10W Power Amplifier TSD-PA10VG in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Atlas Sound TSD-PA10VG Mono 10W Power Amplifier TSD-PA10VG:
Specifications
    Inputs
    Type 1x Balanced line removable 3 position captive screw 1/8" (3.5 mm) spacing
    Impedance Balanced: 10 kΩ
    Unbalanced: 5 kΩ
    Line Input Level 500 mV (-6 dBV), balanced
    Outputs
    Outputs Output Taps:
    4 Ω, 25, 70, 100 V
    Type Removable 5 position captive screw 0.2" (5 mm) spacing speaker output
    Wire Size 14 gauge maximum
    Controls
    Level Control 1x Removable knob with security cover
    Indicators
    Input Signal Green, 25 mV On Threshold
    Peak Red, -3 dB Before Clip
    Power Blue
    Electrical
    Frequency Response 40 Hz to 20 kHz (±3 dB)
    THD 0.5% @ 1 kHz
    Signal to Noise Ratio 78 dB
    Power Requirements
    Power Requirements Note: All Current and Watt data is based on AC power consumption using the TSD-PS24V2500mA Power Supply
    Load Load Taps: 4Ω, 25 V = 31 Ω Load, 70 V = 245 Ω Load, 100 V = 500 Ω Load
    Voltage 24 V DC 1000 mA
    Current Idle: 60 mA
    Average: 110 mA
    Maximum Current: 240 mA
    Watts Idle VA Watts: 2.8 W
    Average VA Watts: 6.7 W
    Maximum VA Watts: 14 W
    General
    Chassis Aluminum
    Dimensions (H x W x D) 1.5 x 4 x 2.75" (39 x 101 x 70 mm)
    Weight 6 oz (165 kg)
    Packaging Info
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 5.2 x 3.6 x 2.4"
    The user manual for the Atlas Sound TSD-PA10VG Mono 10W Power Amplifier TSD-PA10VG can be downloaded in .pdf format if it did not come with your new 70-volt amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Atlas Sound users keep a unique electronic library for Atlas Sound 70-volt amplifierss, where you can use our link to download the user manual for the Atlas Sound TSD-PA10VG Mono 10W Power Amplifier TSD-PA10VG.

    The user manual lists all of the functions of the Atlas Sound TSD-PA10VG Mono 10W Power Amplifier TSD-PA10VG, all the basic and advanced features and tells you how to use the 70-volt amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Atlas Sound service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Atlas Sound TSD-PA10VG Mono 10W Power Amplifier TSD-PA10VG. User manuals are also available on the Atlas Sound website under Pro Audio - Installation Sound - 70-Volt Amplifiers.
