User manual Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB

Operating instructions and pdf manual for use - Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB User manual, User manual Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB, Audeze, LCD-XC, High, Performance, Reference, LCDX


User manual for Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB

Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB
  • Manufacturer: Audeze
  • Basic description and contents of package
  • Product classification: Mobile - Headphones - Professional Headphones
  • Safety instructions
  • Startup and operation of the professional headphones
  • Tips for setting up your Audeze
  • Settings and expert assistance
  • Contact Audeze service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB, which address similar problems with connecting and setting up Professional Headphones Audeze.



User manual for the Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB

The user manual for the Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB provides necessary instructions for the proper use of the product Mobile - Headphones - Professional Headphones.

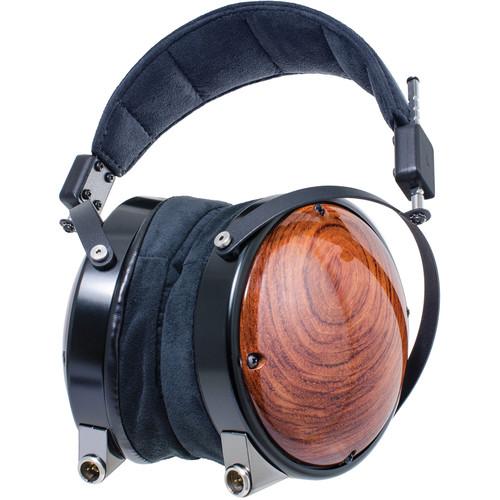

The Audeze LCD-XC - High Performance Reference Closed-Back Planar Magnetic Headphones with Rugged Travel Case (Bubinga Wood Earcups, Vegan Leather-Free Microsuede) are designed for professional tracking, mixing, mastering, and reference level personal Hi-Fi listening when connected to a low powered external headphone amplifier or portable device. The headphones are sensitive enough to be driven by portable music players such as iPods, iPhones, and other Smartphones. Their closed-back design helps block out external ambient noise making the headphones suitable for public listening such as when commuting on the train or working in an office environment.

Instead of utilizing traditional dynamic cone drivers, the headphones implement a neodymium magnetic planar transducer design to deliver a frequency response of 5 to 50,000 Hz with a THD of less than 1%, an impedance of 70Ω, an efficiency of 95 dB per 1 mW, and a total output SPL of over 130 dB when driven by 15 watts.

Magnetic planar technology differs from traditional dynamic cone designs by suspending a thin lightweight diaphragm within a parallel magnetic plane comprised of an array of magnets. The diaphragm is much lighter when compared to a traditional dynamic cone and has a printed circuit spread across a thin-film substrate on the surface of the diaphragm as opposed to a cone attached to a voice coil. When the audio signal from the amplifier reaches the circuit, it magnetizes the diaphragm within the field and produces sound.

The benefits of a magnetic planar design include faster transient response due to the lighter diaphragm, a wide frequency with low distortion, better heat dissipation, fewer moving parts for greater durability without the kind of sonic degradation that cones are susceptible to, and better amplifier compatibility because the circuit functions as an almost entirely restive load.

The magnetic structure creates a uniform magnetic field across the diaphragm without the need for additional ferromagnetic material traditionally found in other planar headphones to remove magnetic interference, reduce harmonic distortion, and lower overall weight. The headphones also feature Audeze's patent-pending Fazor elements that guide and manage the flow of sound through the earcups for a more enveloping sound stage and improved frequency extension.

The headphone earcups are made of Bubinga wood with vegan leather-free Microsuede earpads. They come with a ruggedized travel case, a 1/4" to 4-pin mini-XLR cable, a 4-pin XLR to dual 4-pin mini - XLR cable, and a 1/4" to 1/8" stereo adapter. They are handcrafted in the USA and a personalized frequency response graph is available through support@audeze.com.
If you own a Audeze professional headphones and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB:
Style Closed circumaural
Transducer Type Planar magnetic
Magnet Type Proprietary self-closing high-grade Neodymium design
Diaphragm 6.17 square inches (39.8 square cm)
Maximum Power 15 W (for 200 ms)
Optimal Range 1 to 4 W
SPL > 130 dB with 15 W
Frequency Response 5 to 20,000 Hz, extension to 50,000 Hz
THD < 1 %
Impedance 20 Ω
Efficiency 95 dB / 1 mW
Cable Length 2.5 m (8.2 ft)
Weight 22.9 oz (650 g)
Packaging Info
Package Weight 7.4 lb
Box Dimensions (LxWxH) 13.0 x 10.2 x 8.1"
The user manual for the Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB can be downloaded in .pdf format if it did not come with your new professional headphones, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Audeze users keep a unique electronic library for Audeze professional headphoness, where you can use our link to download the user manual for the Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB.

The user manual lists all of the functions of the Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB, all the basic and advanced features and tells you how to use the professional headphones. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Audeze service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Audeze LCD-XC - High Performance Reference LCDXC-WC-BB-LF-AAB. User manuals are also available on the Audeze website under Mobile - Headphones - Professional Headphones.
