User manual for the Audio-Technica AE-3000 Cardioid Condenser Instrument AE3000
The user manual for the Audio-Technica AE-3000 Cardioid Condenser Instrument AE3000 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Large Diaphragm Condenser.

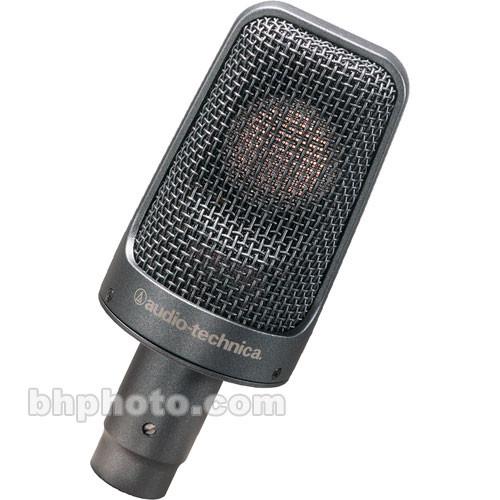

The AE3000 Cardioid Condenser Instrument Microphone from Audio-Technica is a large diaphragm side-address microphone designed for capturing instruments rich in transient response. Guitar cabinets, drums and percussion signals are accurately reproduced without noise and distortion. The capsule features a cardioid polar pattern which effectively minimizes noise at the off-axis sections of the capsule, providing high gain-before-feedback response and minimal ambient noise. A high pass filter switch eliminates noise below 80 Hz and a 10 dB pad increases headroom when capturing signals at close proximity or at high levels. The microphone is powered by an external 11 to 52V phantom power source.
If you own a Audio-Technica large diaphragm condenser and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Audio-Technica AE-3000 Cardioid Condenser Instrument AE3000 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Audio-Technica AE-3000 Cardioid Condenser Instrument AE3000:
| Transducer || Condenser |
| Polar Pattern || Cardioid |
| Frequency Range || 20 Hz to 20 kHz |
| Signal to Noise Ratio || 83 dB |
| Equivalent Noise Level || 11 dB |
| Maximum SPL || 148 dB SPL 1% |
158 dB SPL dB Pad Engaged
| Impedance || 100 ohms |
| Sensitivity || 7.0 mV/PA, re: 1 V/Pa |
| Power Requirements || 11-52 V |
| Low-Cut Filter || Yes, 12 dB/Octave @ 80 Hz |
| Pad || Yes, 10 dB |
| Output Connectors || 3-Pin XLR |
| Operating Current Consumption || 3.0 µA |
| Dynamic Range || 137 dB |
| Length || 4.55" (115.5 mm) |
| Diameter || 1.89" (48.0 mm) |
| Weight || 6.0 oz (170 g) |
| Package Weight || 1.0 lb |
| Box Dimensions (LxWxH) || 9.5 x 5.0 x 2.9" |
