User manual Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back

Operating instructions and pdf manual for use - Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back User manual, User manual Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back, Audio-Technica, AT2035, Mic, PreSonus, TubePre,


User manual for Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back

Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back
  • Manufacturer: Audio-Technica
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Large Diaphragm Condenser
  • Safety instructions
  • Startup and operation of the large diaphragm condenser
  • Tips for setting up your Audio-Technica
  • Settings and expert assistance
  • Contact Audio-Technica service
  • Troubleshooting
  • Warranty information
  • Price: 347 USD
We recommend checking out our discussion threads on the Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back, which address similar problems with connecting and setting up Large Diaphragm Condenser Audio-Technica.



User manual for the Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back

The user manual for the Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back provides necessary instructions for the proper use of the product Pro Audio - Recording - Large Diaphragm Condenser.

Add the B&H Audio Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back Headphones Kit to a computer and audio interface, and you've got a fully functioning home studio. This kit includes everything you'll need to start laying down tracks. The AT2035 Cardioid Condenser Microphone will excel on any source, providing clear and accurate audio. The PreSonus TubePre v2 features a solid state preamplifier for microphones and instruments. Its tube output stage can remain clean and transparent or add some grit to your sound. Monitor and mix your work through the Closed-Back headphones. Additionally, this kit includes a boom stand and a XLR cable and pop filter.
If you own a Audio-Technica large diaphragm condenser and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back:
Specifications

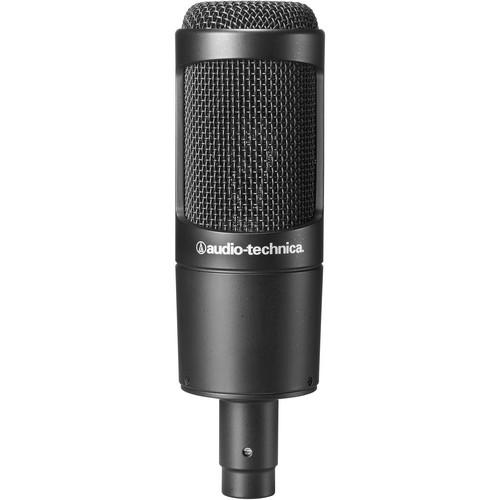

    • Audio-Technica AT2035 Cardioid Condenser Microphone
      Transducer Condenser
      Polar Pattern Cardioid
      Frequency Range 20 Hz to 20 kHz
      Signal to Noise Ratio 80 dB
      Equivalent Noise Level 12 dB
      Maximum SPL 148 dB SPL 1%
      158 dB SPL  dB Pad Engaged
      Impedance 120 ohms
      Sensitivity 22.4 mV/PA, re: 1 V/Pa
      Power Requirements 11-52 V
      Low-Cut Filter Yes, 12 dB/Octave @ 80 Hz
      Pad Yes, 10 dB
      Output Connectors 3-Pin XLR
      Operating Current Consumption 3.8 µA
      Dynamic Range 136 dB
      General
      Length 6.69" (170.0 mm)
      Diameter 2.05" (52.0 mm)
      Weight 14.22 oz (403 g)
      Packaging Info
      Box Dimensions (LxWxH) 9.8 x 9.6 x 3.0"
    • PreSonus TubePre v2 - Tube Preamplifier/DI Box
      Number of Channels Single
      Inputs 1 x XLR Microphone
      1 x 1/4" TS phone Instrument
      Input Impedance Microphone
      1.3kΩ
      Instrument
      1MΩ
      Gain Range Microphone
      -15dB to +65dB
      Instrument
      -30dB to +50dB
      Output 1 x XLR
      1 x 1/4" TS phone
      Output Impedance 51Ω
      Maximum Output Level +20dBu
      Phantom Power 48V switchable
      Multi Function No
      Frequency Response Microphone
      20Hz to 20kHz, -0.3dB (+4dBu, unity gain)
      5Hz to 120kHz, -3.0dB (+4dBu, unity gain)
      Noise Microphone EIN
      -131dB, 20kHz BW, maximum gain, Rs=40Ω, A-weighted
      -128dB, 20kHz BW, maximum gain, Rs=40Ω, unweighted
      THD + N Microphone
      0.01%, -10dBu, 1kHz, unity gain, 20kHz BW, unweighted
      Dynamic Range Microphone
      115dB, 1kHz, unity gain, 20kHz BW, A-weighted
      107dB, 1kHz, unity gain, 20kHz BW, unweighted
      Power Requirements +12VDC, 1000mA, center pin positive, via included external power supply
      PSU Barrel Dimensions: 5.5mm outer dimension x 2.1mm inner dimension x 9.5mm length
      Dimensions (WxDxH) 1/3U rack-mount chassis
      Weight Not specified by manufacturer
      Packaging Info
      Box Dimensions (LxWxH) 12.5 x 7.7 x 4.3"
    • Senal SMH-1000 Professional Field and Studio Monitor Headphones
      Type Circumaural, closed-back
      Driver 40mm, neodymium
      Frequency Range 10 Hz - 20 kHz
      Impedance 58 Ω @ 1 kHz
      Sensitivity 102 dB ±3 dB (@ 1 kHz/mW)
      Maximum Input Power 1000 mW
      Distortion Less than 1% @ 1 kHz
      Weight 8 oz (267 g)
      Packaging Info
      Box Dimensions (LxWxH) 9.1 x 8.8 x 3.8"
    • Auray PFN-6 Nylon Pop Filter with Gooseneck (6")
      Packaging Info
      Box Dimensions (LxWxH) 13.6 x 6.9 x 2.0"
    • Ultimate Support JS-MCFB100 Tripod Mic Stand with Fixed Boom
      Height 39.25 - 66.5" (991-1690mm)
      Boom Length 30.1" (765mm)
      Weight 6 lbs (2.7kg)
      Packaging Info
      Box Dimensions (LxWxH) 33.5 x 3.5 x 3.5"
    • Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
      Cable Type 3-Pin XLR balanced microphone cable
      Length 10' (3.0 m)
      Shielding 95% Dual-Spiral Shielding
      Gauge 24 AWG
      Contacts Silver
      Connector 1 XLR Male
      Connector 2 XLR Female
      Packaging Info
      Box Dimensions (LxWxH) 5.7 x 2.2 x 1.0"
    The user manual for the Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back can be downloaded in .pdf format if it did not come with your new large diaphragm condenser, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Audio-Technica users keep a unique electronic library for Audio-Technica large diaphragm condensers, where you can use our link to download the user manual for the Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back.

    The user manual lists all of the functions of the Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back, all the basic and advanced features and tells you how to use the large diaphragm condenser. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Audio-Technica service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Audio-Technica AT2035 Mic, PreSonus TubePre v2 and Closed-Back. User manuals are also available on the Audio-Technica website under Pro Audio - Recording - Large Diaphragm Condenser.
