User manual for Audioengine A2 2.75" Powered Desktop Speakers (Black) A2 B
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Audioengine
- Basic description and contents of package
- Product classification: Computers & Solutions - Computer Peripherals - Computer Speakers
- Safety instructions
- Startup and operation of the computer speakers
- Tips for setting up your Audioengine
- Settings and expert assistance
- Contact Audioengine service
- Troubleshooting
- Warranty information
- Price: 249 USD
Click to enlarge image
|
We recommend checking out our discussion threads on the Audioengine A2 2.75" Powered Desktop Speakers (Black) A2 B,
which address similar problems with connecting and setting up Computer Speakers Audioengine.
|
User manual for the Audioengine A2 2.75" Powered Desktop Speakers (Black) A2 B
The user manual for the Audioengine A2 2.75" Powered Desktop Speakers (Black) A2 B provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Peripherals - Computer Speakers.

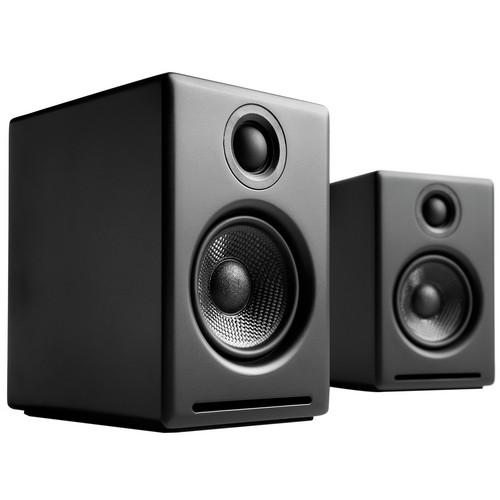

The black A2+ 2.75" Powered Desktop Speakers from Audioengine are a 2.0 speaker system that features a powered and passive speaker. Each speaker incorporates a 2.75" Kevlar woofer and ¾" silk dome tweeter that can produce up to 30-watts of peak power. With a frequency response of 65 Hz to 22 kHz, the Audioengine A2+ speaker system can handle a wide range of audio material. The speakers also feature magnetically shielded designs to avoid interfering with closely placed video monitors.
The Audioengine A2+ speaker system uses a built-in TI/Burr Brown PCM2704C DAC for high-quality digital to analog conversion. A USB input is onboard for connecting digital devices like MP3 players. The USB port can also provide a high-quality digital connection directly to your computer, and doesn't require software for installation. RCA and ⅛" inputs are also available for connecting various types of audio sources such as computers and game consoles. USB and ⅛" audio cables are included with the A2+ speaker system. A variable RCA audio output is also built-in for connecting external components like subwoofers.
The left speaker in the Audioengine A2+ speaker system houses the power amplifier, audio connections, volume control, and power supply, while the passive right speaker connects to the left speaker via speaker wire. A 16 AWG speaker wire is included for this connection.
|
If you own a Audioengine computer speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Audioengine A2 2.75" Powered Desktop Speakers (Black) A2 B in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Audioengine A2 2.75" Powered Desktop Speakers (Black) A2 B:
| Type | 2.0 powered (active) multimedia desktop speaker system | | Amplifier | Dual class AB monolithic | | Power Output | 60 W peak power total (15 W RMS / 30 W peak per channel), AES | | Woofer | 1 x 2.75" (7.00 cm) Kevlar | | Tweeter | 1 x ¾" (1.9 cm) silk dome | | Inputs | Left Speaker:
1 x ⅛" (3.5 mm) stereo mini-jack
1 x Stereo RCA
1 x USB
Right Speaker:
1x Left speaker connector (dual posts) | | Outputs | Left Speaker:
1 x Stereo RCA
1 x Right speaker connector (dual posts) | | SNR | >95 dB (typical A-weighted) | | THD + N | <0.05 % at all power settings | | Crosstalk | -50 dB | | Frequency Response | 65 Hz to 22 kHz (±2.0 dB) | | Input Impedance | 10 kOhms unbalanced | | DAC | TI/Burr Brown PCM2704C | | Input Bit Depth | Up to 16 bits native | | Input Sample Rate | Up to 48 kHz native | | USB Device Support | Type 1.1 or above | | Protection | Output current limiting, thermal over-temperature, power on/off transient protection | | Power Requirements | 110 to 240 VAC, 50/60 Hz auto-switching | | Dimensions (H x W x D) | Each Speaker: 6.00 x 4.00 x 5.30" (15.20 x 10.16 x 13.50 cm) | | Weight | Left Speaker: 3.6 lb (1.6 kg)
Right Speaker: 3.2 lb (1.5 kg) | | Package Weight | 10.2 lb | | Box Dimensions (LxWxH) | 15.0 x 7.8 x 7.5" | |
The user manual for the Audioengine A2 2.75" Powered Desktop Speakers (Black) A2 B can be downloaded in .pdf
format if it did not come with your new computer speakers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Audioengine users keep a unique electronic library
for Audioengine computer speakerss,
where you can use our link to download the user manual for the Audioengine A2 2.75" Powered Desktop Speakers (Black) A2 B.
The user manual lists all of the functions of the Audioengine A2 2.75" Powered Desktop Speakers (Black) A2 B,
all the basic and advanced features and tells you how to use the computer speakers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Audioengine service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Audioengine A2 2.75" Powered Desktop Speakers (Black) A2 B. User manuals are also
available on the Audioengine website under Computers & Solutions - Computer Peripherals - Computer Speakers.
