User manual for the Aurora Multimedia DXE-CAT-S2C HDMI HDBaseT CAT DXE-CAT-S2C

The user manual for the Aurora Multimedia DXE-CAT-S2C HDMI HDBaseT CAT DXE-CAT-S2C provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

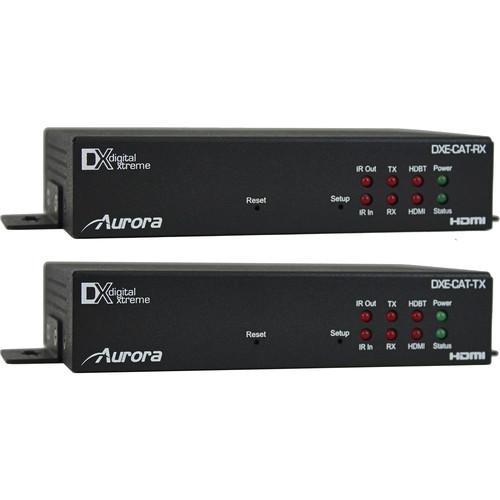

The DXE-CAT-S2C HDMI HDBaseT CAT Extender Kit with IP Control from Aurora Multimedia includes a DXE-CAT-RX2 receiver, a DXE-CAT-TX2C transmitter, and a PS0080-1 power supply.

The DXE-CAT-TX2C Transmitter works with the DXE-CAT-RX2 Receiver to extend a 1080p/60Hz HDMI A/V signal, and is capable of the following transmission distances: 48-bit signals up to 330' over CAT5e/6/7 cables, 24-bit signals up to 500' over CAT6, and 24-bit signals up 600' over a CAT6a shielded cable. In addition to HDMI, the same cable can be used to carry RS-232, IR, and LAN, bi-directionally. The transmitter-receiver combo draws its power from the included power supply, which can be connected to any of the two units; the second unit is powered by POE. Alternatively, the extender can be powered by LAN POE, in which case the power supply is not needed. All the connections are on one side, allowing for clean wiring and easy rackmounting.

The DXE-CAT-TX2C has 8MB of storage capability for hosting a Web Control page, enabling control of any IR or RS232 controllable device. This unit can also be integrated with existing supporting control systems and is configurable as a Telnet Client/Server. Additionally it provides a 2-port Ethernet switch at both ends allowing connectivity of IP capable displays and components.
If you own a Aurora Multimedia video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Aurora Multimedia DXE-CAT-S2C HDMI HDBaseT CAT DXE-CAT-S2C in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Aurora Multimedia DXE-CAT-S2C HDMI HDBaseT CAT DXE-CAT-S2C:

Go To

Connectors Transmitter:
1 x HDMI, video input
1 x RJ45, LAN 1 Ethernet POE
1 x RJ45, LAN 2 Ethernet
1 x HDBaseT, network
1 x 3.5 mm TRS, RS-232 serial port
1 x 3.5 mm TRS, IR infrared
1 x DC barrel, 24 VDC power input
Receiver:
1 x HDMI, video output
1 x RJ45, LAN 1 Ethernet POE
1 x RJ45, LAN 2 Ethernet
1 x HDBaseT, network
1 x 3.5 mm TRS, RS-232 serial port
1 x 3.5 mm TRS, IR infrared
1 x DC barrel, 24 VDC power input
Controls Each Unit:
1 x Reset pin-hole button
1 x Setup pin-hole button

Use paper clip or similar object to reset unit by pushing into hole.
Press and hold for 3 seconds to restore factory defaults.

Indicators Each Unit:
1 x IR out, red
1 x IR In, red
1 x TX, red
1 x RX, red
1 x HDBT, red
1 x HDMI, red
1 x Power, green
1 x Status, green
Compliance HDMI 3D, HDCP
Transmission Distance 1080p, 60Hz, 48-bit: 330' (100 m) over one CAT 5e/6/7 cable
1080p, 60Hz, 24-bit: 500' (152 m) over one CAT 6 cable
1080p, 60Hz, 24-bit: 600' (182 m) over one CAT 6a cable
Maximum Resolution 1080p
Color Depth 24-bit (over CAT 5e/6/6a/7)
36-bit (over CAT 5e/6)
48-bit (over 5e/6/6a/7)
Storage 8 MB for control page storage (webserver)
Mounting Wall mounting tabs and rackmount bracket (both included)
Power Supply 24 VDC, 0.65 A, 5 W
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Relative Humidity 20 to 90% RH (no condensation)
Dimensions Each Unit: 4.7 x 3.0 x 1.1" (12.0 x 7.6 x 2.8 cm)
Weight Each Unit 0.9 lb (0.4 kg)
Power Supply
Power 24 VDC, 15.5 W
Connector DC connector (United States adapter)
The user manual for the Aurora Multimedia DXE-CAT-S2C HDMI HDBaseT CAT DXE-CAT-S2C can be downloaded in .pdf format if it did not come with your new video extenders & repeaters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Aurora Multimedia users keep a unique electronic library for Aurora Multimedia video extenders & repeaterss, where you can use our link to download the user manual for the Aurora Multimedia DXE-CAT-S2C HDMI HDBaseT CAT DXE-CAT-S2C.

The user manual lists all of the functions of the Aurora Multimedia DXE-CAT-S2C HDMI HDBaseT CAT DXE-CAT-S2C, all the basic and advanced features and tells you how to use the video extenders & repeaters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Aurora Multimedia service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Aurora Multimedia DXE-CAT-S2C HDMI HDBaseT CAT DXE-CAT-S2C. User manuals are also available on the Aurora Multimedia website under Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.
