User manual Axis Communications M1013 Network Camera 0519-004

Operating instructions and pdf manual for use - Axis Communications M1013 Network Camera 0519-004 User manual, User manual Axis Communications M1013 Network Camera 0519-004, Axis, Communications, M1013, Network, Camera, 0519-004,


User manual for Axis Communications M1013 Network Camera 0519-004

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Axis Communications M1013 Network Camera 0519-004
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
  • Price: 168 USD
We recommend checking out our discussion threads on the Axis Communications M1013 Network Camera 0519-004, which address similar problems with connecting and setting up Wired IP Cameras Axis Communications.



User manual for the Axis Communications M1013 Network Camera 0519-004

The user manual for the Axis Communications M1013 Network Camera 0519-004 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

The Axis Communications M1013 Network Camera supports edge storage, which includes support for storage on microSDHC cards as well as recording to network shares such as Network-Attached Storage (NAS). With its functional and smart design, this camera offers high quality yet affordable video surveillance solution.

Video intelligence includes video motion detection and active tampering alarm. The network camera is ideal for securing locations such as small businesses, boutiques, restaurants, hotels, or residences. It offers excellent video quality in SVGA resolution at 30 fps. Multiple H.264 and Motion JPEG streams can be provided simultaneously individually optimized for different quality needs and bandwidth constraints. Full frame rate and resolution is provided in either compression. The H.264 compression enables optimization for bandwidth and storage efficiency by significantly reducing the bit rate.

This camera features the unique pixel counter that allows the installer to easily verify that the camera installation fulfills any regulatory or specific customer requirements, for example, calculating the pixel resolution of the face of a person passing a doorway monitored by the camera.

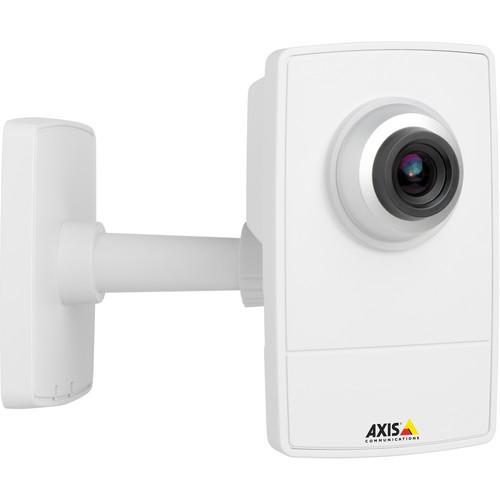

The mounting stand can be installed on the wall and ceiling. A mounting clamp allows the camera to be installed in shelves. The camera is powered by a white power supply (included).
If you own a Axis Communications wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications M1013 Network Camera 0519-004 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Axis Communications M1013 Network Camera 0519-004Download user manual for Axis Communications M1013 Network Camera 0519-004
(PDF file, 2.85 MB)
Additional parameters of the Axis Communications M1013 Network Camera 0519-004:
Camera
Image Sensor 1/4" Progressive scan RGB CMOS
Lens 2.8 mm, F2.0 ï¬xed iris, adjustable focus

Horizontal angle of view: 67°

Vertical angle of view: 51°
Minimum Illumination 1.2 to 10000 lux, F2.0
Shutter Time 1/8000 to 1/6 sec
Pan/Tilt/Zoom Digital PTZ, preset positions, guard tour
Video
Video Compression H.264 (MPEG-4 part 10/AVC, main profile)
Motion JPEG
Resolutions 800 x 600 to 352 x 240
Frame Rate H.264 30 fps in all resolutions
Frame Rate Motion JPEG 30 fps in all resolutions
Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR H.264
Image Settings Compression, color, brightness, sharpness, contrast, white balance, backlight compensation
Rotation: 0°, 90°, 180°, 270°
Mirroring of images
Text and image overlay
Privacy mask
Axis' corridor format
Network
Security Password protection, IP address filtering, HTTPS encryption*, IEEE 802.1X network access control*, digest authentication, user access log

*This product includes software developed by the OpenSSL Project for use in the Open SSL Toolkit (www.openssl.org)

Supported Protocols IPv4/v6, HTTP, HTTPS*, SSL/TLS*, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, etc

*This product includes software developed by the Open SSL Project for use in the Open SSL Toolkit (www.openssl.org)

System Integration
Application Programming Interface Open API for software integration, including VAPIX; specifications available at www.axis.comONVIF, specifications available at www.onvif.orgAXIS Video Hosting System (AVHS) with one-click camera connection
Intelligent Video Video motion detection, active tampering alarm
Event Trigger Intelligent video, manual trigger, PTZ preset, PTZ moving, network lost, storage status, system initializing
Event Action File upload via FTP, HTTP, and email
Notification via email, HTTP, and TCP
Video recording to edge storage
PTZ preset
Guard tour
Status LED
Pre- and post alarm video buffering
Video Access From Web Browser Camera live view
Video recording to file (ASF)
Customizable HTML pages
Windows 7, Windows Vista, Windows XP, Windows Server 2008, Windows Server 2003
DirectX 9c or higher
Maintenance & Management Settings AXIS Camera Management tool on CD and web-based configuration
Firmware upgrades over HTTP or FTP firmware available on www.axis.com
Installation Aid: Pixel counter
General
Casing Polycarbonate
Memory 256 MB RAM, 128 MB Flash
Power 4.9 to 5.1 VDC, maximum 2.2 W
Connectors DC jack
RJ-45 10BASE-T / 100BASE-TX
Edge Storage microSD/microSDHC card slot (card not included)Support for recording to network share (Network attached storage or file server)
Operating Conditions 32 to 104ºF (0 to 40ºC)
Humidity 20 to 80% RH (non-condensing)
Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024
FCC Part 15 Subpart B and C Class B, VCCI Class B, C-tick AS/NZS CISPR 22,ICES-003 Class B, KCC Class B
EN 60950-1
Power supply: EN 60950-1, cCSAus
Video Management Software AXIS Camera Companion (software included on CD) Basic surveillance for small businesses, where video is recorded to edge (local) storage
Dimensions (H x W x D) 1.3 x 2.3 x 3.7" (34 x 59 x 95 mm)
Weight 0.26 lb (0.12 kg)
Packaging Info
Package Weight 1.01 lb
Box Dimensions (LxWxH) 7.1 x 6.9 x 3.9"
