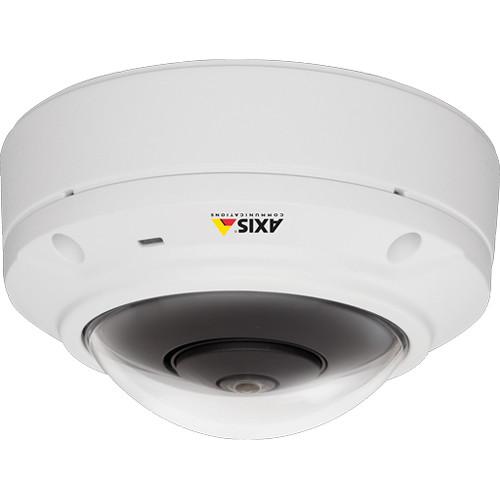

Axis Communications M3037-PVE 5MP Day/Night Dome 0548-001
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
  • Price: 799 USD
We recommend checking out our discussion threads on the Axis Communications M3037-PVE 5MP Day/Night Dome 0548-001, which address similar problems with connecting and setting up Wired IP Cameras Axis Communications.



User manual for the Axis Communications M3037-PVE 5MP Day/Night Dome 0548-001

The user manual for the Axis Communications M3037-PVE 5MP Day/Night Dome 0548-001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

Designed for both indoor and outdoor use, the M3037-PVE 5MP Day/Night Dome Network Camera from Axis features a 1.27mm fixed lens that provides a variety of views, including a 360° overview, a 270° corner view, and various 180° panoramic views, as well as quad views. Digital pan, tilt, and zoom options enhance the camera's versatility, allowing it to focus on four individually cropped and dewarped view areas. The camera contains a removable infrared-cut filter for functioning in a wide range of light conditions, enabling both day and night operation. Offering a video resolution of 5MP at 12 fps, the camera can simultaneously send multiple streams of data in H.264 compression and MJPEG formats for a minimum of storage and bandwidth use. This recorded footage can be saved locally for later viewing by using the in-camera memory slot, which can accommodate a microSD card up to 64GB.

The integrated microphone and speaker provide full duplex audio, echo cancellation, and noise-reduction features while supporting Session Initiation Protocol (SIP) for compatibility with IP phone systems. The camera also offers video motion detection, an active tampering alarm, and support for intelligent video applications, such as people-counting and cross-line detection. Designed to work on the AXIS Camera Application Platform, the camera can be coupled with a compatible ONVIF-compliant recorder for viewing your recorded footage and making desired recording adjustments. IP66 and IK10-rated, the camera is vandal-resistant and weatherproof, and it can withstand high levels of impact. The included 6.6' network cable and mounting template are designed to enable easy installation on either a wall or ceiling.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications M3037-PVE 5MP Day/Night Dome 0548-001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Axis Communications M3037-PVE 5MP Day/Night Dome 0548-001:
Specifications
Camera
Image Sensor Device 1/3.2" CMOS progressive scan, RGB
Lens Type 1.27mm fixed lens
Aperture f/2.0
Angle of View Horizontal: 187°
Vertical: 168°
Minimum Illumination Color: 0.3 to 200000 lux
B/W: 0.06 lux
Shutter Time 1/24500 s to 2 s
Adjustments Rotation: 360°
Video
Video Compression H.264 main and baseline profile (MPEG-4 Part 10/AVC)
MJPEG
Resolution Overview: 2592 x 1944 (5 MP) to 160 x 120
Panorama: 1920 x 720 to 320 x 120
270° corner, right and left: 1920 x 720 to 320 x 120
Double panorama: 1920 x 1440 to 160 x 120
270° corner, right and left: 1920 x 1440 to 160 x 120
Quad view: 1920 x 1440 to 160 x 120
View area 1-4: 1920 x 1440 to 160 x 90
Frame Rate 12 fps in 360° overview and panoramic views
10 fps when streaming 4 dewarped view areas and one 360° overview in VGA
Video Streaming Multiple, individually configurable streams in H.264 and Motion JPEG
Controllable frame rate and bandwidth, VBR/MBR H.264
Multi-stream 360° overview, dewarped panorama, double panorama, 270° corner and quad views, up to 4 individually cropped-out and dewarped view areas.
Image Settings Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, WDR dynamic contrast, fine-tuning of behavior at low light, rotation: 0°, 180°, text and image overlay, privacy mask, mirroring of images
Rotation Digital PTZ of view areas, preset positions, guard tours
Digital PT of panorama, double panorama, 270° corner and quad views
Audio
Audio Streaming Two-way, full duplex
Echo cancellation and noise reduction
Audio Compression AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz
Configurable bit rate
Audio Input/Output Input: Built-in microphone (can be disabled)
Output: Built-in speaker, 84 dB (at 20.0" / 0.5 m)
Network
Security Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
Supported Protocols IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II),DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, SIP
System Integration
Application Programming Interface Open API for software integration, including VAPIX and AXIS Camera Application Platform
Axis Video Hosting System (AVHS) with One-Click Camera Connection
ONVIF Profile S
Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
Intelligent Video Video motion detection, active tampering alarm, audio detection, support for AXIS Camera Application Platform enabling installation of AXIS Video Motion Detection 3, AXIS Cross Line Detection and third-party applications
Event Trigger Analytics, external input, edge storage events, call
Event Action File upload: FTP, HTTP, network share and email
Notification: email, HTTP, TCP, SNMP trap
External output activation
Video recording to edge storage
Pre- and post-alarm video buffering
PTZ preset, guard tour
Overlay text, make call
Data Streaming Event data
Installation Aids in Software Pixel counter
General
Memory 512 MB (RAM)
128 MB (Flash)
Memory Card Slot microSDHC/microSDXC
Up to 64 GB
Power PoE IEE 802.3af and 802.3at Type 1 Class 3
Wattage Maximum: 5.1 W; Typical: 3.4 W
Connectors 1 x Male RJ45 10BASE-T/100BASE-TX PoE
Operating Temperature & Humidity Temperature: -22 to 122°F (-30 to 50°C)
Humidity: 10 to 100% RH condensing
Dimensions 5.2 x 5.2 x 2.9" / 13.2 x 13.2 x 7.4 cm
Weight 1.6 lb / 0.7 kg
Packaging Info
Package Weight 2.3 lb
Box Dimensions (LxWxH) 7.7 x 6.3 x 5.2"
The user manual for the Axis Communications M3037-PVE 5MP Day/Night Dome 0548-001 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications wired ip camerass, where you can use our link to download the user manual for the Axis Communications M3037-PVE 5MP Day/Night Dome 0548-001.

The user manual lists all of the functions of the Axis Communications M3037-PVE 5MP Day/Night Dome 0548-001, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications M3037-PVE 5MP Day/Night Dome 0548-001. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Wired IP Cameras.
