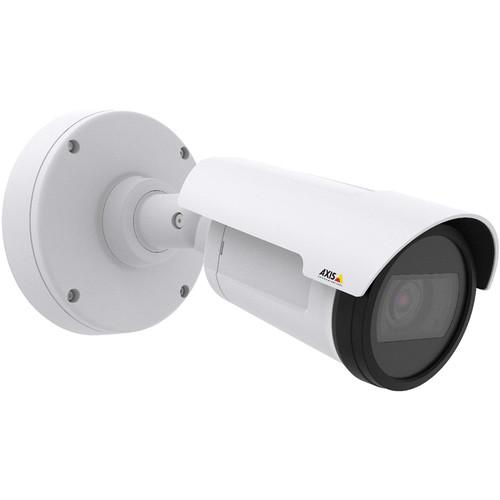

Click to enlarge image
|
We recommend checking out our discussion threads on the Axis Communications P1435-LE 1080p Day/Night IR Outdoor 0777-001,
which address similar problems with connecting and setting up Wired IP Cameras Axis Communications.
|
User manual for the Axis Communications P1435-LE 1080p Day/Night IR Outdoor 0777-001
The user manual for the Axis Communications P1435-LE 1080p Day/Night IR Outdoor 0777-001 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.
View and record footage of an outdoor area using the P1435-LE 1080p Day/Night IR Outdoor Bullet Camera from Axis. This camera features a 1/2.8" progressive-scan CMOS sensor and video resolution of up to 1080p at 50/60 fps. A 3-10.5mm varifocal lens provides a 95° to 35° horizontal angle of view and a 51° to 20° vertical angle of view. IR LEDs provide night vision up to a distance of 100', and OptimizedIR technology enables high-quality, low-noise video even when the environment is completely dark. An integrated microSD port allows for edge storage, and footage can be compressed into H.264 or MJPEG formatting for a minimum of storage and bandwidth usage. Furthermore, Zipstream technology ensures that image details receive enough attention and unnecessary data is removed from footage, reducing bandwidth and storage requirements.
Additional features such as wide dynamic range, P-iris control, and Lightfinder technology enable the capture of high-quality images in dark and low-light situations. Corridor formatting allows you to use the camera in a portrait-style position for capturing long hallways or high ceilings. Using the pixel counter, the installer can input the field of view and distance from an intended subject to check whether the camera will accomplish a set goal at a particular resolution. Additionally, you can remotely zoom and focus the lens to conveniently make setup adjustments.
The camera is housed in a light, compact casing that is IP66-rated for outdoor applications. It can be either wall- or ceiling-mounted, and the package includes a mounting bracket and drill template for easy installation. Power over Ethernet enables you to set up the camera with a minimal number of cables, and a 4-pin terminal block provides an input and output to accommodate an alarm panel or to control a relay.
|
If you own a Axis Communications wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Axis Communications P1435-LE 1080p Day/Night IR Outdoor 0777-001 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Axis Communications P1435-LE 1080p Day/Night IR Outdoor 0777-001:
| Image Sensor | 1/2.8" Progressive-scan CMOS | | Focal Length | 3-10.5mm varifocal | | Aperture | f/1.4 | | Field of View | Horizontal: 95° to 35°
Vertical: 51° to 20° | | Lens | Autofocus, remote focus and zoom, P-Iris control, IR corrected | | Day and Night | Automatically removable IR cut filter
IR Illumination: OptimizedIR, highly efficient LEDs with adjustable intensity and angle of illumination
Illumination Distance: Range up to 100' / 30 m | | Minimum Illumination | Color: 0.12 lux @ f/1.4 (30 fps)
Color: 0.24 lux @ f/1.4 (60 fps)
B/W: 0 lux with IR illumination on | | Shutter Time | 1/66500 to 2 seconds | | Resolution | 1080p 25/30 fps (WDR): 1920 x 1080 to 160 x 90
1080p 50/60 fps (no WDR): 1920 x 1080 to 160 x 90
Meets relevant parts of SMPTE 274M (1080p) | | Frame Rate | Up to 50/60 fps in all resolutions | | Compression | H.264 main and baseline profiles (MPEG-4 Part 10/AVC)
MJPEG | | Video Streaming | Multiple, individually configurable streams in H.264 and MJPEG, controllable frame rate and bandwidth, WBR/MBR H.264
Axis Zipstream technology in H.264 | | Image Settings | Manual shutter time, compression, color, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, test and image overlay, privacy masks, IR illumination
Wide Dynamic Range – Forensic Capture: Up to 120 dB depending on scene, mirroring of images
Rotation: 0°, 90°, 270° | | Pan/Tilt/Zoom | Digital | | Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log | | Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH | | Application Programming Interface | Open API for software integration, including VAPIX and AXIS Camera Application Platform
Axis Video Hosting System (AVHS) with One-click connection ONVIF Profile S | | Analytics | Video motion detection
Support for AXIS Camera Application Platform enabling installation of AXIS Video Motion Detection 3, AXIS Cross Line Detection, AXIS Digital Autotracking and third-party applications | | Event Trigger | Detectors: Day/Night mode, live stream accessed tampering
Hardware: Network, temperature
Input Signal: Manual trigger, virtual inputs
Storage: Disruption, recording
System: System ready
Time: Use schedule, recurrences | | Event Action | File upload: FTP, SFTP, HTTP, HTTPS, network share and email
Notification: email, HTTP, HTTPS and TCP and SNMP trap
External output activation
Video recording to edge storage
Pre- and post-alarm video buffering
WDR mode, IR illumination
PTZ control, overlay text | | Built-In Installation Aids | Pixel counter, remote zoom (3.5x optical), remote focus | | Data Streaming | Event data | | Memory | 512 MB RAM, 256 MB flash | | Power | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3
Typical: 4.6 W, Max: 11 W | | Connectors | RJ45 10BASE-T/100BASE-TX PoE
I/O: 4-pin terminal block for 1 alarm input and 1 output | | Edge Storage | Support for microSD/mircoSDHC/microSDXC card
Support for recording to dedicated network-attached storage (NAS) | | Video Management Software | AXIS Camera Companion, AXIS Camera Station, Video management software from Axis' Application Development Partners | | Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese | | Approvals | EN 61000-6-1, EN 61000-6-2, EN 50121-4, IEC 62236-4, EN 55024, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC/EN 60529 IP66, NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-27, EN 55022 Class B, EN 62471 | | Operating Conditions | Temperature with IR LEDs On: -22 to 131°F / -30 to 55°C
Temperature with IR LEDs Off: -22 to 140°F / -30 to 60°C
Humidity: 10 to 100% RH (condensing) | | Storage Conditions | Temperature: -40 to 149°F / -40 to 65°C | | Housing | IP66, NEMA 4X-rated casing (polyester polycarbonate blend) | | Diameter | 5.2 x 10.2" / 132.0 x 260.0 mm | | Weight | With weather shield: 28.2 oz / 800.0 g | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 12.7 x 6.9 x 6.8" | |
