User manual for the Axis Communications P7214 4-Channel Surveillance Kit 0417-044

The user manual for the Axis Communications P7214 4-Channel Surveillance Kit 0417-044 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.

The Axis Communications P7214 4-Channel Surveillance Kit is a surveillance solution designed for simultaneously monitoring multiple areas in your home or office. This kit consists of the Axis P7214 4-channel Video Encoder and Axis camera station software with a 16-base license.

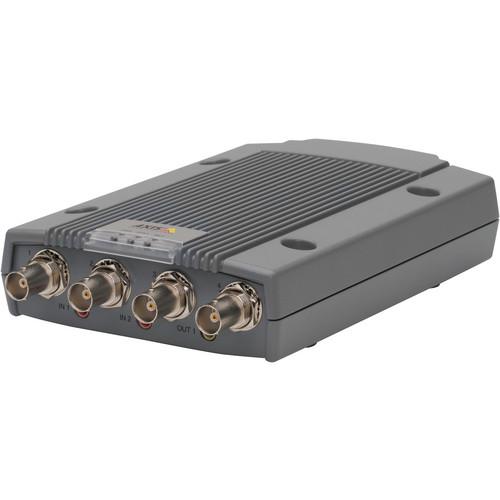

The P7214 Video Encoder compresses audio and video signals from over 4 analog surveillance cameras into digital data for transmission over the network. This encoder supports H.264 and MJPEG formats, which help in compressing high-quality audio and video signal without compromising on clarity. Furthermore, the quad view mode feature allows you to view the live recording of 4 different places simultaneously on the monitor.

You can control compatible PTZ cameras via RS-422 and RS-485 cables. All the recorded footage can be easily stored on the built-in microSD/SDHC memory card. The encoder’s power over Ethernet capability allows it to be powered via the same Ethernet cable used for data transmission.

You can remotely control up to 100 cameras using the included Axis Camera Station software. Furthermore, you can record, playback, and export the recorded videos in H.264, MPEG-4, and MJPEG formats. This camera station offers compatibility with a wide range of Axis network devices.
If you own a Axis Communications video encoders & decoders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications P7214 4-Channel Surveillance Kit 0417-044 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Axis Communications P7214 4-Channel Surveillance Kit 0417-044:
Specifications
    Encoder
    Video Encoder
    Pan/Tilt/Zoom Wide range of analog PTZ cameras supported
    100 presets/camera, guard tour, PTZ control queue
    Supports Windows compatible joysticks
    Video
    Video Compression H.264 (MPEG-4 Part 10/AVC) Baseline Profile (BP) and Main Profile (MP), Motion JPEG
    Resolution 176 x 120 to 720 x 576
    176 x 120 to 1536 x 1152 for quad view
    Frame Rate H.264: 15 fps in quad view, 30 fps in all other resolutions
    Motion JPEG: 30 fps in all resolutions
    Video Streaming Multi-stream H.264 and Motion JPEG: 1 H.264 and 1 JPEG stream on each channel (8 streams in total) in full framerate individually configured streams in maximum resolution at 30 fps; more streams if identical or limited in frame rate/resolution. Controllable frame rate and bandwidth VBR/CBR H.264
    Image Settings Compression, color, brightness, contrast
    Rotation: 90°, 180°, 270°
    Aspect ratio correction
    Mirroring of images
    Text and image overlay
    Privacy mask
    Enhanced deinterlace filter
    Video termination
    Anti-aliasing
    Temporal noise filtering
    Audio
    Audio Streaming Two-way, full duplex and half duplex (mic/line input 1/line output)
    Two-way, full duplex and half duplex (mic/line input 2/line output)
    Audio Compression In: AAC-LC 8 or 16 kHz 8-64 kbit/s G.711 μ-law PCM 8 kHz 64 kbit/s G.726 ADPCM 8 kHz 32 kbit/s or 24 kbit/s
    Out: G.711 μ-law PCM 8 kHz 64 kbit/s μ-law PCM 16 kHz 128 kbit/s G.726 ADPCM 8 kHz 32 kbit/s or 24 kbit/s
    Audio Input/Output Two external microphone or line inputs and one line output
    Network
    Security Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
    Supported Protocols IPv4/v6, HTTP, HTTPS, QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
    System Integration
    Application Programming Interface Open API for software integration, including VAPIX
    Includes the ONVIF specification
    Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection
    Intelligent Video Video motion detection, active tampering alarm
    Alarm Triggers Audio detection
    Alarm Events File upload via FTP, HTTP and email
    Notification via email, HTTP and TCP
    PTZ preset
    External output activation
    Play audio clip
    Pre and post-alarm video buffering
    General
    Casing Standalone
    Processor & Memory ARTPEC-4, 512 MB RAM, 128 MB Flash
    Power 8-20 VDC, maximum 8 W; Power over Ethernet IEEE 802.3af Class 3, AXIS PS-K power supply
    Connectors 4 x analog composite video inputs (BNC)
    2 x mono microphone or line inputs, 6Vpp maximum(3.5 mm jacks)
    1 x mono audio output, 2Vpp maximum at 1 kohm (3.5 mm jack)
    1 x 10BASE-T/100BASE-TX Ethernet
    4 x Configurable external inputs/outputs (terminal block)
    1 x RS-485/422 full duplex (terminal block)
    1 x DC input terminal block
    Local Storage 1 x microSD / SDHC
    Operating Conditions Temperature: 32 to 122°F (0 to 50°C)
    Humidity 20 to 80% RH (non-condensing)
    Approvals EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN61000-6-1, EN61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, KCC Class B, UL/IEC/EN 60950-1
    Dimensions (HxWxD) 1.5 x 4.3 x 6.77" (38 x 109 x 172 mm)
    Weight 1.26 lb (570 g)
    Software
    System Requirements AXIS Camera Station Client: Windows 7 Professional, Windows Vista Business, Windows XP Professional
    CPU: Intel Pentium 4, 2 GHz (Intel Core i7 recommended for larger systems)
    RAM: 1 GB (4 GB recommended for larger systems)
    Hard drive: 1 GB free memory
    Screen: 1024 x 768
    Graphics card with DirectX 9.0c; onboard video memory of 256 MB
    Microsoft .NET runtime environment (included in installation package)
    AXIS Camera Station Server: Windows 7 Professional, Windows Vista Business, Windows XP Professional, Windows Server 2008 R2, Windows Server 2008, Windows Server 2003 (64-bit versions recommended for larger systems)
    CPU: Intel Pentium 4, 2 GHz (Intel Xeon recommended for larger systems)
    RAM: 1 GB (8 GB recommended for larger systems)
    Microsoft .NET runtime environment (included in installation package)
