User manual for the Axis Communications Q1765-LE Day/Night Outdoor HD 0509-001
The user manual for the Axis Communications Q1765-LE Day/Night Outdoor HD 0509-001 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

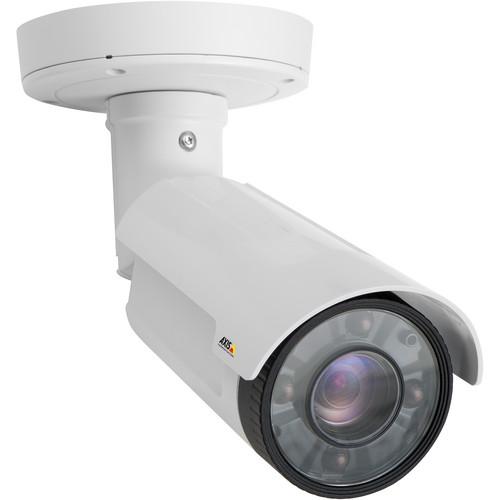

The white Q1765-LE Day/Night Outdoor HD Network Bullet Camera from Axis Communications can be used stand-alone or as part of a networked surveillance system connected to an NAS with surveillance software or dedicated NVR. It transmits in up to 1920 x 1080 resolution with a H.264 compression for full HD video, making it ideal for use with license plate or facial recognition systems. It is equipped with an 18x optical zoom and a 12x digital zoom. Utilizing the digital PTZ feature, it can be programmed to zoom in on specific areas at regular intervals providing additional security to sensitive areas. There can be multiple zones programmed, and each stream can be transmitted and viewed simultaneously.
If you own a Axis Communications wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Axis Communications Q1765-LE Day/Night Outdoor HD 0509-001 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Axis Communications Q1765-LE Day/Night Outdoor HD 0509-001:
Specifications
Image Sensor
1/2.9" Progressive Scan RGB CMOS
Lens
Focal Length: 4.7 to 84.6 mm; F/1.6 to 2.8; Autofocus; Automatic day & night Horizontal angle of view: 59° to 4°
Minimum Illumination
Color: 0.5 lux at 30 IRE F1.6 B&W: 0.04 lux at 30 IRE F1.6 (0 lux with IR illumination on)
Shutter Time
1/28,000 sec to 2 sec
Video Compression
H.264 Motion JPEG
Resolutions
1920 x 1080 to 320 x 180
Frame Rate
Up to 30/25 fps (60/50 Hz)
Video Streaming
Multiple, individually configurable streams in H.264 and motion JPEG Controllable frame rate and bandwidth VBR/CBR H.264
IP66 and NEMA 4X-rated, water-resistant and dust-proof
Memory
256 MB RAM, 128 MB Flash
Power
Power-over-Ethernet (PoE) IEEE 802.3af; Maximum: 12.95 W 8 to 28 VDC; Maximum: 15.2 W 20 to 24 VAC; Maximum: 22.0 W
Network Connection
RJ45 10Base-T/100Base-TX PoE
Edge Storage
MicroSD(HC/XC), up to 64 GB
Approvals
EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 55024, EN 50121-4, FCC Part 15 Subpart B Class A, ICES-003 Class B, VCCI Class A, C-tick AS/NZS CISPR 22, KCC KN22 Class A, KN24, IEC/EN/UL 60950-22
Operating Conditions
-40 to 122° F (-40 to 50° C)
Dimensions
Camera: 8.6 x 4.1" (21.9 x 10.5 cm) Mount: 4.9 x 5.7" (12.5 x 14.6 cm)
