User manual Axis Communications Q7401 Video Encoder (10-Pack) 0288-021

Operating instructions and pdf manual for use - Axis Communications Q7401 Video Encoder (10-Pack) 0288-021 User manual, User manual Axis Communications Q7401 Video Encoder (10-Pack) 0288-021, Axis, Communications, Q7401, Video, Encoder, 10-Pack, 02


User manual for Axis Communications Q7401 Video Encoder (10-Pack) 0288-021

Axis Communications Q7401 Video Encoder (10-Pack) 0288-021
  • Manufacturer: Axis Communications
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders
  • Safety instructions
  • Startup and operation of the video encoders & decoders
  • Tips for setting up your Axis Communications
  • Settings and expert assistance
  • Contact Axis Communications service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Axis Communications Q7401 Video Encoder (10-Pack) 0288-021, which address similar problems with connecting and setting up Video Encoders & Decoders Axis Communications.



User manual for the Axis Communications Q7401 Video Encoder (10-Pack) 0288-021

The user manual for the Axis Communications Q7401 Video Encoder (10-Pack) 0288-021 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.

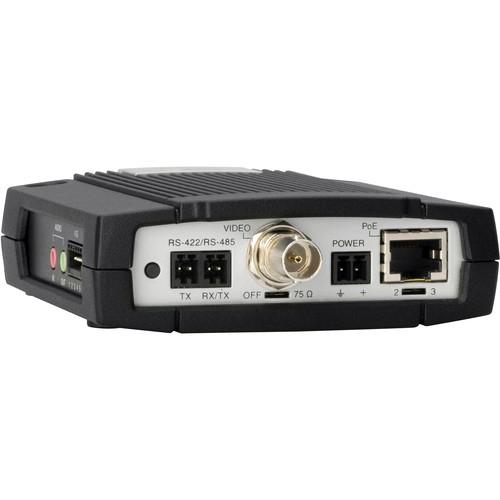

AXIS Q7401 Video Encoder is a high performance, single channel solution that integrates an analog camera into an IP-based video surveillance system. With outstanding video processing capabilities, AXIS Q7401 delivers superb video quality and significant savings in bandwidth and storage.
AXIS Q7401 offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. AXIS Q7401 can deliver multiple, individually configurable video streams simultaneously at full frame rate in all resolutions up to D1 (720 x 480 in NTSC, 720 x 576 in PAL). This means that several video streams can be configured with different compression formats, resolutions and frame rates for different needs.
If you own a Axis Communications video encoders & decoders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications Q7401 Video Encoder (10-Pack) 0288-021 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Axis Communications Q7401 Video Encoder (10-Pack) 0288-021:
Specifications
General
Packaged Quantity 10 (specifications are for single item)
Device Type Video server
Video Channels 1
Audio Channels 1
TV System NTSC/PAL
Image Resolution 720x576 (PAL), 176x112 (NTSC)
Compression Format MJPEG, G.711, G.726, H.264, AAC
Package Content Manual, external power adapter, software, video server, mounting kit, connector kit
Software Included (Y) Drivers & Utilities
Compliant Standards C-Tick, VCCI Class B ITE, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, FCC Part 15 B, EN 61000-6-2, EN 60950-1
Warranty 3 years
Video Server
Frame Rate 25 fps (PAL), 30 fps (NTSC)
CPU ARTPEC-3
RAM 128 MB
Flash Memory 128 MB
Features Motion detection, PTZ support, PAL/NTSC auto-sensing input, SD memory card slot
Networking
DDNS Support Yes
Web Server Yes
Network Interfaces Ethernet 10Base-T/100Base-TX
Supported Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, HTTP over SSL, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, Bonjour, RTCP, IGMP
Features Power over Ethernet (PoE), E-mail alert, IP address filtering
Connections
Video Input Ports BNC x 1
Audio Input Ports Mini-phone 3.5 mm x 1
Audio Output Ports Mini-phone 3.5 mm x 1
Alarm Ports Alarm input x 4, alarm output x 4
Camera Control Interface (PTZ) RS-422/485
Network Port 10/100Base-T
Dimensions & Weight
Width 3.9 in
Depth 4.6 in
Height 1.3 in
Weight 11.82 oz
Environmental Parameters
Min Operating Temperature 32
The user manual for the Axis Communications Q7401 Video Encoder (10-Pack) 0288-021 can be downloaded in .pdf format if it did not come with your new video encoders & decoders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications video encoders & decoderss, where you can use our link to download the user manual for the Axis Communications Q7401 Video Encoder (10-Pack) 0288-021.

The user manual lists all of the functions of the Axis Communications Q7401 Video Encoder (10-Pack) 0288-021, all the basic and advanced features and tells you how to use the video encoders & decoders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications Q7401 Video Encoder (10-Pack) 0288-021. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.
